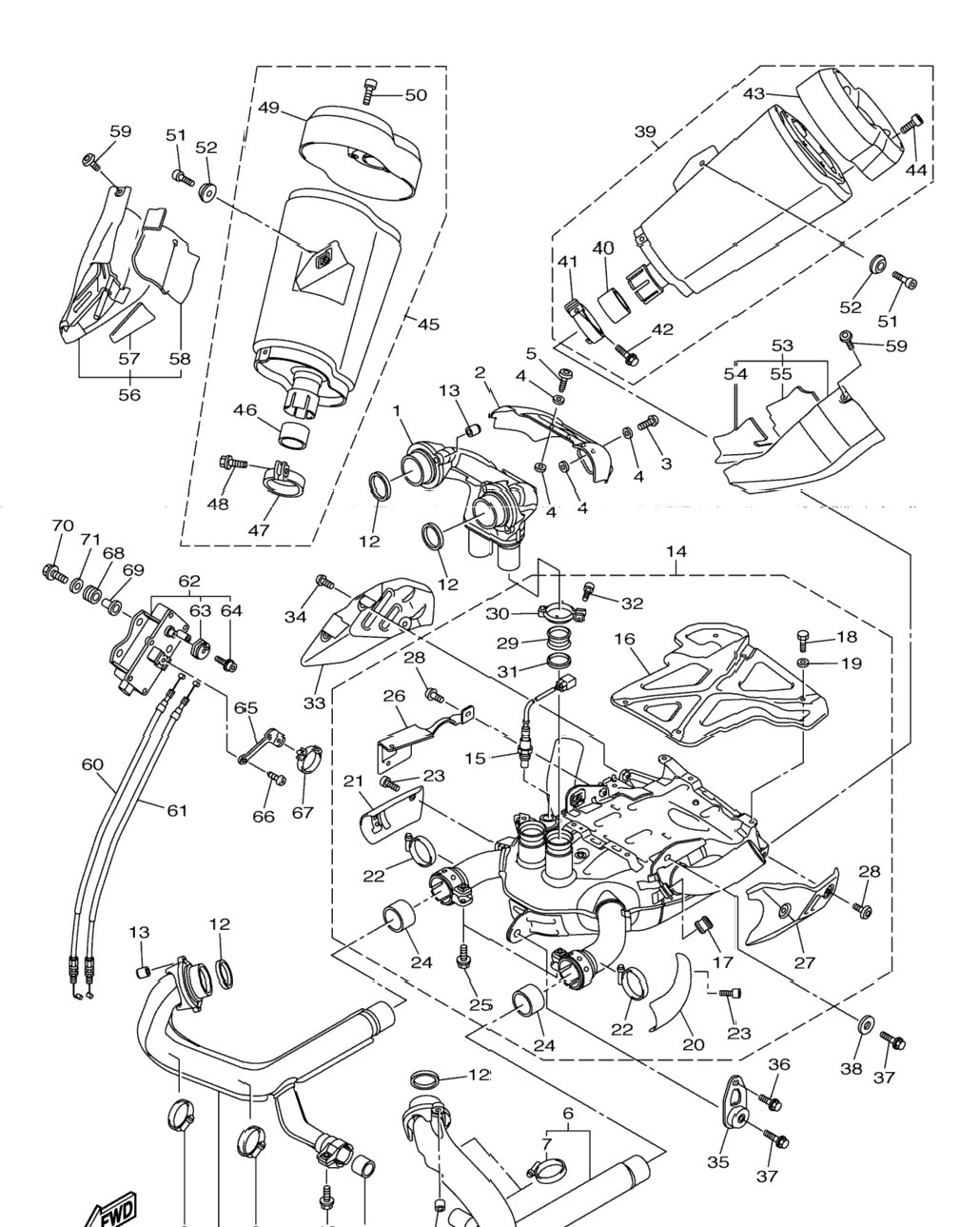

| 1 | 2S3-14602-01-00 | Exhaust Pipe Comp | 1 шт. | — | |
|
| 2 | 2S3-14624-00-00 | Cover, Exhaust | 1 шт. | — | |
|
| 3 | 92014-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 4 | 90201-05015-00 | Washer, Plate | 8 шт. | — | |
|
| 5 | 90111-06128-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 6 | 2S3-14620-01-00 | Exhaust Pipe Assy 2 | 1 шт. | — | |
|
| 7 | 90450-45001-00 | . .Hose Clamp Assy | 2 шт. | — | |
|
| 8 | 2S3-14650-01-00 | Exhaust Pipe Assy 4 | 1 шт. | — | |
|
| 9 | 90450-45001-00 | . .Hose Clamp Assy | 2 шт. | — | |
|
| 10 | 95024-08020-00 | . Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 11 | 2S3-14714-00-00 | . .Gasket, Muffler | 1 шт. | — | |
|
| 12 | 2S3-14613-00-00 | Gasket, Exhaust Pipe | 4 шт. | — | |
|
| 13 | 90179-08442-00 | Nut | 8 шт. | — | |
|
| 14 | 2S3-14701-00-00 | Muffler Comp | 1 шт. | — | |
|
| 15 | 2S3-8592A-00-00 | . .Sensor, Oxygen | 1 шт. | — | |
|
| 16 | 2S3-1479H-00-00 | . .Cover, 1 | 1 шт. | — | |
|
| 17 | 2S3-14737-00-00 | . .Damper, Muffler | 2 шт. | — | |
|
| 18 | 97013-06012-00 | . Bolt | 5 шт. | — | |
|
| 19 | 92903-06600-00 | . Washer, Plate | 5 шт. | — | |
|
| 20 | 2S3-1479J-00-00 | . .Cover 2 | 1 шт. | — | |
|
| 21 | 2S3-1479K-00-00 | . .Cover, 3 | 1 шт. | — | |
|
| 22 | 90450-45001-00 | . .Hose Clamp Assy | 2 шт. | — | |
|
| 23 | 91314-06010-00 | . Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 24 | 5YU-14755-10-00 | . .Gasket, Silencer | 2 шт. | — | |
|
| 25 | 95024-08040-00 | . . Bolt, Flange Small Head) | 2 шт. | — | |
|
| 26 | 2S3-1479L-00-00 | . .Cover 4 | 1 шт. | — | |
|
| 27 | 2S3-14718-00-00 | . .Protector, Muffler 1 | 1 шт. | — | |
|
| 28 | 90111-06101-00 | . Bolt, Hex. Socket Button | 5 шт. | — | |
|
| 29 | 2S3-14618-00-00 | . .Ring, Stopper | 2 шт. | — | |
|
| 30 | 2S3-14725-00-00 | . .Band, Muffler | 2 шт. | — | |
|
| 31 | 2S3-14623-00-00 | . .Gasket, Exhaust Pipe | 2 шт. | — | |
|
| 32 | 90110-06344-00 | . .Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 33 | 2S3-14826-00-00 | Protector, Exhaust | 1 шт. | — | |
|
| 34 | 90111-06101-00 | Bolt, Hex. Socket Button | 3 шт. | — | |
|
| 35 | 2S3-2144F-00-00 | Stay, Muffler 3 | 1 шт. | — | |
|
| 36 | 95024-08020-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 37 | 95024-08035-00 | . .Bolt, Flange (Small Head) | 3 шт. | — | |
|
| 38 | 90201-087G2-00 | Washer, Plate | 2 шт. | — | |
|
| 39 | 2S3-14710-00-00 | Muffler Assy 1 | 1 шт. | — | |
|
| 40 | 5VY-14714-00-00 | . Gasket, Muffler | 1 шт. | — | |
|
| 41 | 3D8-14715-00-00 | . .Band, Muffler | 1 шт. | — | |
|
| 42 | 95024-08035-00 | . . .Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 43 | 2S3-14787-00-00 | . .Cap, Silencer | 1 шт. | — | |
|
| 44 | 90110-06274-00 | . Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 45 | 2S3-14720-00-00 | Muffler Assy 2 | 1 шт. | — | |
|
| 46 | 5VY-14714-00-00 | . Gasket, Muffler | 1 шт. | — | |
|
| 47 | 5VY-14715-00-00 | . .Band, Muffler | 1 шт. | — | |
|
| 48 | 95024-08035-00 | . . .Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 49 | 2S3-14787-00-00 | . .Cap, Silencer | 1 шт. | — | |
|
| 50 | 90110-06274-00 | . Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 51 | 91314-08040-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 52 | 2S3-27417-00-00 | Washer, Footrest | 2 шт. | — | |
|
| 53 | 2S3-1473A-00-00 | Body, 3-1 | 1 шт. | — | |
|
| 54 | 2S3-1475P-00-00 | . .Seat | 1 шт. | — | |
|
| 55 | 2S3-1476P-00-00 | . .Seat | 1 шт. | — | |
|
| 56 | 2S3-1474A-00-00 | Body, 4-1 | 1 шт. | — | |
|
| 57 | 2S3-1477P-00-00 | . .Seat | 1 шт. | — | |
|
| 58 | 2S3-1478P-00-00 | . .Seat | 1 шт. | — | |
|
| 59 | 92014-06010-00 | Bolt, Button Head | 4 шт. | — | |
|
| 60 | 2S3-1133E-00-00 | Cable, Pulley 1 | 1 шт. | — | |
|
| 61 | 2S3-1133F-00-00 | Cable, Pulley 2 | 1 шт. | — | |
|
| 62 | 2C0-85820-00-00 | Servo Motor Assy | 1 шт. | — | |
|
| 63 | 2C0-85821-00-00 | . .Pulley, Drive | 1 шт. | — | |
|
| 64 | 90110-05028-00 | . Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 65 | 2S3-21637-00-00 | Clamp, Wire | 1 шт. | — | |
|
| 66 | 97702-50514-00 | .Screw, Tapping | 2 шт. | — | |
|
| 67 | 90464-07209-00 | Clamp | 1 шт. | — | |
|
| 68 | 90480-14005-00 | .Grommet | 2 шт. | — | |
|
| 69 | 90387-063E6-00 | Collar | 2 шт. | — | |
|
| 70 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 71 | 90201-06M31-00 | Washer, Plate | 2 шт. | — | |
|
