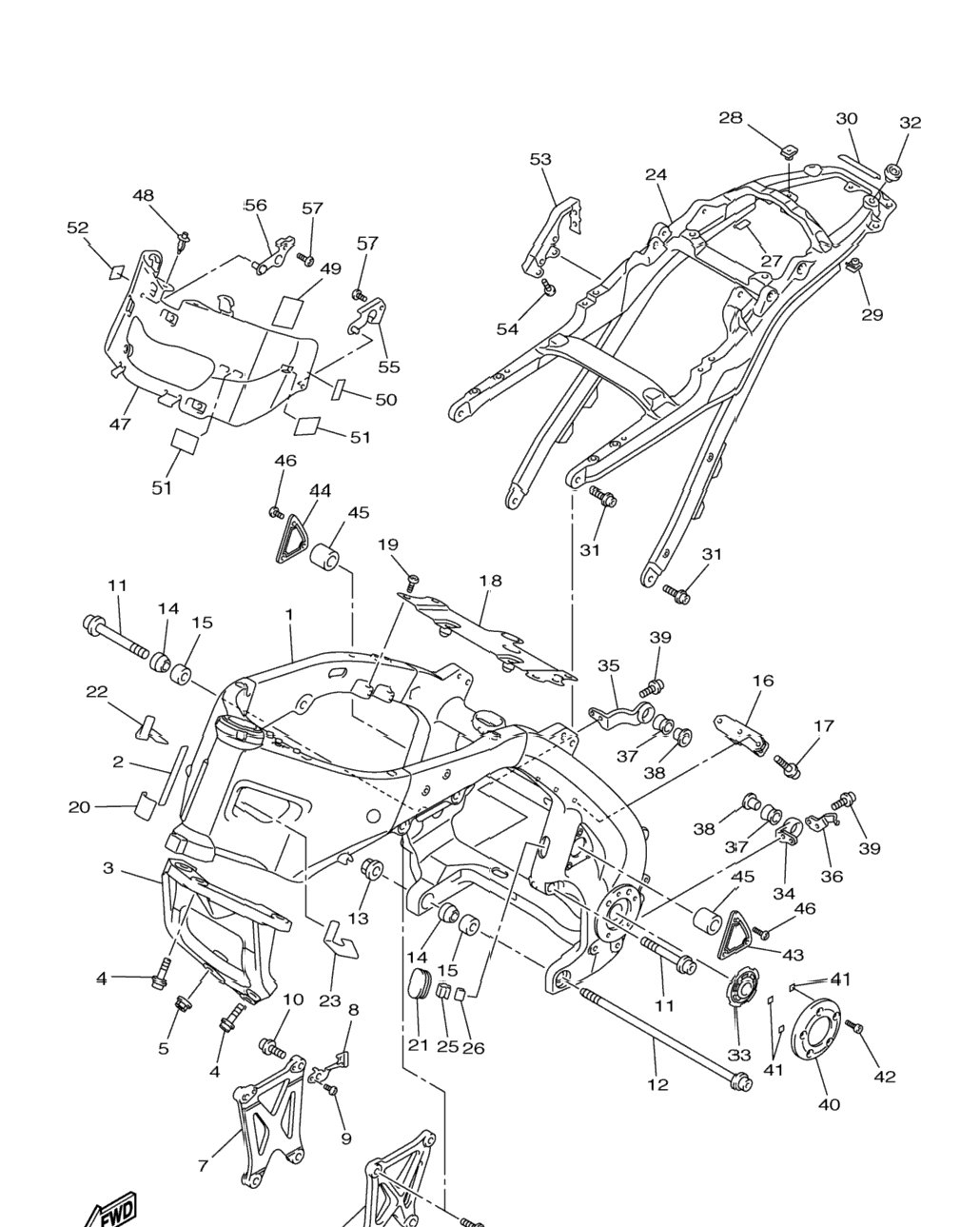

| 1 | 2S3-21110-00-00 | Frame Comp | 1 шт. | — | |
|
| 2 | 3HA-24141-00-00 | Protector, Fuel Tank | 1 шт. | — | |
|
| 3 | 2S3-21315-00-00 | Stay, Engine 1 | 1 шт. | — | |
|
| 4 | 90110-12005-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 5 | 95604-12200-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 6 | 2S3-21316-00-00 | Stay, Engine 2 | 1 шт. | — | |
|
| 7 | 2S3-21317-00-00 | Stay, Engine 3 | 1 шт. | — | |
|
| 8 | 2S3-21396-00-00 | Stay, Coupler | 0 шт. | — | |
|
| 9 | 92014-06010-00 | Bolt, Button Head | 1 шт. | — | |
|
| 10 | 90110-10019-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 11 | 90110-12003-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 12 | 90110-12004-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 13 | 95604-12200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 14 | 2S3-21414-00-00 | Boss, Engine Mount | 2 шт. | — | |
|
| 15 | 2S3-21424-00-00 | Boss, Engine Mount | 2 шт. | — | |
|
| 16 | 2S3-2213E-00-00 | Bracket, Rear Cushion 1 | 0 шт. | — | |
|
| 17 | 90111-10006-00 | Bolt, Hex. Socket Button | 3 шт. | — | |
|
| 18 | 2S3-21131-00-00 | Bracket | 1 шт. | — | |
|
| 19 | 92012-08016-00 | Bolt, Button Head | 4 шт. | — | |
|
| 20 | 2S3-21268-00-00 | Seal | 0 шт. | — | |
|
| 21 | 2S3-2172W-00-00 | Cover | 2 шт. | — | |
|
| 22 | 2S3-21266-00-00 | Sheet 1 | 1 шт. | — | |
|
| 23 | 2S3-21267-00-00 | Sheet 2 | 1 шт. | — | |
|
| 24 | 2S3-21190-00-00 | Rear Frame Comp | 1 шт. | — | |
|
| 25 | 90468-070A0-00 | Clip | 1 шт. | — | |
|
| 26 | 2S3-2111D-00-00 | Seal 1 | 1 шт. | — | |
|
| 27 | 3SP-21732-00-00 | Seal 1 | 1 шт. | — | |
|
| 28 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 29 | 90183-06069-00 | Nut, Spring | 2 шт. | — | |
|
| 30 | 3HA-24141-00-00 | Protector, Fuel Tank | 1 шт. | — | |
|
| 31 | 90109-105G7-00 | Bolt | 4 шт. | — | |
|
| 32 | 22W-24741-00-00 | .Pad, Seat | 2 шт. | — | |
|
| 33 | 2S3-2117N-00-00 | Cover 3 | 2 шт. | — | |
|
| 34 | 2S3-21445-00-00 | Stay, Muffler 1 | 1 шт. | — | |
|
| 35 | 2S3-21446-00-00 | Stay, Muffler 2 | 1 шт. | — | |
|
| 36 | 2S3-27267-00-00 | Guide, Wire | 0 шт. | — | |
|
| 37 | 5VY-14747-00-00 | Damper, Muffler | 2 шт. | — | |
|
| 38 | 90387-08021-00 | Collar | 2 шт. | — | |
|
| 39 | 90110-06396-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 40 | 2S3-2117F-00-00 | Cover | 2 шт. | — | |
|
| 41 | 2TV-21639-00-00 | Damper 2 | 6 шт. | — | |
|
| 42 | 90110-06254-00 | Bolt, Hexagon Socket Head | 10 шт. | — | |
|
| 43 | 2S3-2118E-00-00 | Emblem 1 | 1 шт. | — | |
|
| 44 | 2S3-2118F-00-00 | Emblem 2 | 1 шт. | — | |
|
| 45 | 2S3-2113B-00-00 | Damper | 2 шт. | — | |
|
| 46 | 90149-06145-00 | Screw | 6 шт. | — | |
|
| 47 | 2S3-2121A-00-00 | Panel, 1 | 1 шт. | — | |
|
| 48 | 90269-07008-00 | Rivet | 2 шт. | — | |
|
| 49 | 5JW-2139X-00-00 | .Damper | 2 шт. | — | |
|
| 50 | 2D1-21649-00-00 | Damper | 2 шт. | — | |
|
| 51 | 2AL-84553-00-00 | Damper | 2 шт. | — | |
|
| 52 | 1UF-15379-00-00 | .Seal | 1 шт. | — | |
|
| 53 | 2S3-2164J-00-00 | Stay 4 | 1 шт. | — | |
|
| 54 | 92012-06016-00 | Bolt, Button Head | 2 шт. | — | |
|
| 55 | 2S3-2612K-00-00 | Bracket 2 | 0 шт. | — | |
|
| 56 | 2S3-2612L-00-00 | Bracket 3 | 0 шт. | — | |
|
| 57 | 90111-06085-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
