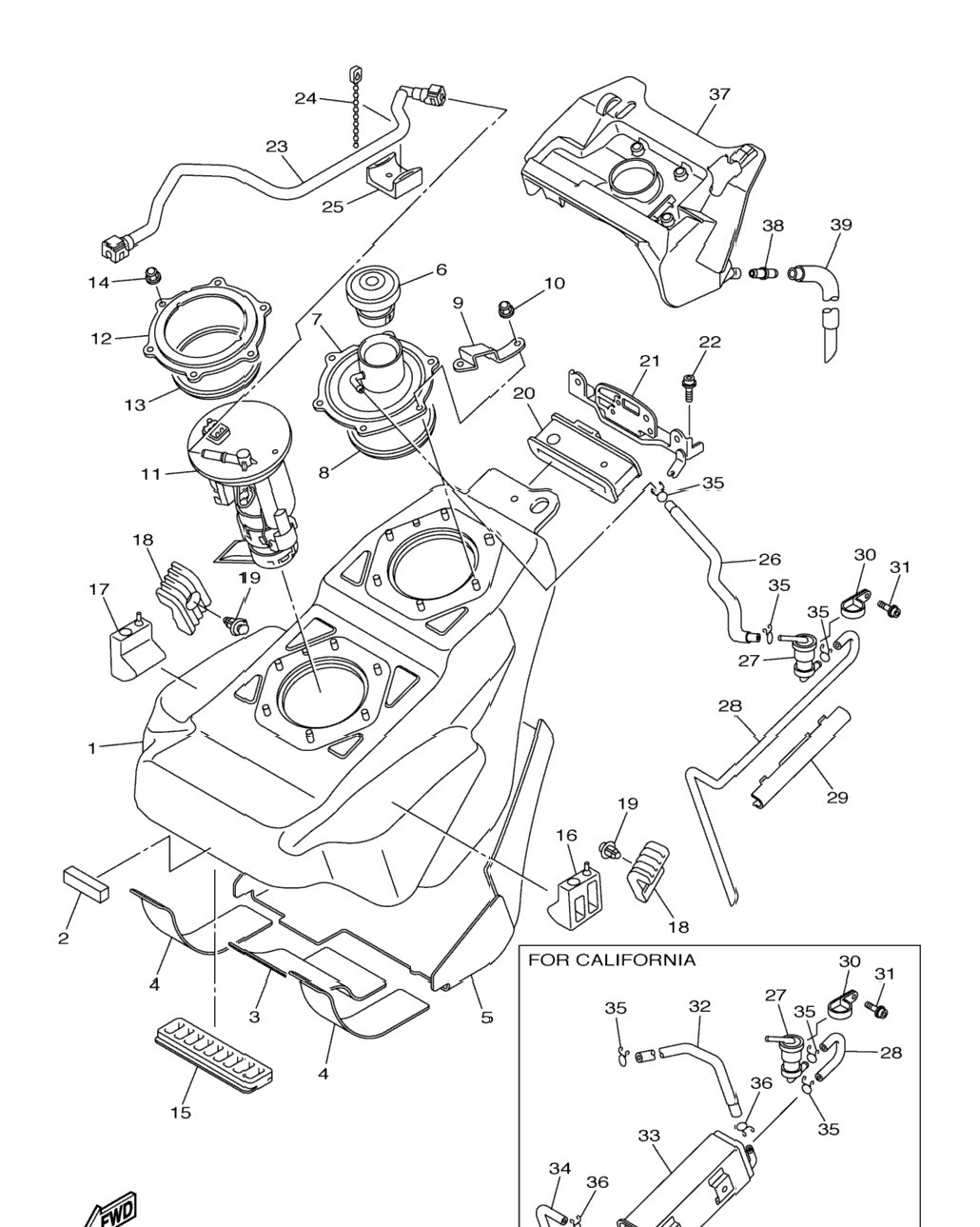

| 1 | 2S3-24110-00-00 | Fuel Tank Comp | 1 шт. | — | |
|
| 2 | 2C0-2139U-00-00 | Damper 2 | 1 шт. | — | |
|
| 3 | 2S3-2414J-00-00 | Damper, Plate 2 | 1 шт. | — | |
|
| 4 | 2S3-2414K-00-00 | Damper, Plate 3 | 2 шт. | — | |
|
| 5 | 2S3-24145-00-00 | Damper, Side Cover | 1 шт. | — | |
|
| 6 | 54K-24602-10-00 | Cap Assy | 1 шт. | — | |
|
| 7 | 2S3-21350-01-00 | Filler Tube Comp | 1 шт. | — | |
|
| 8 | 2S3-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 9 | 2S3-2411F-00-00 | Plate, Fitting | 1 шт. | — | |
|
| 10 | 95307-06800-00 | Nut | 6 шт. | — | |
|
| 11 | 2S3-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 12 | 1S3-24491-10-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 13 | 2S3-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 14 | 95307-06800-00 | Nut | 6 шт. | — | |
|
| 15 | 2S3-24181-00-00 | Damper, Locating 1 | 0 шт. | — | |
|
| 16 | 2S3-24182-00-00 | Damper, Locating 2 | 0 шт. | — | |
|
| 17 | 2S3-24182-10-00 | Damper, Locating 2 | 0 шт. | — | |
|
| 18 | 2S3-24183-00-00 | Damper, Locating 3 | 0 шт. | — | |
|
| 19 | 90269-06081-00 | Rivet | 2 шт. | — | |
|
| 20 | 2S3-24184-00-00 | Damper, Locating 4 | 1 шт. | — | |
|
| 21 | 2S3-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 22 | 90110-06219-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 23 | 2S3-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 24 | 80L-26397-00-00 | Band | 1 шт. | — | |
|
| 25 | 2S3-24144-00-00 | Holder, Damper | 2 шт. | — | |
|
| 26 | 2S3-24311-00-00 | Pipe, Fuel 1 | 0 шт. | — | |
|
| 27 | 2C0-24180-00-00 | Roll Over Valve Assy | 1 шт. | — | |
|
| 28 | 2S3-24312-10-00 | Pipe 2 FOR U49 | 1 шт. | — | |
|
| 29 | 2S3-24312-00-00 | Pipe 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 30 | 2S3-24327-00-00 | Protector, Pipe | 1 шт. | — | |
|
| 31 | 90464-15014-00 | Clamp | 1 шт. | — | |
|
| 32 | 90110-05062-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 33 | 2S3-24313-00-00 | Pipe 3 FOR CALIFORNIA | 0 шт. | — | |
|
| 34 | 2S3-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 35 | 2S3-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 шт. | — | |
|
| 36 | 90467-09002-00 | Clip FOR U49 | 3 шт. | — | |
|
| 37 | 90467-09002-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 38 | 90467-100A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 39 | 2S3-2414A-00-00 | Cover, Filler | 1 шт. | — | |
|
| 40 | 4JP-21753-00-00 | Boss, Connector | 1 шт. | — | |
|
| 41 | 2S3-24318-00-00 | Pipe, Overflow | 1 шт. | — | |
|
