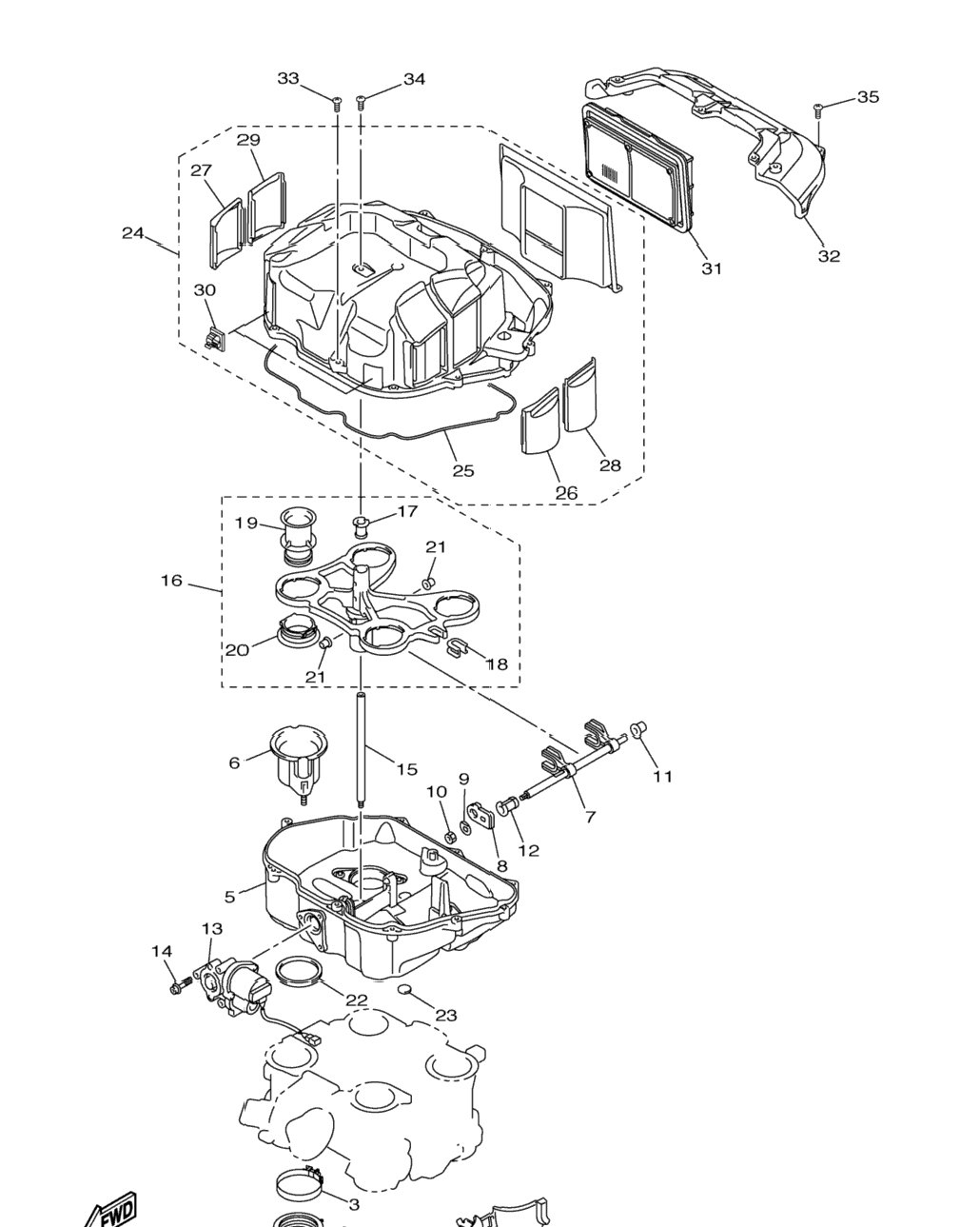

| 1 | 2S3-13586-00-00 | Joint, Carburetor 1 | 4 шт. | — | |
|
| 2 | 91312-06020-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 3 | 2S3-11387-00-00 | Clamp, Hose 1 | 4 шт. | — | |
|
| 4 | 2S3-13564-00-00 | Cover, Manifold | 2 шт. | — | |
|
| 5 | 2S3-14411-00-00 | Case, Air Cleaner 1 | 1 шт. | — | |
|
| 6 | 2S3-1440B-00-00 | Joint Assy | 4 шт. | — | |
|
| 7 | 2S3-1445B-00-00 | Lever 1 | 1 шт. | — | |
|
| 8 | 2S3-14548-00-00 | Pin, Float Arm | 1 шт. | — | |
|
| 9 | 2S3-14475-00-00 | Washer | 1 шт. | — | |
|
| 10 | 95302-06700-00 | Nut, Hexagon | 1 шт. | — | |
|
| 11 | 90381-06002-00 | Bush, Solid | 1 шт. | — | |
|
| 12 | 2S3-1449B-00-00 | Bush, 3 | 1 шт. | — | |
|
| 13 | 2S3-85870-00-00 | Geared Motor Comp. 2 | 1 шт. | — | |
|
| 14 | 90110-05045-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 15 | 2S3-14434-00-00 | Seperator, Oil | 1 шт. | — | |
|
| 16 | 2S3-14459-00-00 | Holder, Guide | 1 шт. | — | |
|
| 17 | 2S3-1447B-00-00 | . .Bush 1 | 1 шт. | — | |
|
| 18 | 2S3-14473-00-00 | . .Guide | 1 шт. | — | |
|
| 19 | 2S3-14479-00-00 | . .Funnel | 4 шт. | — | |
|
| 20 | 2S3-13631-00-00 | . .Seal, Rubber 1 | 4 шт. | — | |
|
| 21 | 90381-08001-00 | . .Bush, Solid | 2 шт. | — | |
|
| 22 | 2S3-14416-00-00 | Gasket, Air Cleaner | 4 шт. | — | |
|
| 23 | 2S3-1442F-00-00 | Protector | 1 шт. | — | |
|
| 24 | 2S3-14408-00-00 | Air Filter Case Comp | 1 шт. | — | |
|
| 25 | 2S3-14452-00-00 | . .Seal | 1 шт. | — | |
|
| 26 | 2S3-1441A-00-00 | . .Cover, Cleaner Case 1 | 1 шт. | — | |
|
| 27 | 2S3-1441E-00-00 | . .Cover, Cleaner Case 2 | 1 шт. | — | |
|
| 28 | 2S3-1442A-00-00 | . .Cover, Cleaner Case 3 | 1 шт. | — | |
|
| 29 | 2S3-1442E-00-00 | . .Cover, Cleaner Case 4 | 1 шт. | — | |
|
| 30 | 90464-14002-00 | . .Clamp | 2 шт. | — | |
|
| 31 | 2S3-14451-00-00 | Element, Air Cleaner | 0 шт. | — | |
|
| 32 | 2S3-14437-00-00 | Duct | 1 шт. | — | |
|
| 33 | 98902-05020-00 | Screw, Bind | 10 шт. | — | |
|
| 34 | 90154-05037-00 | Screw, Binding | 1 шт. | — | |
|
| 35 | 98902-05014-00 | Screw, Bind | 8 шт. | — | |
|
