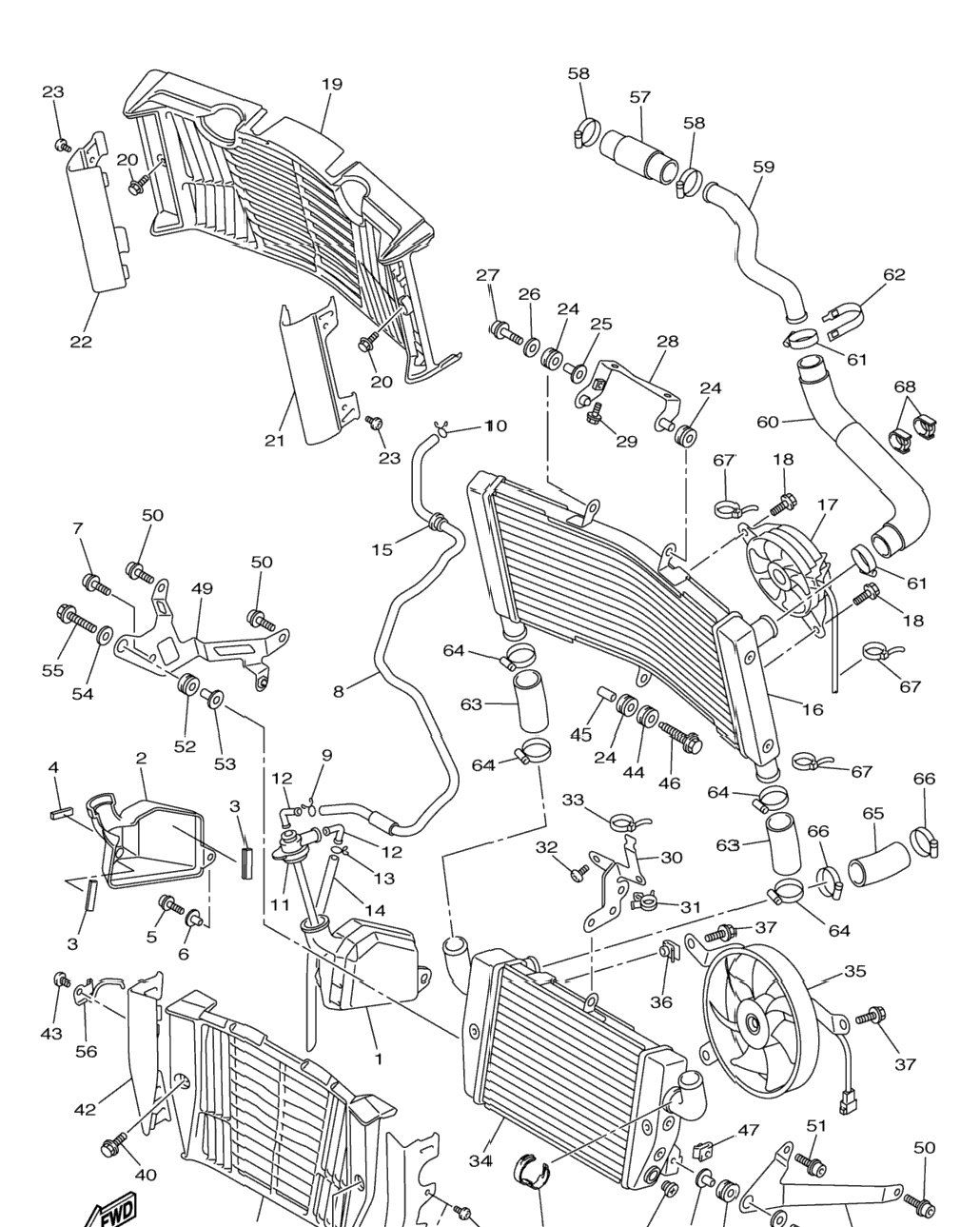

| 1 | 2S3-21871-00-00 | Tank, Recovery | 1 шт. | — | |
|
| 2 | 2S3-2176E-00-00 | Plate | 1 шт. | — | |
|
| 3 | 5SL-21746-00-00 | Damper | 2 шт. | — | |
|
| 4 | 5DM-28371-00-00 | Damper | 1 шт. | — | |
|
| 5 | 91314-06014-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 6 | 90387-06170-00 | Collar | 1 шт. | — | |
|
| 7 | 90110-06302-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 8 | 2S3-21816-00-00 | Pipe 1 | 1 шт. | — | |
|
| 9 | 90467-09006-00 | Clip | 1 шт. | — | |
|
| 10 | 90467-10008-00 | Clip | 1 шт. | — | |
|
| 11 | 2C0-21875-00-00 | Cap | 1 шт. | — | |
|
| 12 | 26H-21828-00-00 | Elbow | 2 шт. | — | |
|
| 13 | 90467-08075-00 | Clip | 1 шт. | — | |
|
| 14 | 90445-08035-00 | Hose | 1 шт. | — | |
|
| 15 | 90480-22263-00 | Grommet | 1 шт. | — | |
|
| 16 | 2S3-12461-09-00 | Radiator Comp | 1 шт. | — | |
|
| 17 | 2S3-12405-10-00 | Blower Assy | 1 шт. | — | |
|
| 18 | 2S3-12675-00-00 | Bolt, Blower Holding | 2 шт. | — | |
|
| 19 | 2S3-1246H-00-00 | Cover 5 | 1 шт. | — | |
|
| 20 | 90119-06109-00 | Bolt, With Washer | 2 шт. | — | |
|
| 21 | 2S3-1246A-00-00 | Cover 1 | 1 шт. | — | |
|
| 22 | 2S3-1246E-00-00 | Cover 2 | 1 шт. | — | |
|
| 23 | 90149-06298-00 | Screw | 4 шт. | — | |
|
| 24 | 90480-15363-00 | Grommet | 3 шт. | — | |
|
| 25 | 90387-06039-00 | Collar | 1 шт. | — | |
|
| 26 | 90201-06071-00 | Washer, Plate | 1 шт. | — | |
|
| 27 | 90109-06031-00 | Bolt | 1 шт. | — | |
|
| 28 | 2S3-2116A-00-00 | Stay 1 | 1 шт. | — | |
|
| 29 | 90110-06302-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 30 | 2S3-12464-00-00 | Stay, Radiator | 1 шт. | — | |
|
| 31 | 90464-18246-00 | Clamp | 1 шт. | — | |
|
| 32 | 90111-06003-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 33 | 90464-16061-00 | Clamp | 1 шт. | — | |
|
| 34 | 2S3-12461-19-00 | Radiator Comp | 1 шт. | — | |
|
| 35 | 2S3-12405-00-00 | Blower Assy | 1 шт. | — | |
|
| 36 | 5SL-12671-00-00 | Nut 1 | 2 шт. | — | |
|
| 37 | 5GJ-12675-00-00 | Bolt, Blower Holding | 3 шт. | — | |
|
| 38 | 5VU-12478-00-00 | .Cock, Drain | 1 шт. | — | |
|
| 39 | 2S3-1246J-00-00 | Cover 6 | 1 шт. | — | |
|
| 40 | 90119-06109-00 | Bolt, With Washer | 2 шт. | — | |
|
| 41 | 2S3-1246F-00-00 | Cover 3 | 1 шт. | — | |
|
| 42 | 2S3-1246G-00-00 | Cover 4 | 1 шт. | — | |
|
| 43 | 90149-06298-00 | Screw | 4 шт. | — | |
|
| 44 | 90480-15363-00 | Grommet | 1 шт. | — | |
|
| 45 | 90387-06086-00 | Collar | 1 шт. | — | |
|
| 46 | 90119-06247-00 | Bolt, With Washer | 1 шт. | — | |
|
| 47 | 5SL-12671-00-00 | Nut 1 | 2 шт. | — | |
|
| 48 | 2S3-2172E-00-00 | Stay, Side Cover 1 | 1 шт. | — | |
|
| 49 | 2S3-2174E-00-00 | Stay, Side Cover 2 | 1 шт. | — | |
|
| 50 | 90110-06245-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 51 | 90110-06396-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 52 | 90480-15363-00 | Grommet | 2 шт. | — | |
|
| 53 | 90387-06039-00 | Collar | 2 шт. | — | |
|
| 54 | 90201-06071-00 | Washer, Plate | 2 шт. | — | |
|
| 55 | 90109-06031-00 | Bolt | 2 шт. | — | |
|
| 56 | 2S3-2171H-00-00 | Guide | 1 шт. | — | |
|
| 57 | 2S3-12552-00-00 | Hose 8 | 1 шт. | — | |
|
| 58 | 90450-38040-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 59 | 2S3-12476-00-00 | Pipe 6 | 1 шт. | — | |
|
| 60 | 2S3-12576-00-00 | Hose 1 | 1 шт. | — | |
|
| 61 | 90450-38040-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 62 | 5GV-1246E-00-00 | Cover 2 | 1 шт. | — | |
|
| 63 | 2S3-12577-00-00 | Hose 2 | 2 шт. | — | |
|
| 64 | 90450-38040-00 | Hose Clamp Assy | 4 шт. | — | |
|
| 65 | 2S3-12578-00-00 | Hose 3 | 1 шт. | — | |
|
| 66 | 90450-38040-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 67 | 90464-16061-00 | Clamp | 2 шт. | — | |
|
| 68 | 90464-12013-00 | Clamp | 2 шт. | — | |
|
| 69 | 90464-28003-00 | Clamp | 1 шт. | — | |
|
