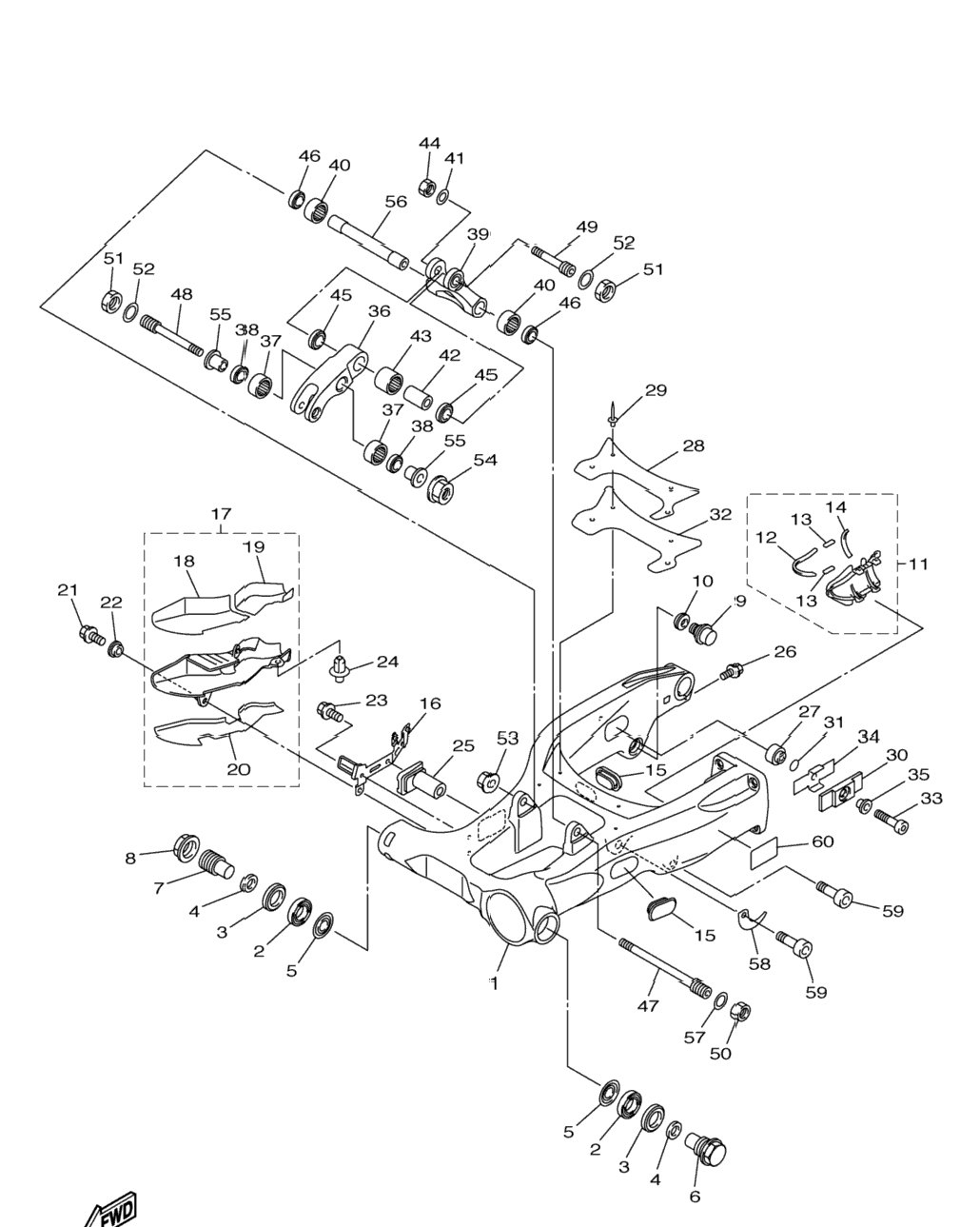

| 1 | 2S3-22110-00-00 | Rear Arm Comp | 1 шт. | — | |
|
| 2 | 93332-00051-00 | Bearing | 2 шт. | — | |
|
| 3 | 93106-28003-00 | Oil Seal | 2 шт. | — | |
|
| 4 | 90387-20031-00 | Collar | 2 шт. | — | |
|
| 5 | 2S3-2211E-00-00 | Panel, Inner 1 | 2 шт. | — | |
|
| 6 | 2S3-22141-00-00 | Shaft, Pivot | 0 шт. | — | |
|
| 7 | 2S3-2214H-00-00 | Shaft, Pivot 2 | 0 шт. | — | |
|
| 8 | 90179-28007-00 | Nut | 1 шт. | — | |
|
| 9 | 2S3-2214E-00-00 | Stopper, Torque | 0 шт. | — | |
|
| 10 | 2S3-22117-00-00 | Cap | 1 шт. | — | |
|
| 11 | 2S3-22250-00-00 | Cover Assy | 1 шт. | — | |
|
| 12 | 2S3-22218-00-00 | . .Damper, Shock Absorber Lower | 0 шт. | — | |
|
| 13 | 2S3-22483-00-00 | . .Damper 1 | 0 шт. | — | |
|
| 14 | 2S3-22492-00-00 | . .Damper 2 | 0 шт. | — | |
|
| 15 | 2S3-22129-00-00 | Cover, Thrust 2 | 2 шт. | — | |
|
| 16 | 2S3-22163-00-00 | Bracket | 0 шт. | — | |
|
| 17 | 2S3-228A0-00-00 | Cover Assy 1 | 1 шт. | — | |
|
| 18 | 2S3-27498-00-00 | . .Seat 1 | 0 шт. | — | |
|
| 19 | 2S3-27499-00-00 | . .Seat 2 | 0 шт. | — | |
|
| 20 | 2S3-2749A-00-00 | . .Seat 3 | 0 шт. | — | |
|
| 21 | 95022-06012-00 | Bolt, Flange | 2 шт. | — | |
|
| 22 | 90387-06200-00 | Collar | 2 шт. | — | |
|
| 23 | 90105-06081-00 | Bolt, Flange | 2 шт. | — | |
|
| 24 | 90269-08066-00 | Rivet | 1 шт. | — | |
|
| 25 | 2S3-2214F-00-00 | Damper 1 | 1 шт. | — | |
|
| 26 | 91314-08035-00 | .Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 27 | 2S3-2214G-00-00 | Damper 2 | 0 шт. | — | |
|
| 28 | 2S3-22168-00-00 | Patch | 0 шт. | — | |
|
| 29 | 90267-40172-00 | Rivet, Blind (4X19) | 4 шт. | — | |
|
| 30 | 2S3-21639-00-00 | Damper 2 | 1 шт. | — | |
|
| 31 | 2S3-22249-00-00 | Plate | 0 шт. | — | |
|
| 32 | 2S3-21649-00-00 | Damper | 0 шт. | — | |
|
| 33 | 91314-08040-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 34 | 2S3-2216B-00-00 | Bracket, 1 | 0 шт. | — | |
|
| 35 | 90387-081N1-00 | Collar | 1 шт. | — | |
|
| 36 | 2S3-2217A-00-00 | Arm, Relay | 1 шт. | — | |
|
| 37 | 93315-31758-00 | Bearing | 2 шт. | — | |
|
| 38 | 93109-17071-00 | Oil Seal | 2 шт. | — | |
|
| 39 | 2S3-2217M-00-00 | Arm 1 | 1 шт. | — | |
|
| 40 | 93315-31758-00 | Bearing | 2 шт. | — | |
|
| 41 | 90201-12050-00 | Washer, Plate | 1 шт. | — | |
|
| 42 | 90387-123M3-00 | Collar | 1 шт. | — | |
|
| 43 | 93315-32053-00 | Bearing | 1 шт. | — | |
|
| 44 | 90185-12119-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 45 | 93109-20001-00 | Oil Seal | 2 шт. | — | |
|
| 46 | 93109-17071-00 | Oil Seal | 2 шт. | — | |
|
| 47 | 90109-10055-00 | Bolt | 1 шт. | — | |
|
| 48 | 90109-12017-00 | Bolt | 1 шт. | — | |
|
| 49 | 90109-12016-00 | Bolt | 1 шт. | — | |
|
| 50 | 90170-16M27-00 | Nut | 1 шт. | — | |
|
| 51 | 90170-18392-00 | Nut | 2 шт. | — | |
|
| 52 | 90201-18025-00 | Washer, Plate | 2 шт. | — | |
|
| 53 | 95607-10200-00 | Nut, U Flange | 1 шт. | — | |
|
| 54 | 95607-12200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 55 | 90387-12044-00 | Collar | 2 шт. | — | |
|
| 56 | 90387-10067-00 | Collar | 1 шт. | — | |
|
| 57 | 90201-16022-00 | Washer, Plate | 1 шт. | — | |
|
| 58 | 2S3-22131-00-00 | Stay, Chaih Case 1 | 1 шт. | — | |
|
| 59 | 91312-06014-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 60 | 2S3-21668-00-00 | Label, Tire | 1 шт. | — | |
|
