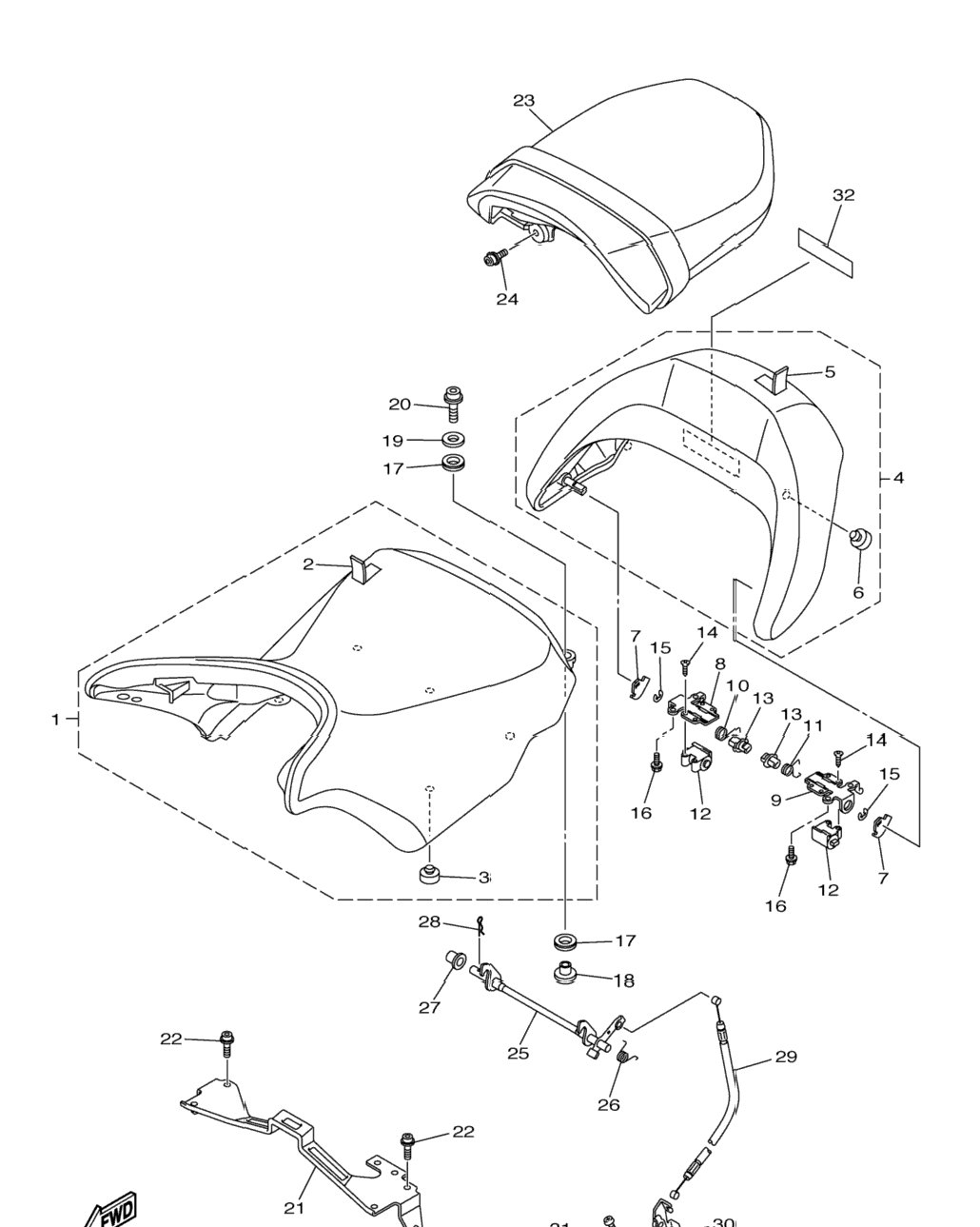

| 1 | 2S3-24710-10-00 | Single Seat Assy | 1 шт. | — | |
|
| 2 | 2S3-2470F-00-00 | . .Seat Cover Comp | 1 шт. | — | |
|
| 3 | 2GH-24741-00-00 | . .Pad, Seat | 5 шт. | — | |
|
| 4 | 2S3-24790-10-00 | Seat Back Assy | 1 шт. | — | |
|
| 5 | 2S3-2477A-10-00 | . .Seat Cover Assy | 1 шт. | — | |
|
| 6 | 2S3-24723-00-00 | . .Damper, Seat | 0 шт. | — | |
|
| 7 | 2S3-24754-00-00 | Hook, Seat | 2 шт. | — | |
|
| 8 | 2S3-2475H-00-00 | Bracket, Seat Lever 1 | 1 шт. | — | |
|
| 9 | 2S3-2475J-00-00 | Bracket, Seat Lever 2 | 1 шт. | — | |
|
| 10 | 2S3-2479A-00-00 | Spring | 1 шт. | — | |
|
| 11 | 2S3-2479E-00-00 | Sprg. 2 | 1 шт. | — | |
|
| 12 | 2S3-24799-00-00 | Rotor Assy | 2 шт. | — | |
|
| 13 | 2S3-24768-00-00 | Stopper | 2 шт. | — | |
|
| 14 | 97702-40510-00 | Screw, Tapping | 4 шт. | — | |
|
| 15 | 93430-04M03-00 | Circlip | 2 шт. | — | |
|
| 16 | 95802-06010-00 | Bolt, Flange | 4 шт. | — | |
|
| 17 | 2S3-24747-00-00 | Damper, Seat | 4 шт. | — | |
|
| 18 | 90387-06175-00 | Collar | 2 шт. | — | |
|
| 19 | 90201-06033-00 | Washer, Plate | 2 шт. | — | |
|
| 20 | 90109-06031-00 | Bolt | 2 шт. | — | |
|
| 21 | 2S3-24748-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 22 | 90110-06219-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 23 | 2S3-24750-11-00 | Tandem Seat Assy | 1 шт. | — | |
|
| 24 | 90110-06302-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 25 | 2S3-24776-01-00 | Lever, Seat | 1 шт. | — | |
|
| 26 | 2S3-24758-00-00 | Spring | 1 шт. | — | |
|
| 27 | 90387-08M19-00 | Collar | 1 шт. | — | |
|
| 28 | 90468-16001-00 | Clip | 1 шт. | — | |
|
| 29 | 5PX-2478E-00-00 | Cable, Seat Lock | 1 шт. | — | |
|
| 30 | 2S3-24760-00-00 | Seat Lever Assy | 1 шт. | — | |
|
| 31 | 97702-50516-00 | Screw, Tapping | 2 шт. | — | |
|
| 32 | 5PW-2415E-11-00 | Label, Caution ENGLISH | 1 шт. | — | |
|
