Transmission

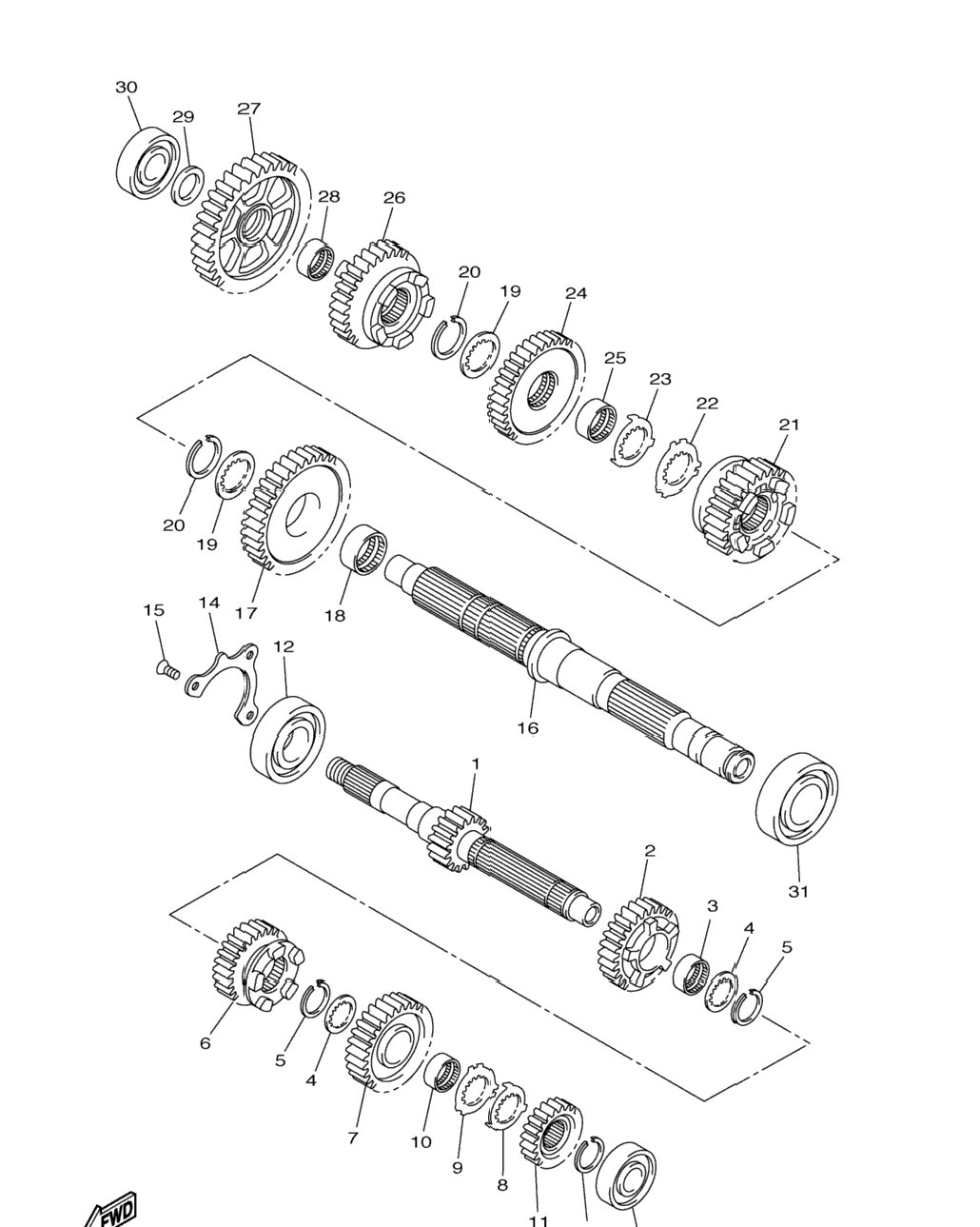

Схема Transmission
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 2S3-17411-00-00 | Axle, Main (16T) | 1 шт. | — | |
|
| 2 | 2S3-17141-00-00 | Gear, 4Th Pinion (26T) | 1 шт. | — | |
|
| 3 | 90387-28003-00 | Collar | 1 шт. | — | |
|
| 4 | 90209-25011-00 | Washer | 2 шт. | — | |
|
| 5 | 93440-28184-00 | Circlip | 3 шт. | — | |
|
| 6 | 2S3-17131-01-00 | Gear, 3Rd Pinion (25T) | 1 шт. | — | |
|
| 7 | 2S3-17151-01-00 | Gear, 5Th Pinion (31T) | 1 шт. | — | |
|
| 8 | 90214-25003-00 | Washer, Claw | 1 шт. | — | |
|
| 9 | 90214-25004-00 | Washer, Claw | 1 шт. | — | |
|
| 10 | 90387-25025-00 | Collar | 1 шт. | — | |
|
| 11 | 2S3-17121-00-00 | Gear, 2Nd Pinion (21T) | 1 шт. | — | |
|
| 12 | 93306-30610-00 | Bearing | 1 шт. | — | |
|
| 13 | 93306-37214-00 | Bearing | 1 шт. | — | |
|
| 14 | 2S3-15383-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 15 | 90151-06024-00 | Screw, Countersunk | 3 шт. | — | |
|
| 16 | 2S3-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 17 | 2S3-17221-00-00 | Gear, 2Nd Wheel (38T) | 1 шт. | — | |
|
| 18 | 90387-3311C-00 | Collar | 1 шт. | — | |
|
| 19 | 90209-30344-00 | Washer | 2 шт. | — | |
|
| 20 | 93440-32063-00 | Circlip | 2 шт. | — | |
|
| 21 | 2S3-17251-01-00 | Gear, 5Th Wheel (29T) | 1 шт. | — | |
|
| 22 | 90209-30345-00 | Washer | 1 шт. | — | |
|
| 23 | 90209-30343-00 | Washer | 1 шт. | — | |
|
| 24 | 2S3-17231-00-00 | Gear, 3Rd Wheel (35T) | 1 шт. | — | |
|
| 25 | 90387-3310V-00 | Collar | 1 шт. | — | |
|
| 26 | 2S3-17241-00-00 | Gear, 4Th Wheel (29T) | 1 шт. | — | |
|
| 27 | 2S3-17211-00-00 | Gear, 1St Wheel (38T) | 1 шт. | — | |
|
| 28 | 90387-25008-00 | Collar | 1 шт. | — | |
|
| 29 | 90201-224L4-00 | Washer, Plate | 1 шт. | — | |
|
| 30 | 93306-37214-00 | Bearing | 1 шт. | — | |
|
| 31 | 93306-20714-00 | Bearing | 1 шт. | — | |
|
