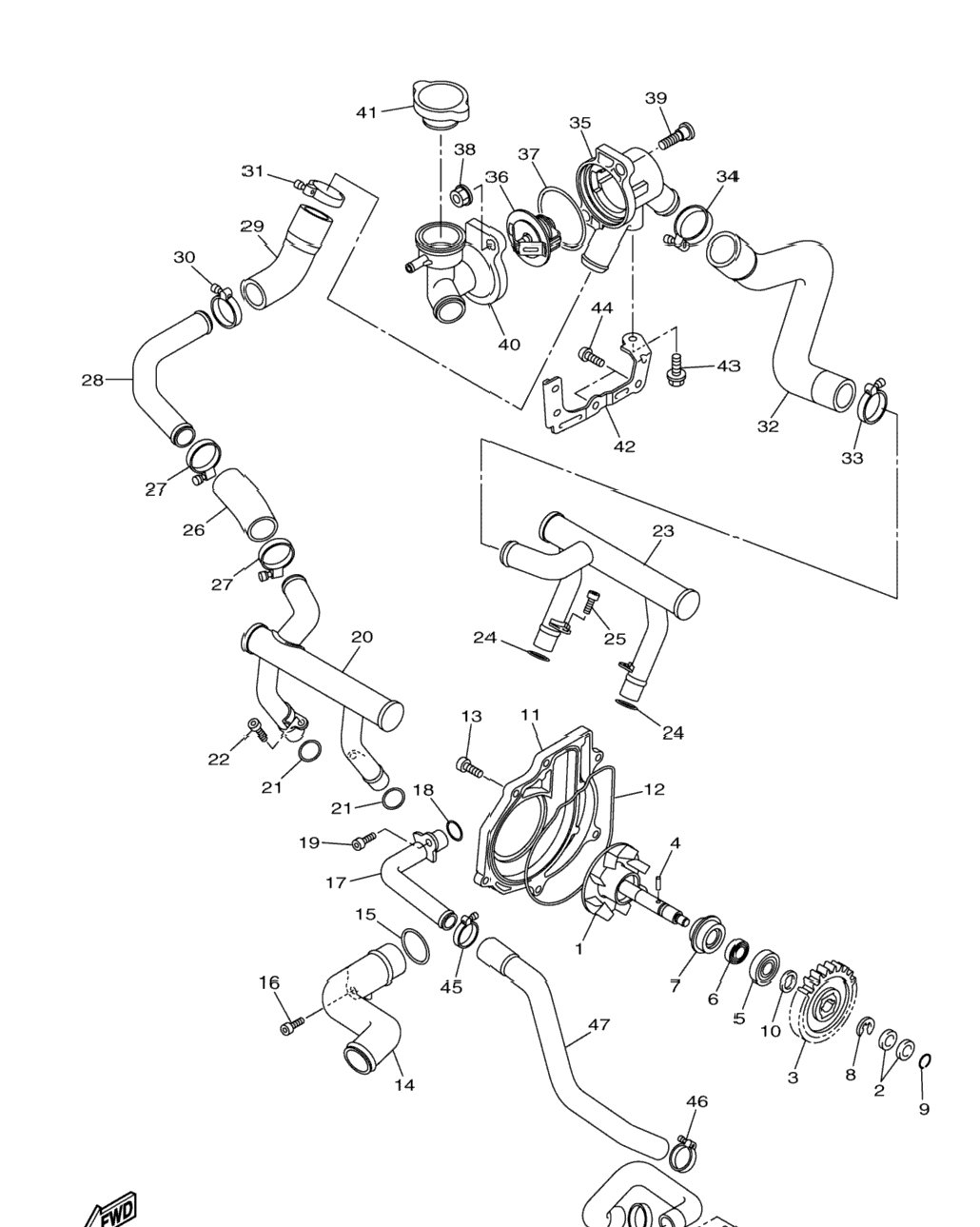

| 1 | 2S3-12450-00-00 | Impeller Shaft Assy | 1 шт. | — | |
|
| 2 | 90201-08067-00 | Washer, Plate | 2 шт. | — | |
|
| 3 | 2S3-12459-00-00 | Gear, Impeller Shaft | 1 шт. | — | |
|
| 4 | 93603-16219-00 | Pin, Dowel | 1 шт. | — | |
|
| 5 | 93306-00105-00 | Bearing | 1 шт. | — | |
|
| 6 | 93102-12106-00 | .Oil Seal (Sd 12-22-5 Hs) | 1 шт. | — | |
|
| 7 | 5VK-12438-00-00 | .Seal, Mechanical | 1 шт. | — | |
|
| 8 | 99009-12400-00 | Circlip | 1 шт. | — | |
|
| 9 | 93440-07182-00 | Circlip | 1 шт. | — | |
|
| 10 | 90201-12541-00 | .Washer, Plate | 1 шт. | — | |
|
| 11 | 2S3-12422-00-00 | Cover, Housing | 1 шт. | — | |
|
| 12 | 2S3-12414-00-00 | Gasket, Cover | 1 шт. | — | |
|
| 13 | 90110-06274-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 14 | 2S3-12483-00-00 | Pipe 3 | 1 шт. | — | |
|
| 15 | 93210-27194-00 | O-Ring | 1 шт. | — | |
|
| 16 | 90110-06247-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 17 | 2S3-12485-00-00 | Pipe 5 | 1 шт. | — | |
|
| 18 | 93210-14104-00 | O-Ring | 1 шт. | — | |
|
| 19 | 90110-06247-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 20 | 2S3-12481-00-00 | Pipe 1 | 1 шт. | — | |
|
| 21 | 93210-15414-00 | O-Ring | 2 шт. | — | |
|
| 22 | 91312-06016-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 23 | 2S3-12482-00-00 | Pipe 2 | 1 шт. | — | |
|
| 24 | 93210-15414-00 | O-Ring | 2 шт. | — | |
|
| 25 | 91312-06016-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 26 | 2S3-12589-00-00 | Hose 6 | 1 шт. | — | |
|
| 27 | 90450-28014-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 28 | 2S3-12484-00-00 | Pipe 4 | 1 шт. | — | |
|
| 29 | 2S3-12551-00-00 | Hose 7 | 1 шт. | — | |
|
| 30 | 90450-28014-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 31 | 90450-32015-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 32 | 2S3-1243E-00-00 | Hose 2 | 1 шт. | — | |
|
| 33 | 90450-28014-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 34 | 90450-32015-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 35 | 2S3-12417-00-00 | Housing, Thermostat | 1 шт. | — | |
|
| 36 | 5LP-12411-00-00 | Thermostat | 1 шт. | — | |
|
| 37 | 93210-49046-00 | ..O-Ring | 1 шт. | — | |
|
| 38 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 39 | 2S3-12615-00-00 | Bolt | 2 шт. | — | |
|
| 40 | 2S3-12591-00-00 | Supt, Filler Neck | 1 шт. | — | |
|
| 41 | 5SL-12462-00-00 | Cap, Radiator | 1 шт. | — | |
|
| 42 | 2S3-12443-00-00 | Stay | 1 шт. | — | |
|
| 43 | 90105-06081-00 | Bolt, Flange | 1 шт. | — | |
|
| 44 | 90111-06054-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 45 | 90450-25037-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 46 | 90450-22001-00 | Hose Clamp Assy | 3 шт. | — | |
|
| 47 | 2S3-12588-00-00 | Hose 5 | 1 шт. | — | |
|
| 48 | 2S3-12579-00-00 | Hose 4 | 1 шт. | — | |
|
