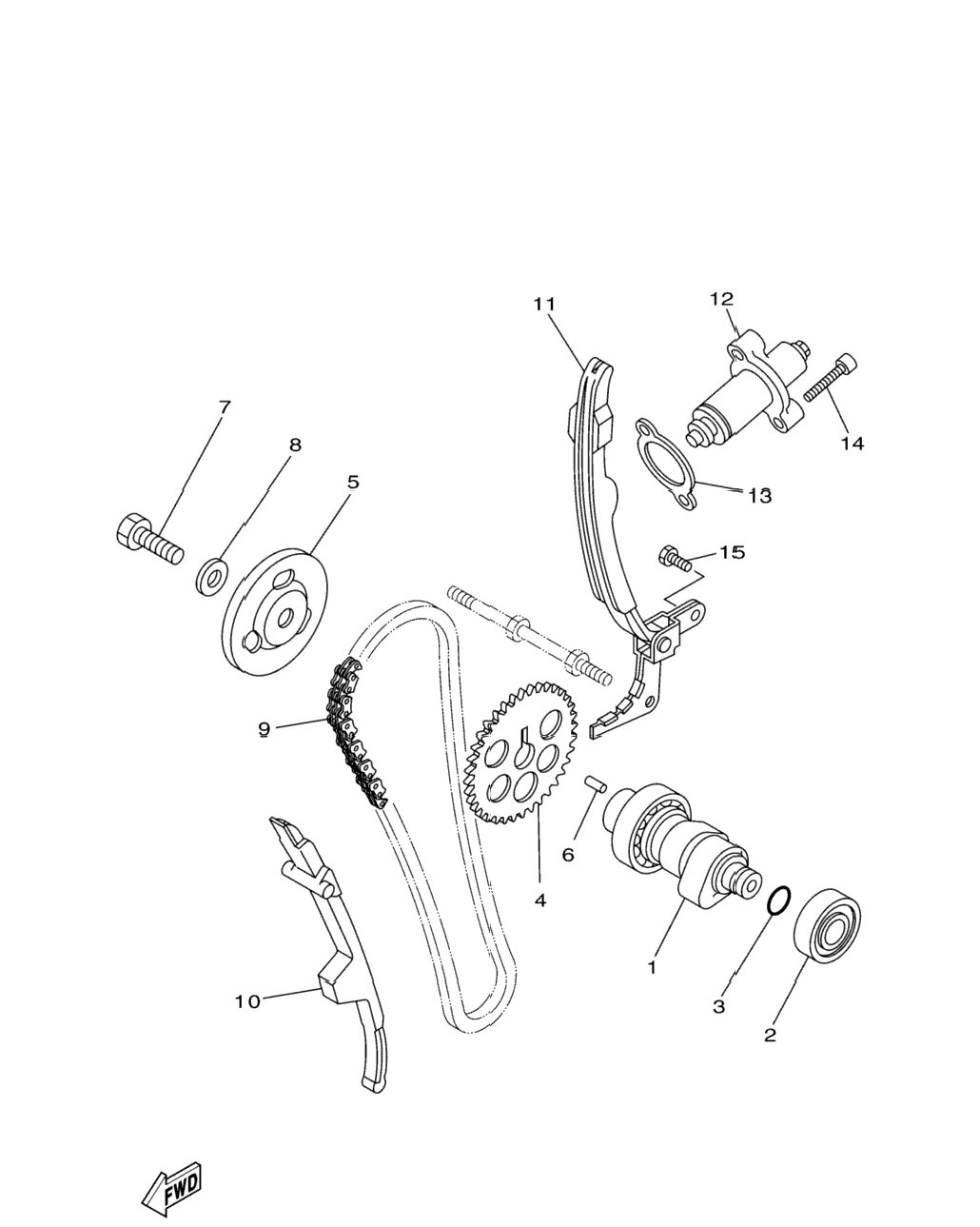

| 1 | 5XT-12170-00-00 | Camshaft Assy 1 | 1 шт. | — | |
|
| 2 | 93306-20204-00 | Bearing KOYO | 1 шт. | — | |
|
| 3 | 93210-11453-00 | .O-Ring | 1 шт. | — | |
|
| 4 | 5XT-12176-00-00 | Sprocket, Cam Chain | 1 шт. | — | |
|
| 5 | 4KB-11145-00-00 | Plate, Breather 2 | 1 шт. | — | |
|
| 6 | 93604-10011-00 | Pin, Dowel | 1 шт. | — | |
|
| 7 | 90101-10016-00 | Bolt | 1 шт. | — | |
|
| 8 | 90201-10591-00 | Washer, Plate | 1 шт. | — | |
|
| 9 | 94582-19104-00 | Chain (Did Scr-0404 Sv 104Le) DAIDO | 1 шт. | — | |
|
| 10 | 5BP-12231-00-00 | Guide, Stopper 1 | 0 шт. | — | |
|
| 11 | 5XT-12241-01-00 | Guide, Stopper 2 | 1 шт. | — | |
|
| 12 | 5XT-12210-00-00 | Tensioner Assy, Cam Chain | 1 шт. | — | |
|
| 13 | 5XT-12213-00-00 | Gasket, Tensioner Case | 1 шт. | — | |
|
| 14 | 91314-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 15 | 90101-06043-00 | Bolt | 2 шт. | — | |
|
