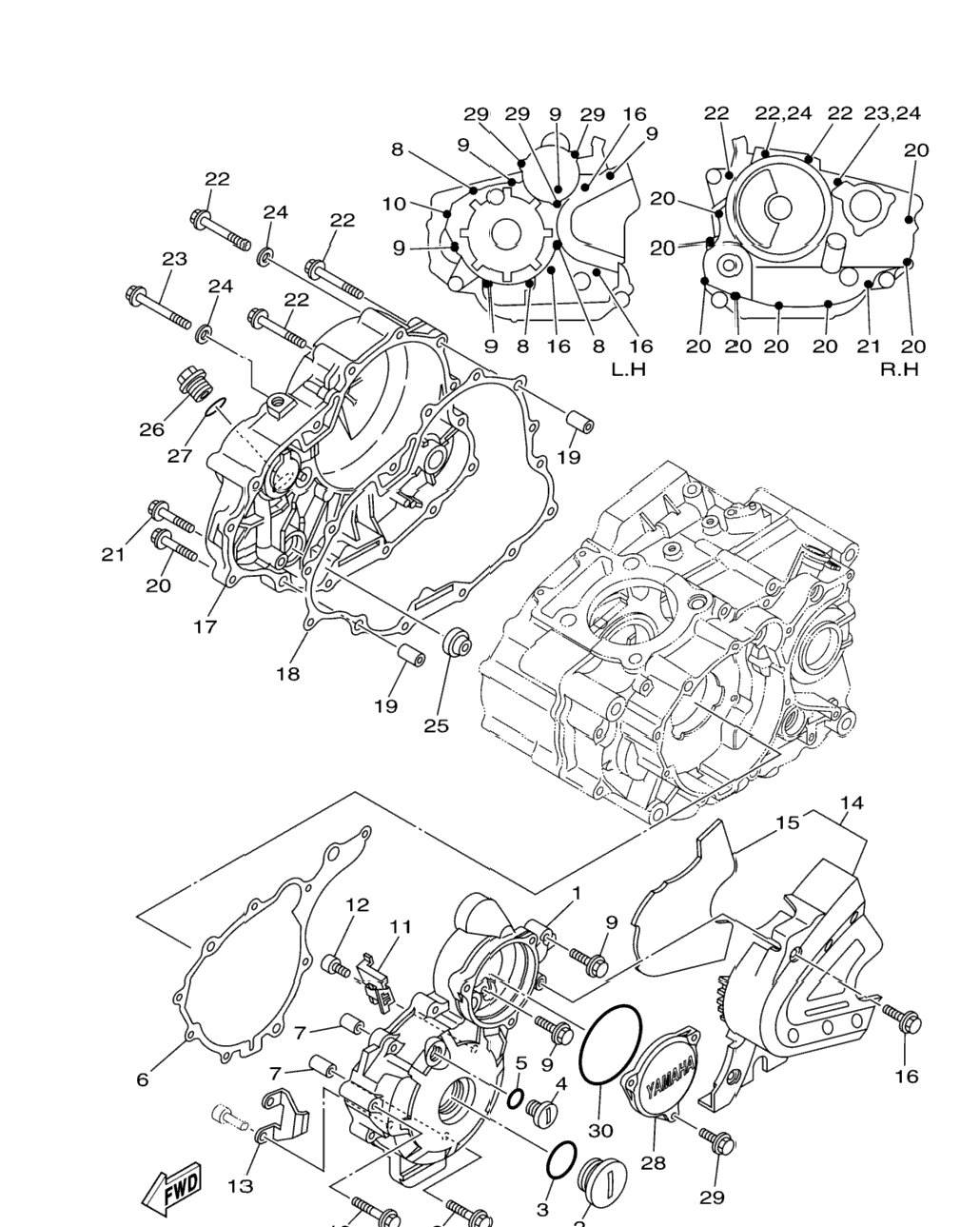

| 1 | 5XT-15411-02-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-32069-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-32172-00 | .O-Ring | 1 шт. | — | |
|
| 4 | 90340-14151-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 5 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 6 | 4D3-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 8 | 95024-06040-00 | Bolt, Flange (Small Head) | 3 шт. | — | |
|
| 9 | 95024-06030-00 | Bolt, Flange (Small Head) | 5 шт. | — | |
|
| 10 | 95024-06045-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 11 | 90465-16011-00 | Clamp | 1 шт. | — | |
|
| 12 | 90110-05032-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 13 | 5XT-15113-00-00 | Plate | 1 шт. | — | |
|
| 14 | 5XT-15430-00-00 | Crankcase Cover Assy 3 | 1 шт. | — | |
|
| 15 | 5XT-15316-00-00 | . .Damper 1 | 1 шт. | — | |
|
| 16 | 95024-06016-00 | .Bolt, Flg.(Small Head) | 3 шт. | — | |
|
| 17 | 5XT-15421-02-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 18 | 4D3-15461-00-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 19 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 19 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 20 | 95024-06025-00 | Bolt, Flange (Small Head) | 8 шт. | — | |
|
| 21 | 95024-06035-00 | Bolt, Flg.(Small Head) | 1 шт. | — | |
|
| 22 | 95024-06050-00 | Bolt, Flange (Small Head) | 3 шт. | — | |
|
| 23 | 95024-06055-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 24 | 90430-06014-00 | Gasket | 2 шт. | — | |
|
| 25 | 3Y1-15361-00-00 | Gauge, Level | 1 шт. | — | |
|
| 26 | 90340-20002-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 27 | 93210-19123-00 | O-Ring | 1 шт. | — | |
|
| 28 | 5XT-15415-00-00 | Cover, 1 | 1 шт. | — | |
|
| 29 | 90111-06008-00 | Bolt, Hex. Socket Button | 3 шт. | — | |
|
| 30 | 93210-74M68-00 | O-Ring | 1 шт. | — | |
|
