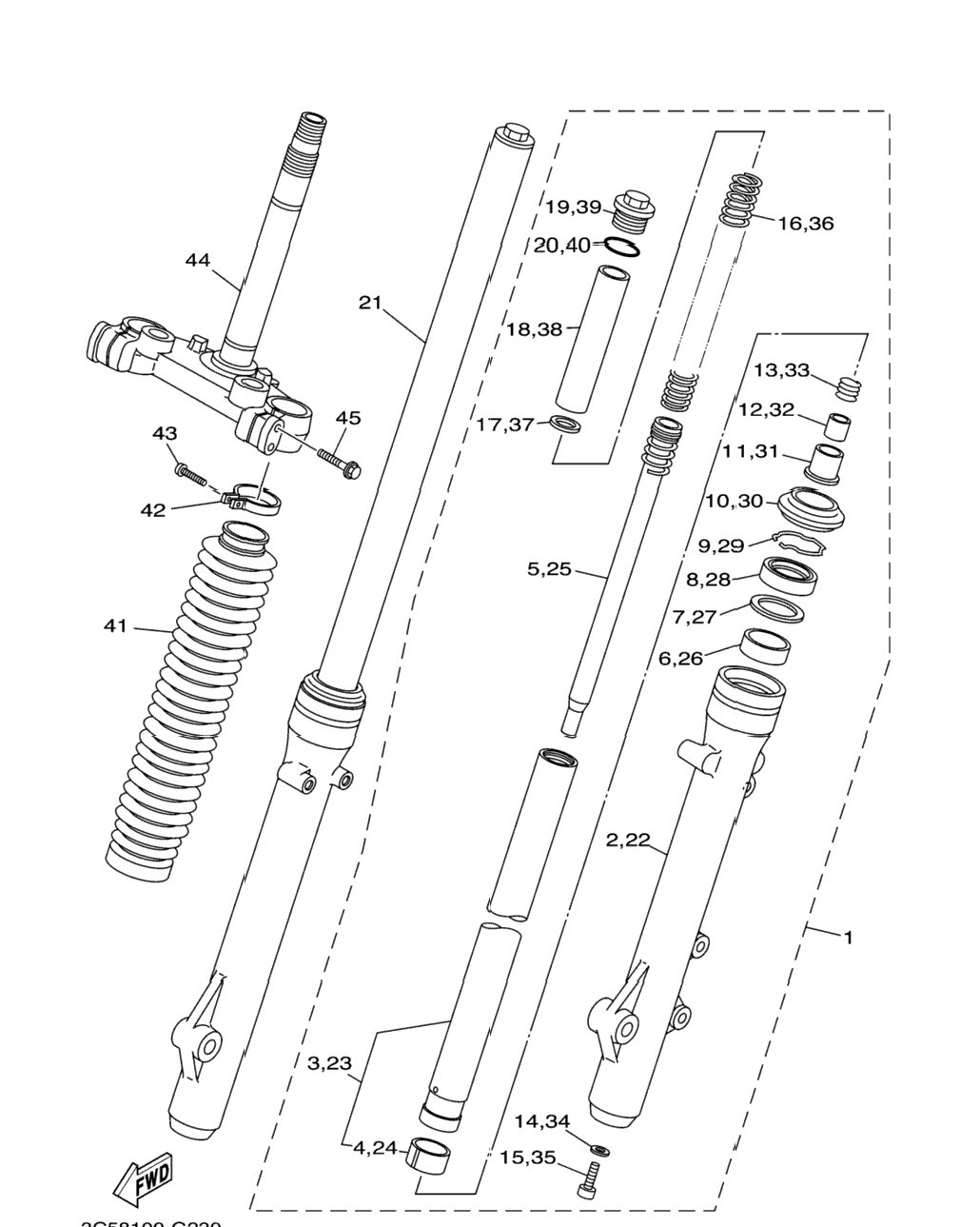

| 1 | 3C5-23102-20-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 3C5-23126-10-00 | . .Tube, Outer (L.H) | 1 шт. | — | |
|
| 3 | 3C5-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 4 | 5JX-23171-00-00 | . . ..Piston, Front Fork | 1 шт. | — | |
|
| 5 | 3C5-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 6 | 5JX-23125-00-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 7 | 5K5-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 8 | 5JX-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 9 | 4A1-23156-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 10 | 5JX-23144-00-00 | . .Seal, Dust | 1 шт. | — | |
|
| 11 | 5XT-23173-00-00 | . .Spindle, Taper | 1 шт. | — | |
|
| 12 | 5XT-23363-00-00 | . .Collar 1 | 1 шт. | — | |
|
| 13 | 5XT-23151-00-00 | . .Spring, Rebound | 1 шт. | — | |
|
| 14 | 1N1-23158-00-00 | . .Gasket | 1 шт. | — | |
|
| 15 | 91311-08025-00 | . .Bolt | 1 шт. | — | |
|
| 16 | 3C5-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 17 | 4FY-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 18 | 3C5-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 19 | 5JX-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 20 | 240-23114-00-00 | . .Gasket | 1 шт. | — | |
|
| 21 | 3C5-23103-20-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 22 | 3C5-23136-10-00 | . .Tube, Outer 2 | 1 шт. | — | |
|
| 23 | 3C5-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 24 | 5JX-23171-00-00 | . . ..Piston, Front Fork | 1 шт. | — | |
|
| 25 | 3C5-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 26 | 5JX-23125-00-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 27 | 5K5-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 28 | 5JX-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 29 | 4A1-23156-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 30 | 5JX-23144-00-00 | . .Seal, Dust | 1 шт. | — | |
|
| 31 | 5XT-23173-00-00 | . .Spindle, Taper | 1 шт. | — | |
|
| 32 | 5XT-23363-00-00 | . .Collar 1 | 1 шт. | — | |
|
| 33 | 5XT-23151-00-00 | . .Spring, Rebound | 1 шт. | — | |
|
| 34 | 1N1-23158-00-00 | . .Gasket | 1 шт. | — | |
|
| 35 | 91311-08025-00 | . .Bolt | 1 шт. | — | |
|
| 36 | 3C5-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 37 | 4FY-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 38 | 3C5-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 39 | 5JX-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 40 | 240-23114-00-00 | . .Gasket | 1 шт. | — | |
|
| 41 | 3C5-23191-10-00 | Boot | 2 шт. | — | |
|
| 42 | 3C5-23192-00-00 | Band | 2 шт. | — | |
|
| 43 | 98506-04016-00 | Screw, Pan Head | 2 шт. | — | |
|
| 44 | 3C5-23340-10-00 | Under Bracket Comp | 1 шт. | — | |
|
| 45 | 5RS-23346-00-00 | Bolt 1 | 4 шт. | — | |
|
