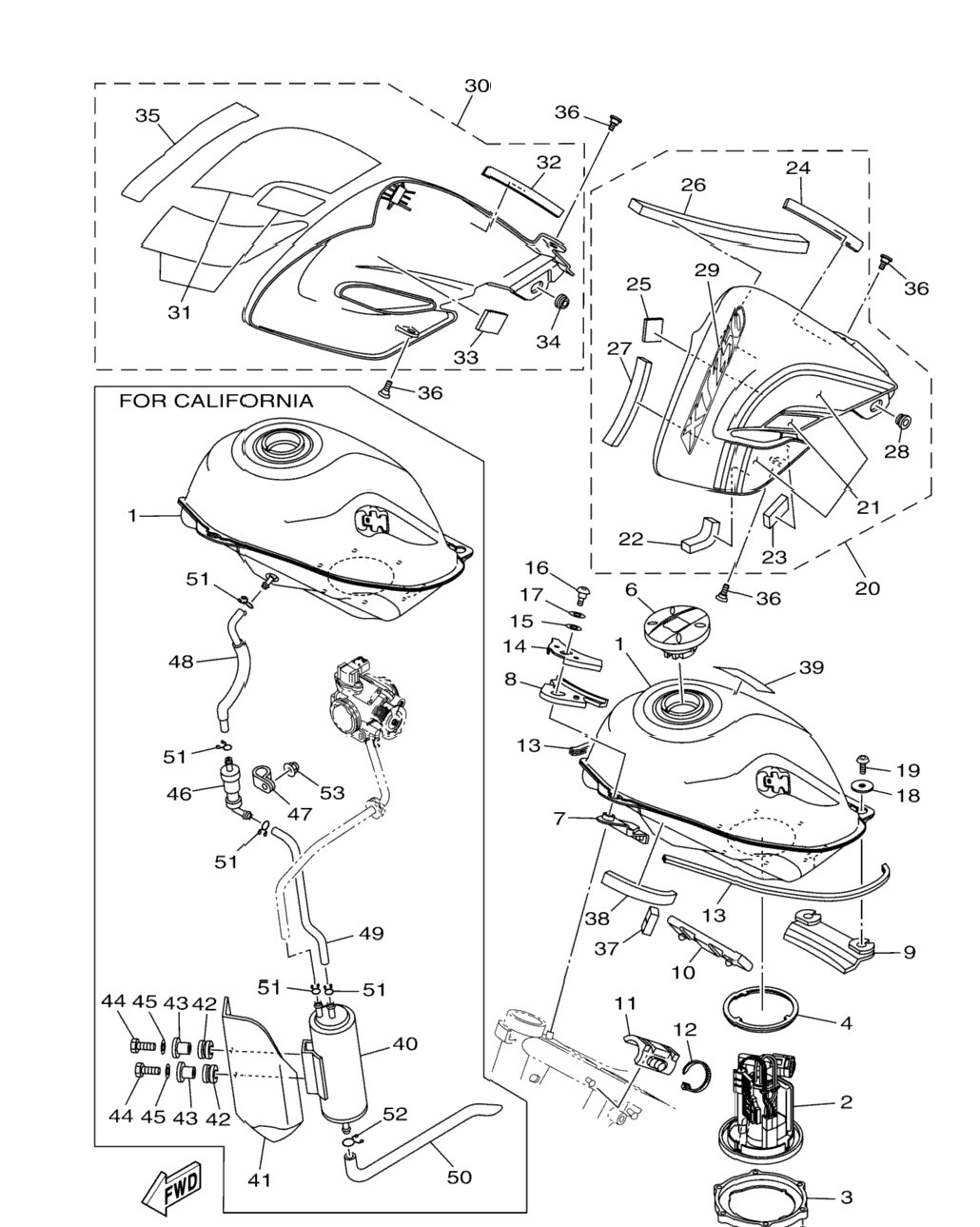

| 1 | 3C5-24110-40-P0 | Fuel Tank Comp MBL2 (FOR CAL) | 0 шт. | — | |
|
| 2 | 3C5-24110-20-P0 | Fuel Tank Comp MBL2 (FOR U49) | 1 шт. | — | |
|
| 3 | 5XT-13907-10-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 4 | 3D7-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 5 | 1S4-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 6 | 92012-05016-00 | Bolt, Button Head | 6 шт. | — | |
|
| 7 | 5VK-24602-30-00 | Cap Assy FOR CAL | 0 шт. | — | |
|
| 8 | 5VK-24602-20-00 | Cap Assy FOR U49 | 1 шт. | — | |
|
| 9 | 3C5-24181-10-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 10 | 3C5-24183-00-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 11 | 3C5-24182-10-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 12 | 3C5-24185-10-00 | Damper, Locating 5 | 1 шт. | — | |
|
| 13 | 3C5-24184-10-00 | Damper, Locating 4 | 2 шт. | — | |
|
| 14 | 1UA-82591-00-00 | .Band | 2 шт. | — | |
|
| 15 | 3C5-24188-00-00 | Mold, Fuel Tank | 2 шт. | — | |
|
| 16 | 3C5-24186-00-00 | Washer, Special | 1 шт. | — | |
|
| 17 | 90202-10165-00 | Washer, Plate | 1 шт. | — | |
|
| 18 | 90109-06265-00 | Bolt | 1 шт. | — | |
|
| 19 | 90202-10003-00 | Washer, Plate | 1 шт. | — | |
|
| 20 | 90201-06074-00 | Washer, Plate | 2 шт. | — | |
|
| 21 | 90149-06298-00 | Screw | 2 шт. | — | |
|
| 22 | 3C5-Y217W-W0-00 | Scoop Comp, Air 1 | 1 шт. | — | |
|
| 23 | 3C5-2137C-N0-00 | . .Graphic, Scoop Air Set 1 | 1 шт. | — | |
|
| 24 | 3C5-24125-00-00 | . .Seal, Air Shroud 1 | 1 шт. | — | |
|
| 25 | 3C5-24126-00-00 | . .Seal, Air Shroud 2 | 1 шт. | — | |
|
| 26 | 3C5-2414H-00-00 | . .Damper, Plate 1 | 1 шт. | — | |
|
| 27 | 3C5-2414J-00-00 | . .Damper, Plate 2 | 1 шт. | — | |
|
| 28 | 3C5-2414K-00-00 | . .Damper, Plate 3 | 1 шт. | — | |
|
| 29 | 3C5-2414N-00-00 | . .Damper, Plate 4 | 1 шт. | — | |
|
| 30 | 90480-01559-00 | . Grommet | 1 шт. | — | |
|
| 31 | 1YB-24161-20-00 | . .Emblem 1 | 1 шт. | — | |
|
| 32 | 3C5-Y217X-W0-00 | Scoop Comp., Air 2 | 1 шт. | — | |
|
| 33 | 3C5-2137D-N0-00 | . .Graphic, Scoop Air Set 2 | 1 шт. | — | |
|
| 34 | 3C5-2414H-00-00 | . .Damper, Plate 1 | 1 шт. | — | |
|
| 35 | 3C5-2414J-00-00 | . .Damper, Plate 2 | 1 шт. | — | |
|
| 36 | 90480-01559-00 | . Grommet | 1 шт. | — | |
|
| 37 | 1YB-24161-20-00 | . .Emblem 1 | 1 шт. | — | |
|
| 38 | 90111-05045-00 | Bolt, Hex. Socket Button | 4 шт. | — | |
|
| 39 | 3C5-2414P-00-00 | Damper, Plate 5 | 1 шт. | — | |
|
| 40 | 3C5-2416F-00-00 | Insulator, Fuel Tank 1 | 1 шт. | — | |
|
| 41 | 1TP-2118K-A1-00 | Label, Caution | 1 шт. | — | |
|
| 42 | 3C5-24170-00-00 | Canister Assy FOR CAL | 0 шт. | — | |
|
| 43 | 3C5-2419E-00-00 | Cover, Canister FOR CAL | 0 шт. | — | |
|
| 44 | 90480-15342-00 | Grommet FOR CAL | 0 шт. | — | |
|
| 45 | 90387-063G3-00 | Collar FOR CAL | 0 шт. | — | |
|
| 46 | 97007-06025-00 | Bolt FOR CAL | 0 шт. | — | |
|
| 47 | 92907-06600-00 | Washer, Plate FOR CAL | 0 шт. | — | |
|
| 48 | 5RB-24180-00-00 | Roll Over Valve Assy FOR CAL | 0 шт. | — | |
|
| 49 | 90464-15014-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 50 | 1YB-24321-00-00 | Pipe 10 FOR CAL | 0 шт. | — | |
|
| 51 | 1YB-24322-00-00 | Pipe 11 FOR CAL | 0 шт. | — | |
|
| 52 | 3C5-24324-00-00 | Pipe 13 FOR CAL | 0 шт. | — | |
|
| 53 | 90467-090A2-00 | Clip FOR CAL | 0 шт. | — | |
|
| 54 | 90467-11106-00 | Clip FOR CAL | 0 шт. | — | |
|
| 55 | 95602-05200-00 | Nut, Self-Locking FOR CAL | 0 шт. | — | |
|
