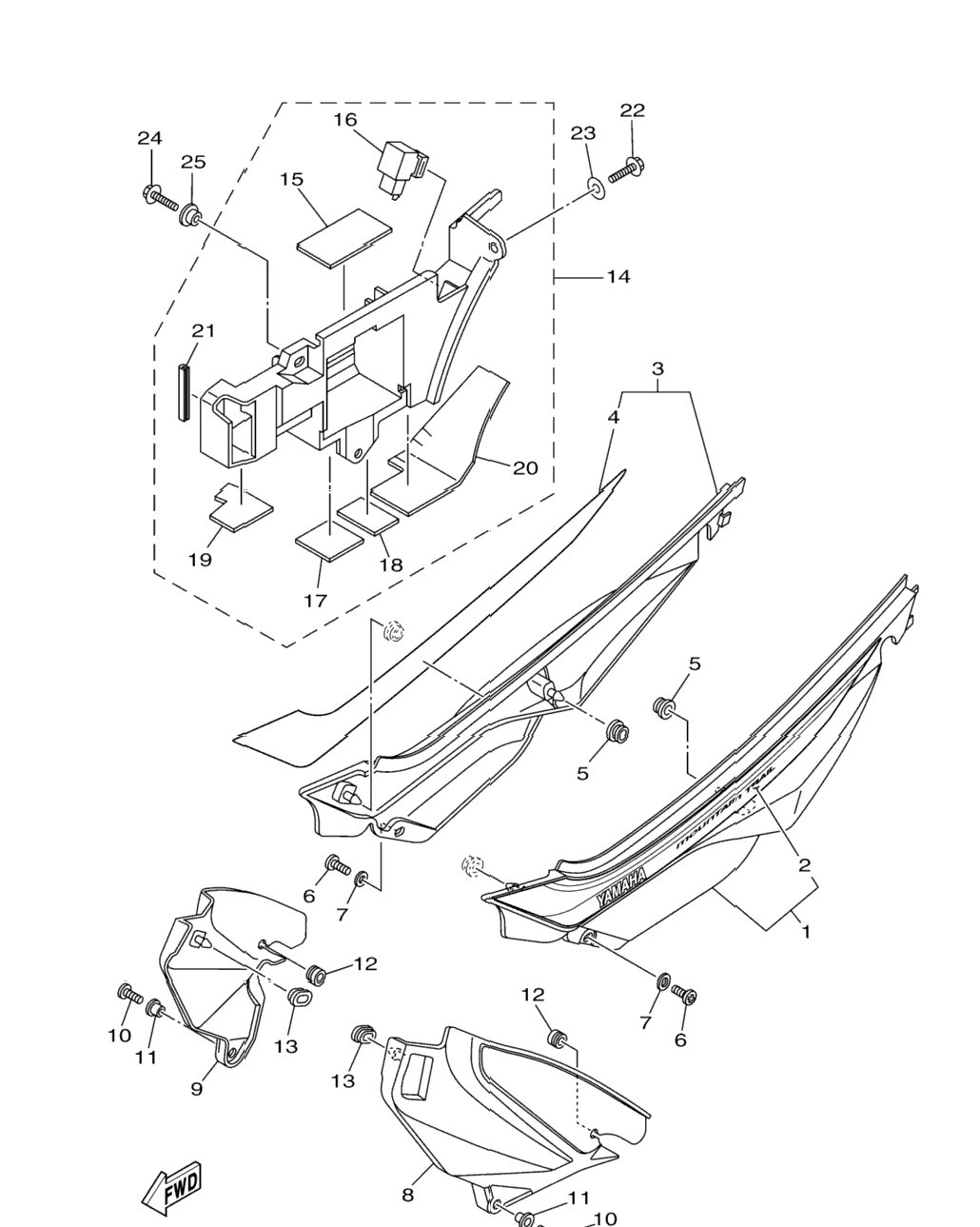

| 1 | 3C5-Y2171-V0-00 | Cover, Side 1 | 1 шт. | — | |
|
| 2 | 3C5-2173E-P0-00 | . .Graphic 1 | 1 шт. | — | |
|
| 3 | 3C5-Y2172-V0-00 | Cover, Side 2 | 1 шт. | — | |
|
| 4 | 3C5-2173F-P0-00 | . .Graphic 2 | 1 шт. | — | |
|
| 5 | 90480-01558-00 | Grommet | 2 шт. | — | |
|
| 6 | 90149-06298-00 | Screw | 2 шт. | — | |
|
| 7 | 90201-06058-00 | Washer, Plate | 2 шт. | — | |
|
| 8 | 3C5-21731-00-00 | Cover, Side 3 | 1 шт. | — | |
|
| 9 | 3C5-21741-00-00 | Cover, Side 4 | 1 шт. | — | |
|
| 10 | 90146-06014-00 | Screw, Oval Fillister | 2 шт. | — | |
|
| 11 | 90387-06048-00 | Collar | 2 шт. | — | |
|
| 12 | 90480-10334-00 | Grommet | 2 шт. | — | |
|
| 13 | 90480-01141-00 | Grommet | 2 шт. | — | |
|
| 14 | 1YB-8210E-20-00 | Battery Box Assy | 1 шт. | — | |
|
| 15 | 5EJ-2414H-00-00 | . Damper, Plate 1 | 1 шт. | — | |
|
| 16 | 4MY-83350-01-00 | . Flasher Relay Assy | 1 шт. | — | |
|
| 17 | 5XT-2174A-00-00 | . .Insulator, Side Cover | 1 шт. | — | |
|
| 18 | 5XT-2174T-00-00 | . .Insulator, Side Cover 2 | 1 шт. | — | |
|
| 19 | 5XT-2172S-00-00 | . .Insulator 3 | 1 шт. | — | |
|
| 20 | 5XT-2173S-00-00 | . .Insulator 4 | 1 шт. | — | |
|
| 21 | 31A-24188-01-00 | . Mold, Fuel Tank | 1 шт. | — | |
|
| 22 | 90105-06057-00 | Bolt, Flange | 1 шт. | — | |
|
| 23 | 90201-06063-00 | Washer, Plate | 1 шт. | — | |
|
| 24 | 95802-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 25 | 90387-06066-00 | Collar | 2 шт. | — | |
|
