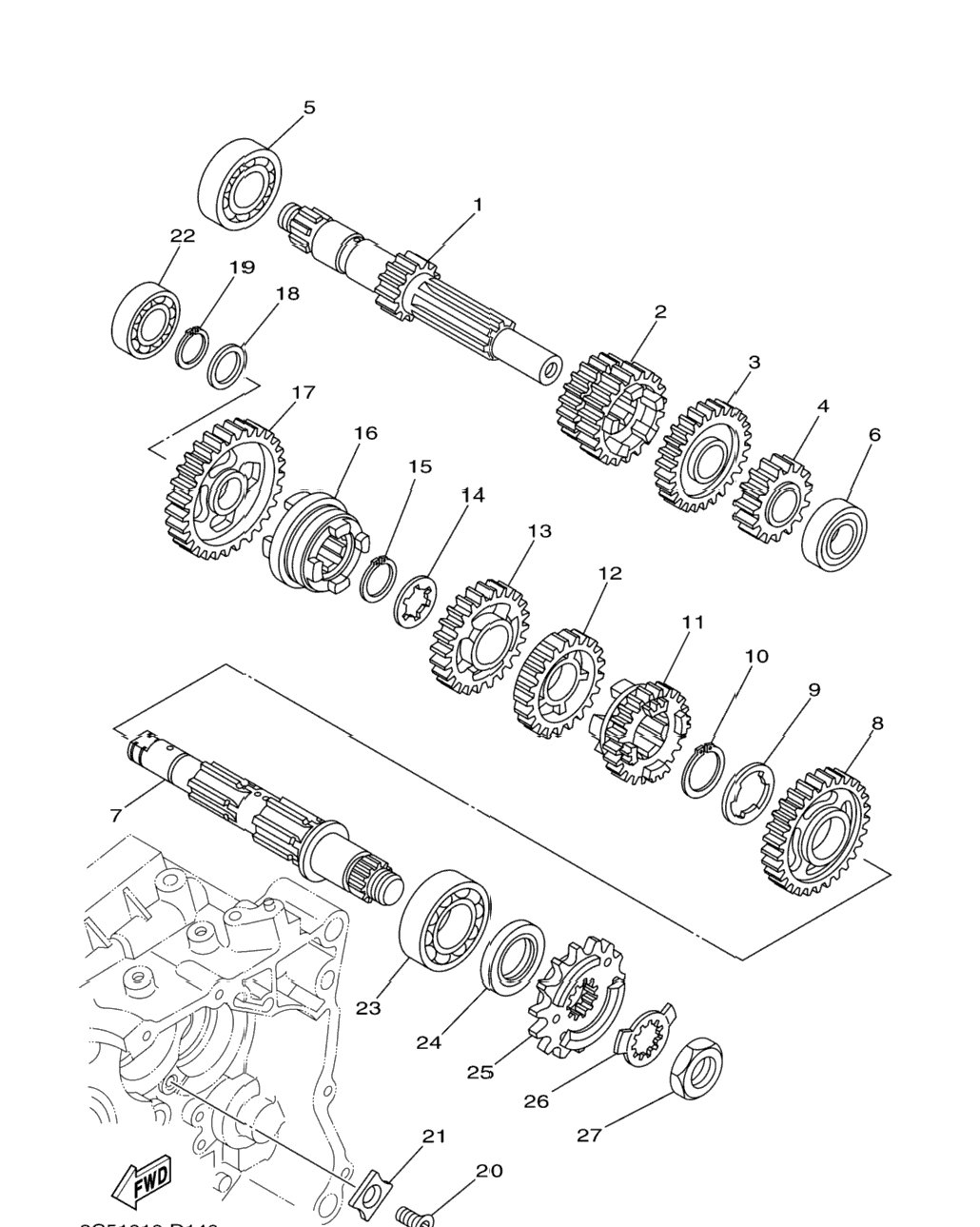

| 1 | 5XT-17411-00-00 | Axle, Main (13T) | 1 шт. | — | |
|
| 2 | 5XT-17131-00-00 | Gear, 3Rd Pinion (22T/28T) | 1 шт. | — | |
|
| 3 | 5XT-17151-10-00 | Gear, 5Th Pinion (28T) | 1 шт. | — | |
|
| 4 | 51Y-17121-00-00 | Gear, 2Nd Pinion (16T) | 1 шт. | — | |
|
| 5 | 93306-20427-00 | Bearing | 1 шт. | — | |
|
| 6 | 93306-00320-00 | Bearing | 1 шт. | — | |
|
| 7 | 3C5-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 8 | 5XT-17221-00-00 | Gear, 2Nd Wheel (29T) | 1 шт. | — | |
|
| 9 | 90209-23241-00 | Washer | 1 шт. | — | |
|
| 10 | 93410-26067-00 | Circlip | 1 шт. | — | |
|
| 11 | 5XT-17251-10-00 | Gear, 5Th Wheel (23T) | 1 шт. | — | |
|
| 12 | 5XT-17241-00-00 | Gear, 4Th Wheel (29T) | 1 шт. | — | |
|
| 13 | 5XT-17231-00-00 | Gear, 3Rd Wheel (29T) | 1 шт. | — | |
|
| 14 | 90209-18208-00 | Washer | 1 шт. | — | |
|
| 15 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 16 | 5BP-17285-00-00 | Clutch, Dog | 1 шт. | — | |
|
| 17 | 3C5-17211-00-00 | Gear, 1St Wheel (37T) | 0 шт. | — | |
|
| 18 | 90201-177G4-00 | Washer, Plate | 1 шт. | — | |
|
| 19 | 93410-17037-00 | Circlip | 1 шт. | — | |
|
| 20 | 90151-06008-00 | Screw, Countersunk | 1 шт. | — | |
|
| 21 | 3C5-17558-00-00 | Plate, Bearing | 0 шт. | — | |
|
| 22 | 93306-20332-00 | Bearing | 1 шт. | — | |
|
| 23 | 93306-20532-00 | Bearing | 1 шт. | — | |
|
| 24 | 93102-25226-00 | Oil Seal | 1 шт. | — | |
|
| 25 | 5XT-17460-00-00 | Sprocket, Drive (15T) | 1 шт. | — | |
|
| 26 | 90215-23265-00 | Washer, Lock | 1 шт. | — | |
|
| 27 | 90179-18552-00 | Nut | 1 шт. | — | |
|
