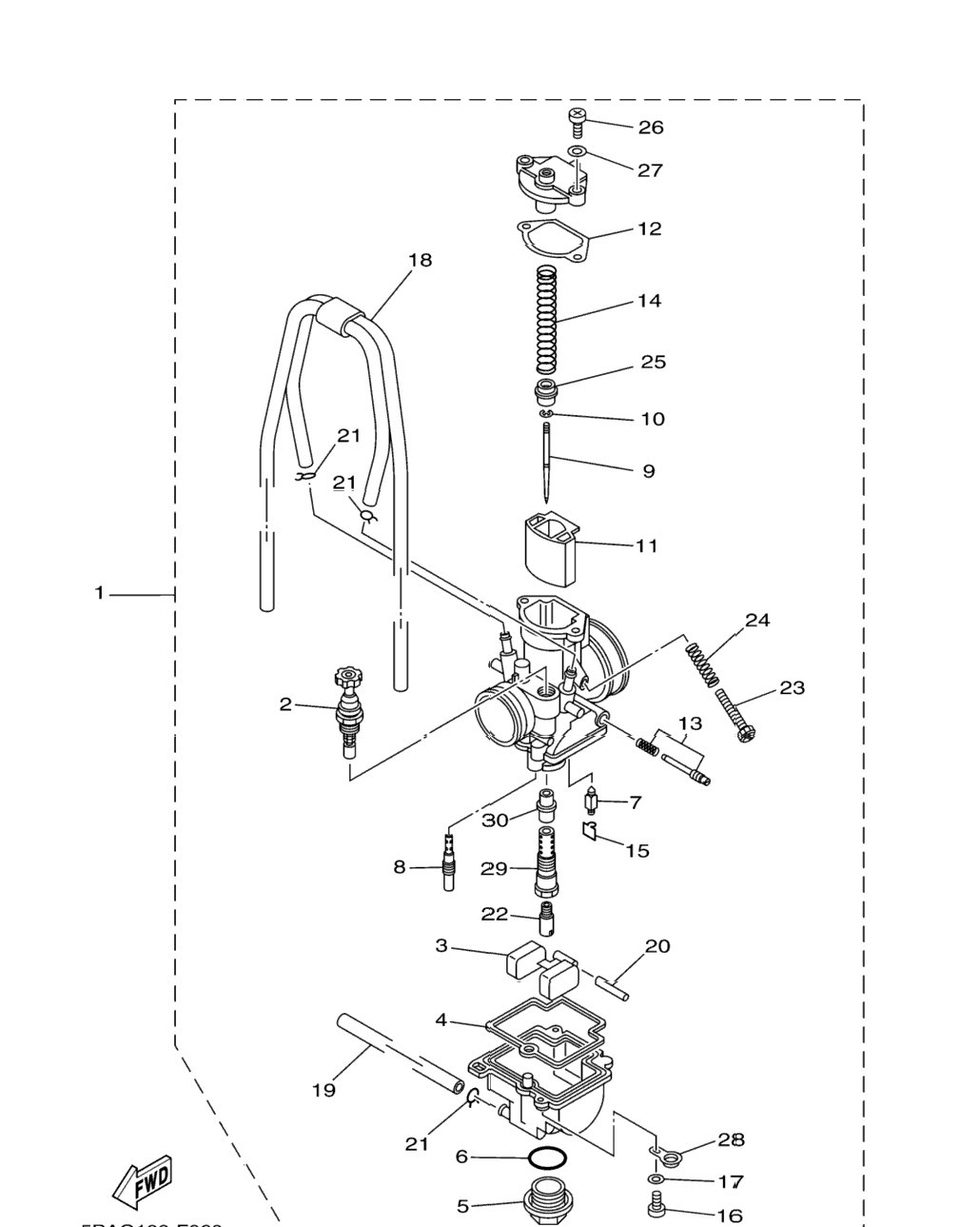

| 1 | 5PA-14101-00-00 | Carburetor Assy 1 | 1 шт. | — | |
|
| 2 | 4JT-14171-00-00 | . .Plunger, Starter | 1 шт. | — | |
|
| 3 | 5PA-14985-00-00 | . .Float | 1 шт. | — | |
|
| 4 | 5PA-14984-00-00 | . .Gasket, Float Chamber | 1 шт. | — | |
|
| 5 | 4MX-14115-00-00 | . .Plug, Screw | 1 шт. | — | |
|
| 6 | 4MX-14561-00-00 | . .O-Ring | 1 шт. | — | |
|
| 7 | 5PA-14392-00-00 | . .Valve, Needle | 1 шт. | — | |
|
| 8 | 4MX-14948-05-00 | . .Jet, Slow (#45) STD | 1 шт. | — | |
|
| 8 | 4MX-14948-06-00 | . .Jet, Slow (#48) AP | 1 шт. | — | |
|
| 9 | 5PA-14916-KE-00 | . .Needle (Nbke) AP | 1 шт. | — | |
|
| 9 | 5PA-14916-KF-00 | . .Needle (Nbkf) STD | 1 шт. | — | |
|
| 9 | 5PA-14916-KG-00 | . .Needle (Nbkg) AP | 1 шт. | — | |
|
| 9 | 5PA-14916-LE-00 | . .Needle (Nble) AP | 1 шт. | — | |
|
| 9 | 5PA-14916-LF-00 | . .Needle (Nblf) AP | 1 шт. | — | |
|
| 9 | 5PA-14916-LG-00 | . .Needle (Nblg) AP | 1 шт. | — | |
|
| 10 | 4MX-14919-00-00 | . .Clip | 1 шт. | — | |
|
| 11 | 5PA-14340-00-00 | . .Valve Assy | 1 шт. | — | |
|
| 12 | 5PA-14126-00-00 | . .Gasket | 1 шт. | — | |
|
| 13 | 5PA-14105-00-00 | . .Pilot Screw Set | 1 шт. | — | |
|
| 14 | 5PA-14131-00-00 | . .Spring, Throttle Valve | 1 шт. | — | |
|
| 15 | 5PA-14159-00-00 | . .Clip | 1 шт. | — | |
|
| 16 | 98504-04014-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 18 | 5PA-1410E-00-00 | . .Hose | 1 шт. | — | |
|
| 19 | 4XL-14197-10-00 | . .Pipe | 1 шт. | — | |
|
| 20 | 676-14548-00-00 | . .Pin, Float Arm | 1 шт. | — | |
|
| 21 | 3TJ-14137-40-00 | . .Clip | 3 шт. | — | |
|
| 22 | 4MX-14943-34-00 | . .Jet, Main (#135) AP | 1 шт. | — | |
|
| 22 | 4MX-14943-85-00 | . .Jet, Main (#138) STD | 1 шт. | — | |
|
| 22 | 4MX-14943-35-00 | . .Jet, Main (#140) AP | 1 шт. | — | |
|
| 22 | 4MX-14943-86-00 | . .Jet, Main (#142) AP | 1 шт. | — | |
|
| 23 | 5HC-14922-00-00 | . .Screw, Throttle | 1 шт. | — | |
|
| 24 | 5HC-14934-00-00 | . .Spring, Throttle Stop | 1 шт. | — | |
|
| 25 | 5PA-14194-00-00 | . .Ring | 1 шт. | — | |
|
| 26 | 98504-04012-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 27 | 92903-04600-00 | . .Washer | 2 шт. | — | |
|
| 27 | 92903-04600-00 | . .Washer | 2 шт. | — | |
|
| 28 | 5PA-14146-00-00 | . .Plate | 0 шт. | — | |
|
| 29 | 5PA-1496A-00-00 | . .Holder, Needel Jet | 1 шт. | — | |
|
| 30 | 5PA-14947-00-00 | . .Jet, Needle | 1 шт. | — | |
|
