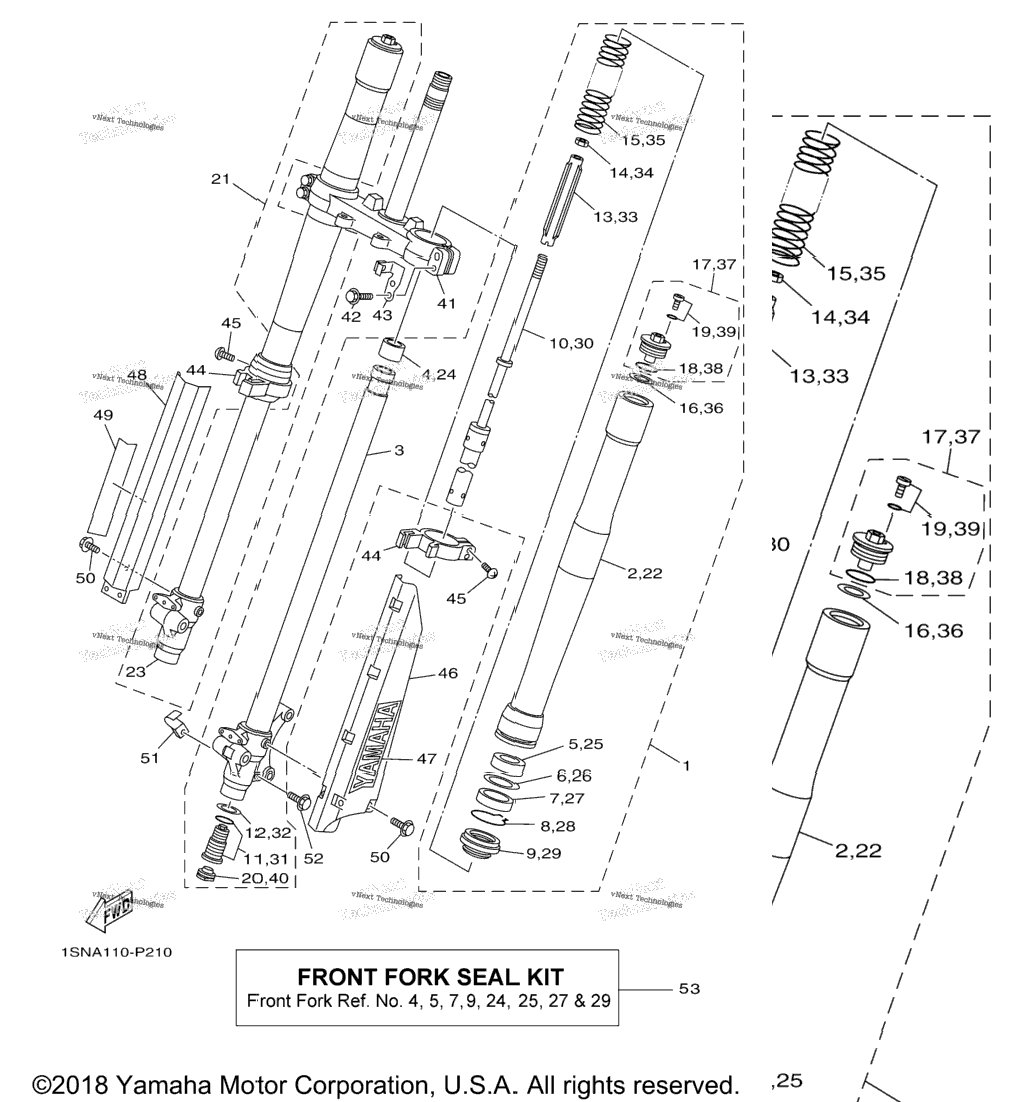

| 1 | 5PA-23102-10-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 5PA-23136-10-00 | . .Tube, Outer 2 | 1 шт. | — | |
|
| 3 | 5PA-23120-00-00 | . . Inner Tube Comp. 2 | 1 шт. | — | |
|
| 4 | 5PA-23171-00-00 | . Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 5 | 5PA-23125-00-00 | . Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 6 | 5K5-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 7 | 4ES-23145-00-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 8 | 4A1-23156-00-00 | . Ring, Snap | 1 шт. | — | |
|
| 9 | 4ES-23144-00-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 10 | 5PA-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 11 | 5PA-2316A-00-00 | . .Valve Comp | 1 шт. | — | |
|
| 12 | 2HH-23158-L0-00 | . ..Gasket | 1 шт. | — | |
|
| 13 | 4ES-23142-00-00 | . .Seat, Spring Upper | 1 шт. | — | |
|
| 14 | 3XJ-23357-L0-00 | . .Nut | 1 шт. | — | |
|
| 15 | 4ES-23141-40-00 | . . Spring, Front Fork (K=2.8N/ | 1 шт. | — | |
|
| 16 | 5PA-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 17 | 4ES-23111-10-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 18 | 4V4-23188-L0-00 | . . ..O-Ring (KYB) | 1 шт. | — | |
|
| 19 | 3JD-23394-00-00 | . . ..Bolt, Special | 1 шт. | — | |
|
| 20 | 3JD-2312G-L0-00 | . .Plug, Hole | 1 шт. | — | |
|
| 21 | 5PA-23103-10-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 22 | 5PA-23136-10-00 | . .Tube, Outer 2 | 1 шт. | — | |
|
| 23 | 5PA-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 24 | 5PA-23171-00-00 | . Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 25 | 5PA-23125-00-00 | . Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 26 | 5K5-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 27 | 4ES-23145-00-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 28 | 4A1-23156-00-00 | . Ring, Snap | 1 шт. | — | |
|
| 29 | 4ES-23144-00-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 30 | 5PA-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 31 | 5PA-2316A-00-00 | . .Valve Comp | 1 шт. | — | |
|
| 32 | 2HH-23158-L0-00 | . ..Gasket | 1 шт. | — | |
|
| 33 | 4ES-23142-00-00 | . .Seat, Spring Upper | 1 шт. | — | |
|
| 34 | 3XJ-23357-L0-00 | . .Nut | 1 шт. | — | |
|
| 35 | 4ES-23141-40-00 | . . Spring, Front Fork (K=2.8N/ | 1 шт. | — | |
|
| 36 | 5PA-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 37 | 4ES-23111-10-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 38 | 4V4-23188-L0-00 | . . ..O-Ring (KYB) | 1 шт. | — | |
|
| 39 | 3JD-23394-00-00 | . . ..Bolt, Special | 1 шт. | — | |
|
| 40 | 3JD-2312G-L0-00 | . .Plug, Hole | 1 шт. | — | |
|
| 41 | 1SN-23340-00-00 | Under Bracket Comp | 1 шт. | — | |
|
| 42 | 5PA-23346-00-00 | Bolt 1 | 4 шт. | — | |
|
| 43 | 5PA-2331E-10-00 | Guide, Cable | 1 шт. | — | |
|
| 44 | 4ES-2314F-00-00 | Protecter Guide Comp., 1 | 2 шт. | — | |
|
| 45 | 4V4-23194-L0-00 | Screw, Boot Band | 4 шт. | — | |
|
| 46 | 5PA-2314H-L0-00 | Protecter Comp., 1 | 1 шт. | — | |
|
| 47 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 48 | 5PA-2314J-L0-00 | Protecter Comp., 2 | 1 шт. | — | |
|
| 49 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 50 | 95024-06010-00 | . .Bolt, Flange (Small Head) | 6 шт. | — | |
|
| 51 | 5PA-23318-00-00 | Wire, Holder 1 | 1 шт. | — | |
|
| 52 | 95022-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 53 | 4ES-W003B-00-00 | Fork Seal Kit NOT SHOWN | 1 шт. | — | |
|
