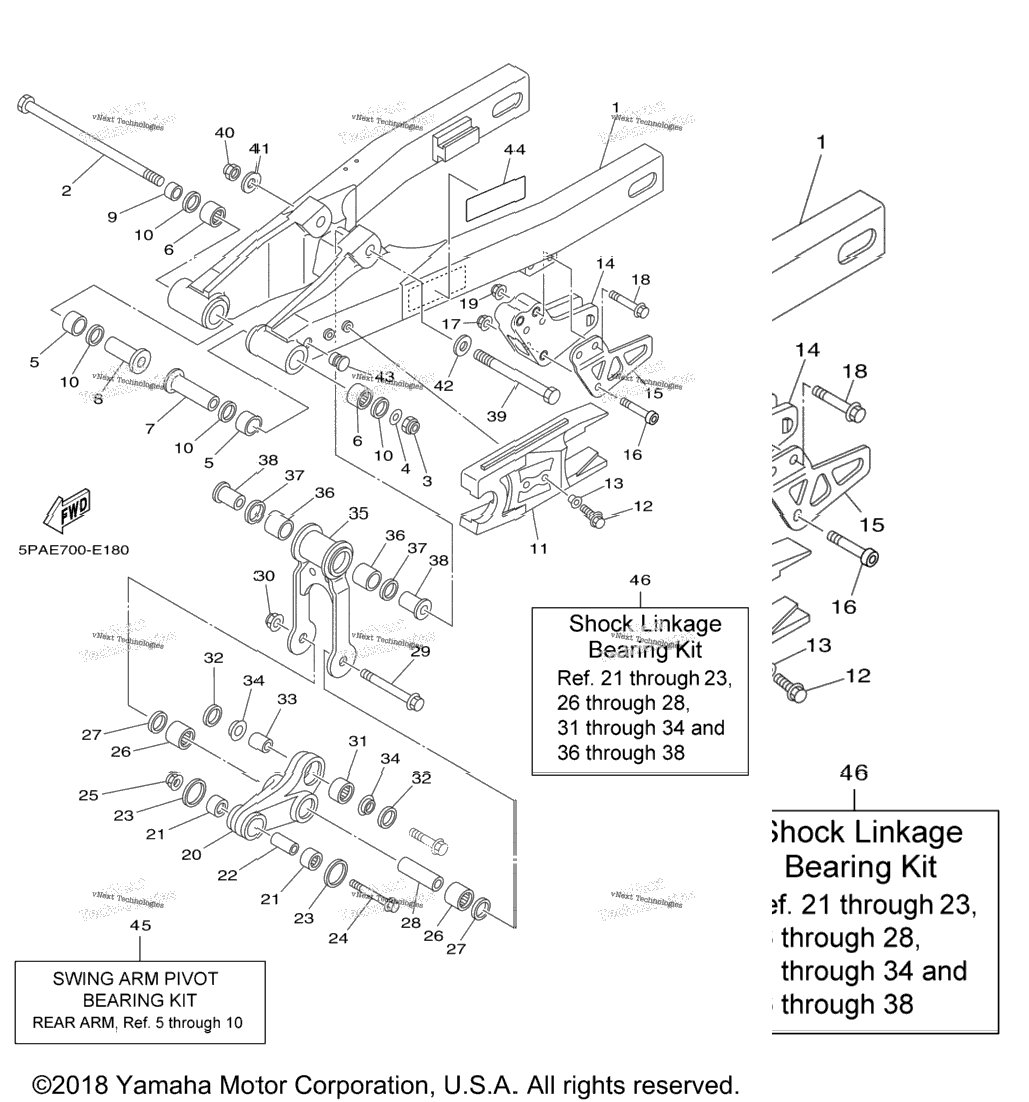

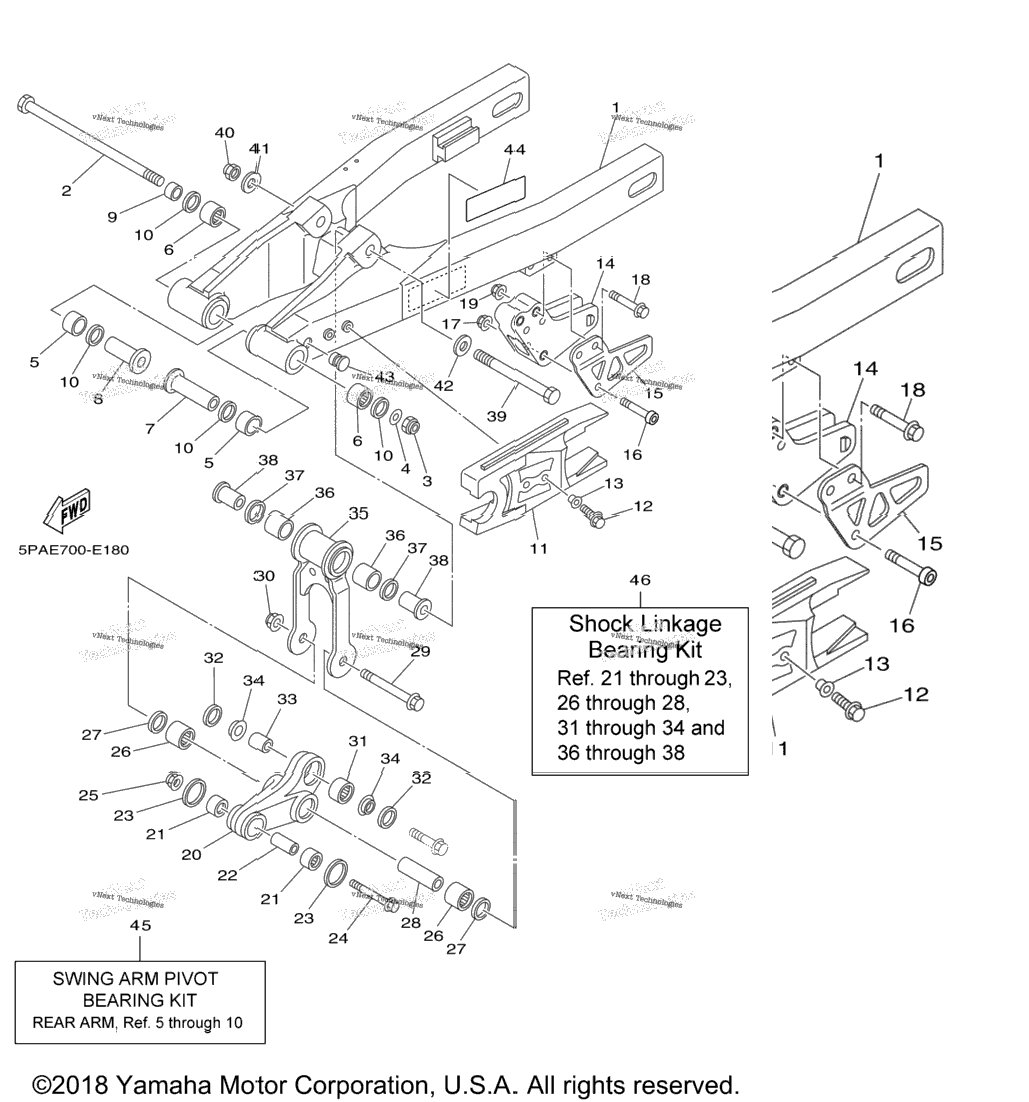

| 1 | 5PA-22110-00-00 | Rear Arm Comp | 1 шт. | — | |
|
| 2 | 22W-25181-01-00 | Axle, Wheel | 1 шт. | — | |
|
| 3 | 95612-12100-00 | Nut, U | 1 шт. | — | |
|
| 4 | 90201-12032-00 | Washer, Plate | 1 шт. | — | |
|
| 5 | 90385-17042-00 | Bush INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 6 | 93317-21746-00 | Bearing INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 7 | 90387-127J8-00 | Collar INCL. IN SWING ARM PIVOT BEARING KIT | 1 шт. | — | |
|
| 8 | 90387-127J7-00 | Collar INCL. IN SWING ARM PIVOT BEARING KIT | 1 шт. | — | |
|
| 9 | 90387-1200U-00 | Collar INCL. IN SWING ARM PIVOT BEARING KIT | 1 шт. | — | |
|
| 10 | 93109-17071-00 | Oil Seal INCL. IN SWING ARM PIVOT BEARING KIT | 4 шт. | — | |
|
| 11 | 5PA-22151-00-00 | Seal, Guard | 1 шт. | — | |
|
| 12 | 95022-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 13 | 90387-06180-00 | Collar | 2 шт. | — | |
|
| 14 | 5PA-22199-00-00 | Support, Chain | 1 шт. | — | |
|
| 15 | 5PA-22128-00-00 | Cover, Thrust 1 | 1 шт. | — | |
|
| 16 | 92012-06040-00 | Bolt, Button Head | 1 шт. | — | |
|
| 17 | 95602-06200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 18 | 95022-08050-00 | Bolt, Flange | 2 шт. | — | |
|
| 19 | 95602-08200-00 | .Nut, U Flange | 2 шт. | — | |
|
| 20 | 5PA-2217A-00-00 | Arm, Relay | 1 шт. | — | |
|
| 21 | 93315-21455-00 | Bearing INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 22 | 90380-10218-00 | Bush, Solid INCL. IN SHOCK LINKAGE BEARING KIT | 1 шт. | — | |
|
| 23 | 4ES-22129-00-00 | Cover, Thrust 2 INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 24 | 90105-10582-00 | Bolt, Flange | 1 шт. | — | |
|
| 25 | 95602-10200-00 | Nut, S/L Flange | 1 шт. | — | |
|
| 26 | 93317-31771-00 | Bearing INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 27 | 93101-17062-00 | Oil Seal INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 28 | 90380-12219-00 | Bush, Solid INCL. IN SHOCK LINKAGE BEARING KIT | 1 шт. | — | |
|
| 29 | 90109-12015-00 | Bolt | 1 шт. | — | |
|
| 30 | 95602-12200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 31 | 5PA-22176-00-00 | Bearing INCL. IN SHOCK LINKAGE BEARING KIT | 1 шт. | — | |
|
| 32 | 5PA-22475-00-00 | Seal, Dust INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 33 | 5PA-22184-00-00 | Bush INCL. IN SHOCK LINKAGE BEARING KIT | 1 шт. | — | |
|
| 34 | 5PA-22253-00-00 | Collar, Distance INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 35 | 4ES-2217F-00-00 | Rod, Connecting 1 | 1 шт. | — | |
|
| 36 | 93317-31771-00 | Bearing INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 37 | 93101-17062-00 | Oil Seal INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 38 | 90381-12091-00 | Bush, Solid INCL. IN SHOCK LINKAGE BEARING KIT | 2 шт. | — | |
|
| 39 | 90101-12755-00 | Bolt | 1 шт. | — | |
|
| 40 | 90185-12011-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 41 | 90201-12047-00 | Washer, Plate | 1 шт. | — | |
|
| 42 | 90201-12049-00 | Washer, Plate | 1 шт. | — | |
|
| 43 | 90338-10150-00 | Plug | 2 шт. | — | |
|
| 44 | 3RV-21668-A0-00 | Label, Tire | 1 шт. | — | |
|
| 45 | 1SN-W002C-00-00 | Swing Arm Pivot Bearing Kit | 1 шт. | — | |
|
| 46 | 1SN-W002E-00-00 | Shock Linkage Bearing Kit | 0 шт. | — | |
|
