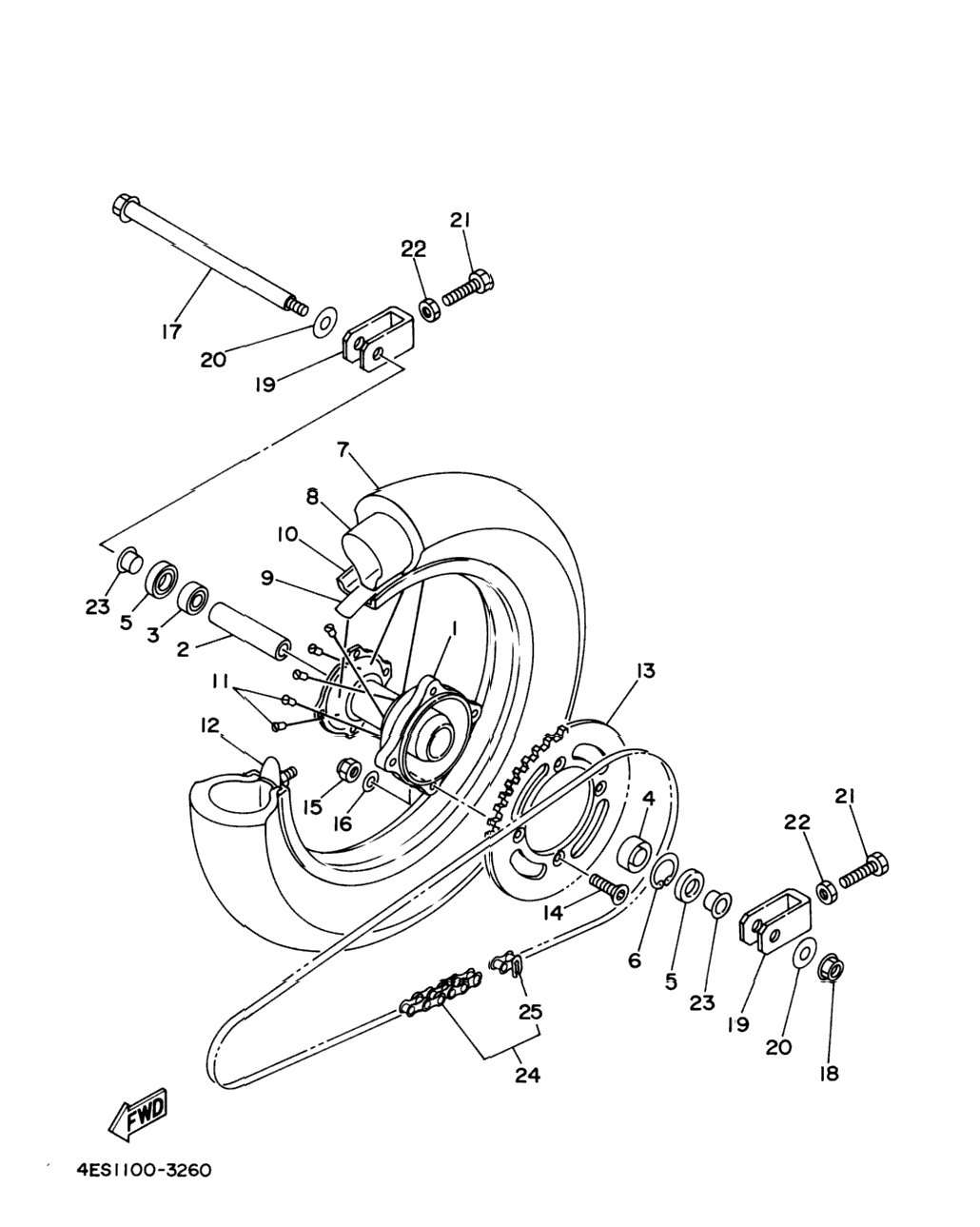

| 1 | 4ES-25311-00-00 | Hub, Rear | 1 шт. | — | |
|
| 2 | 4ES-25383-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 3 | 93306-00203-00 | Bearing | 1 шт. | — | |
|
| 4 | 93306-20203-00 | Bearing | 1 шт. | — | |
|
| 5 | 93102-20009-00 | Oil Seal | 2 шт. | — | |
|
| 6 | 99009-35500-00 | Circlip | 1 шт. | — | |
|
| 7 | 94109-14019-00 | Tire (90/100-14 49M Mx51) DUNLOP | 0 шт. | — | |
|
| 8 | 94208-14285-00 | Tube (80-90/100-14M/C Tr4) DUNLOP | 1 шт. | — | |
|
| 9 | 94308-14165-00 | Band, Rim (22-14) DUNLOP | 1 шт. | — | |
|
| 10 | 94416-14005-00 | Rim (1.60-14) | 1 шт. | — | |
|
| 11 | 4ES-25304-20-00 | Spoke Set, Rear | 1 шт. | — | |
|
| 12 | 5X2-25394-00-00 | Spacer, Bead | 1 шт. | — | |
|
| 13 | 5PA-25448-00-00 | Sprocket, Driven (48T) AP | 1 шт. | — | |
|
| 14 | 5PA-25446-00-00 | Sprocket, Driven (46T) AP | 1 шт. | — | |
|
| 15 | 5PA-25449-00-00 | Sprocket, Driven (49T) AP | 1 шт. | — | |
|
| 16 | 4ES-25447-20-00 | Sprocket, Driven (47T) STD AFAM | 1 шт. | — | |
|
| 17 | 90152-08001-00 | Screw, Countersunk | 4 шт. | — | |
|
| 18 | 90185-08008-00 | Nut, Self-Locking | 4 шт. | — | |
|
| 19 | 90201-08043-00 | Washer, Plate | 4 шт. | — | |
|
| 20 | 4ES-25381-01-00 | Axle, Wheel | 1 шт. | — | |
|
| 21 | 90185-14012-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 22 | 5PA-25388-00-00 | Puller, Chain 1 | 2 шт. | — | |
|
| 23 | 90201-15027-00 | Washer, Plate | 2 шт. | — | |
|
| 24 | 90101-08060-00 | Bolt | 2 шт. | — | |
|
| 25 | 95302-08700-00 | Nut, Hexagon | 2 шт. | — | |
|
| 26 | 4ES-25383-10-00 | Collar, Wheel | 2 шт. | — | |
|
| 27 | 9Y582-43117-00 | Chain (Did 428Ds 118Ll) | 1 шт. | — | |
|
| 28 | 94682-43001-00 | . . Joint, Chain (Did 428Ds-Rj) | 1 шт. | — | |
|
