Fuel Tank Front Cover (Gsx1300rrqz)

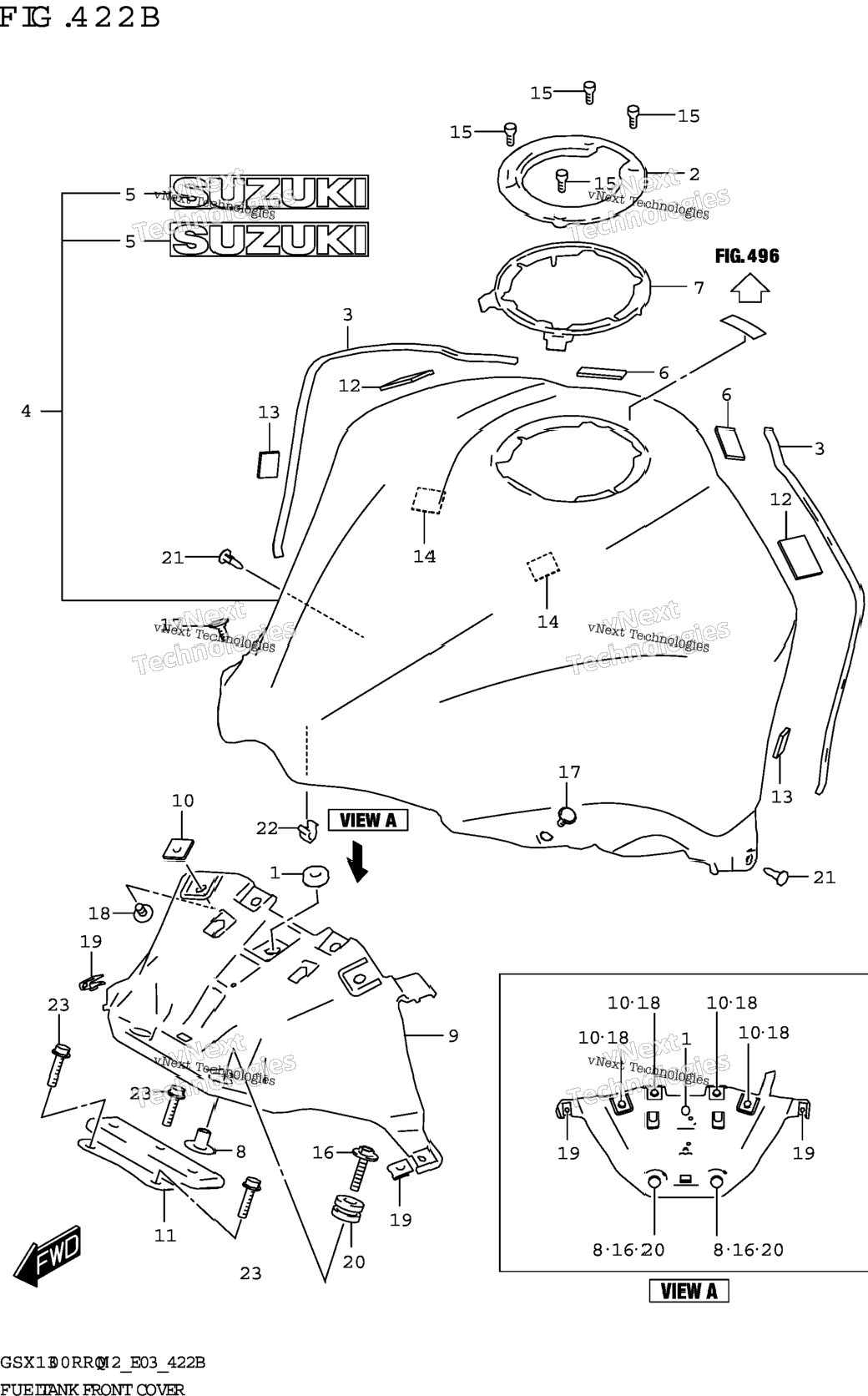

Схема Fuel Tank Front Cover (Gsx1300rrqz)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 44173-14J00 | CUSHION,FUEL TANK COVER SIDE | 1 шт. | — | |
| 2 | 44211-10L00 | COVER,FUEL TANK CAP | 1 шт. | — | |
| 3 | 44277-10L00 | CUSHION,FUEL TANK FR COVER | 2 шт. | — | |
| 4 | 44290-10L00-QKA | COVER,FUEL TANK FR (SILVER) | 1 шт. | — | |
| 5 | 68111-47C10-PGZ | .EMBLEM,"SUZUKI" (GRAY) | 2 шт. | — | |
| 6 | 44292-10L00 | CUSHION,FUEL TANK COVER RR | 2 шт. | — | |
| 7 | 44295-10L00 | RUBBER,FUEL TANK COVER | 1 шт. | — | |
| 8 | 44512-04K00 | SPACER,FUEL TANK FRONT | 2 шт. | — | |
| 9 | 44521-10L00 | BRACKET,FUEL TANK FRONT | 1 шт. | — | |
| 10 | 44523-47H00 | NUT (M6) | 4 шт. | — | |
| 11 | 44530-10L00 | BRACKET,FUEL TANK FR | 1 шт. | — | |
| 12 | 44572-13G00 | .FASTENER (33X25X2.6) | 2 шт. | — | |
| 13 | 44572-44G00 | FASTENER (20X15X2.6) | 2 шт. | — | |
| 14 | 47123-17K00 | .CUSHION (20X20X1) | 2 шт. | — | |
| 15 | 09106-05026 | BOLT (5X12) | 4 шт. | — | |
| 16 | 09116-06171 | BOLT (6X30) | 2 шт. | — | |
| 17 | 09139-05092 | SCREW (5X13) | 2 шт. | — | |
| 18 | 09139-06181 | SCREW (6X10) | 4 шт. | — | |
| 19 | 09148-05052 | NUT (M5) | 2 шт. | — | |
| 20 | 09320-10050 | CUSHION (10X22X13) | 2 шт. | — | |
| 21 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
| 22 | 09409-08326 | CLIP (10.5X14.3) | 1 шт. | — | |
| 23 | 01550-0625B | BOLT | 3 шт. | — | |
