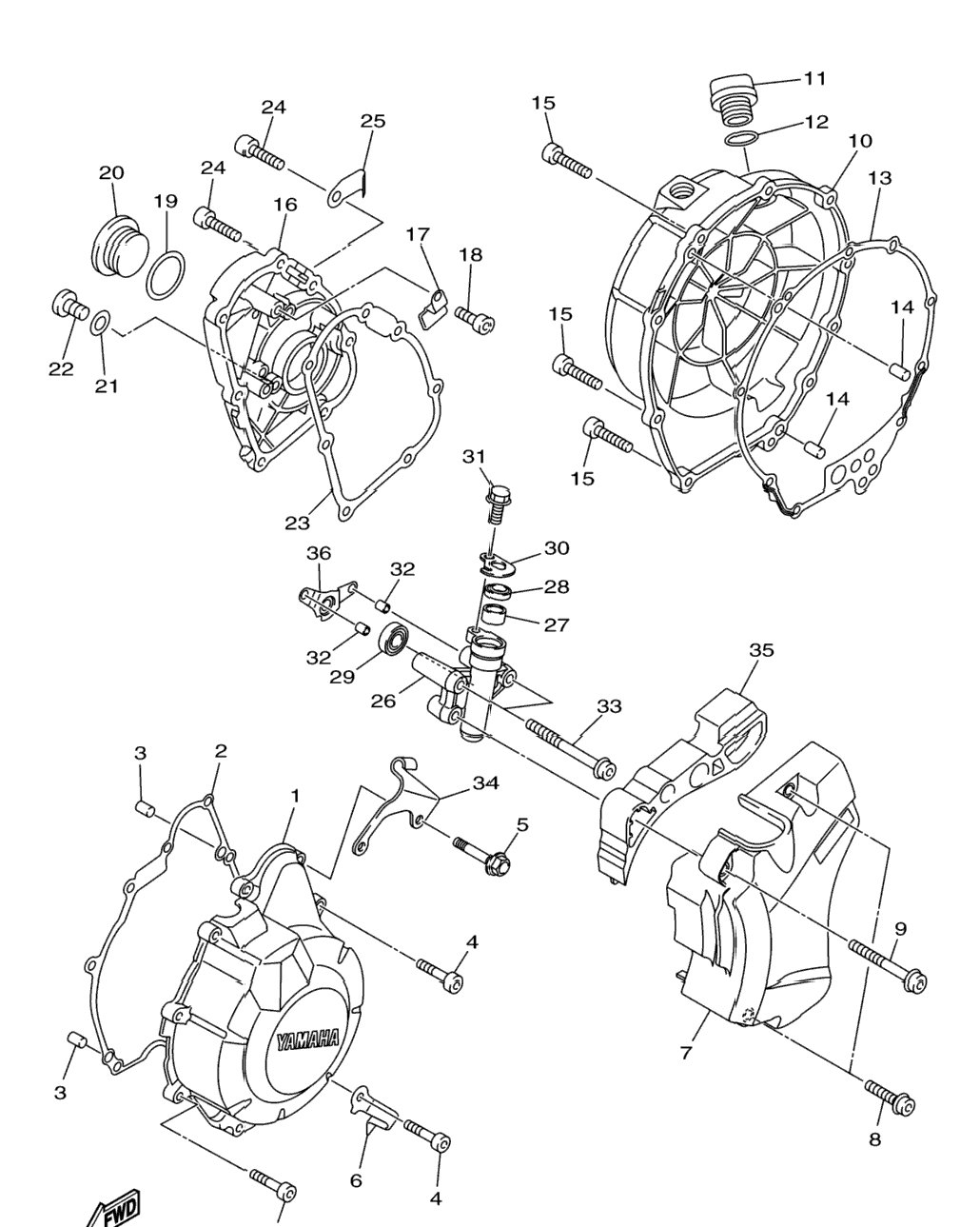

| 1 | 36P-15411-01-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 5VX-15451-01-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 3 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 5 | 90105-06194-00 | Bolt, Flange | 2 шт. | — | |
|
| 6 | 90465-08045-00 | Clamp | 1 шт. | — | |
|
| 7 | 20S-15418-00-00 | Cover, Chain Case | 1 шт. | — | |
|
| 8 | 90110-06329-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 9 | 90110-06330-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 10 | 36P-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 11 | 3F9-15362-10-00 | Plug, Oil Level | 1 шт. | — | |
|
| 12 | 93210-27194-00 | O-Ring | 1 шт. | — | |
|
| 13 | 20S-15461-00-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 14 | 93608-17263-00 | Pin, Dowel | 2 шт. | — | |
|
| 15 | 90110-06295-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 15 | 90110-06295-00 | Bolt, Hexagon Socket Head | 10 шт. | — | |
|
| 16 | 36P-15416-00-00 | Cover, Oil Pump | 1 шт. | — | |
|
| 17 | 90465-14011-00 | Clamp | 1 шт. | — | |
|
| 18 | 90110-06161-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 19 | 93210-32172-00 | O-Ring | 1 шт. | — | |
|
| 20 | 90340-32004-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 21 | 90430-08143-00 | .Gasket | 1 шт. | — | |
|
| 22 | 92014-08014-00 | Bolt, Button Head | 1 шт. | — | |
|
| 23 | 20S-15456-00-00 | Gasket, Oil Pump Cover 1 | 1 шт. | — | |
|
| 24 | 90110-06274-00 | .Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 25 | 90465-10042-00 | Clamp | 1 шт. | — | |
|
| 26 | 20S-15425-10-00 | Cover, Generator 2 | 1 шт. | — | |
|
| 27 | 93317-11295-00 | Bearing | 1 шт. | — | |
|
| 28 | 93102-12224-00 | Oil Seal | 1 шт. | — | |
|
| 29 | 93109-08061-00 | Oil Seal | 1 шт. | — | |
|
| 30 | 20S-16384-00-00 | Plate, Seat | 1 шт. | — | |
|
| 31 | 95022-06014-00 | Bolt, Flange | 1 шт. | — | |
|
| 32 | 99590-08012-00 | .Pin, Dowel | 2 шт. | — | |
|
| 33 | 90110-06307-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 34 | 20S-15441-00-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 35 | 20S-15377-00-00 | Guide, Inlet | 1 шт. | — | |
|
| 36 | 20S-15185-00-00 | Protecter, Oil Seal | 1 шт. | — | |
|
