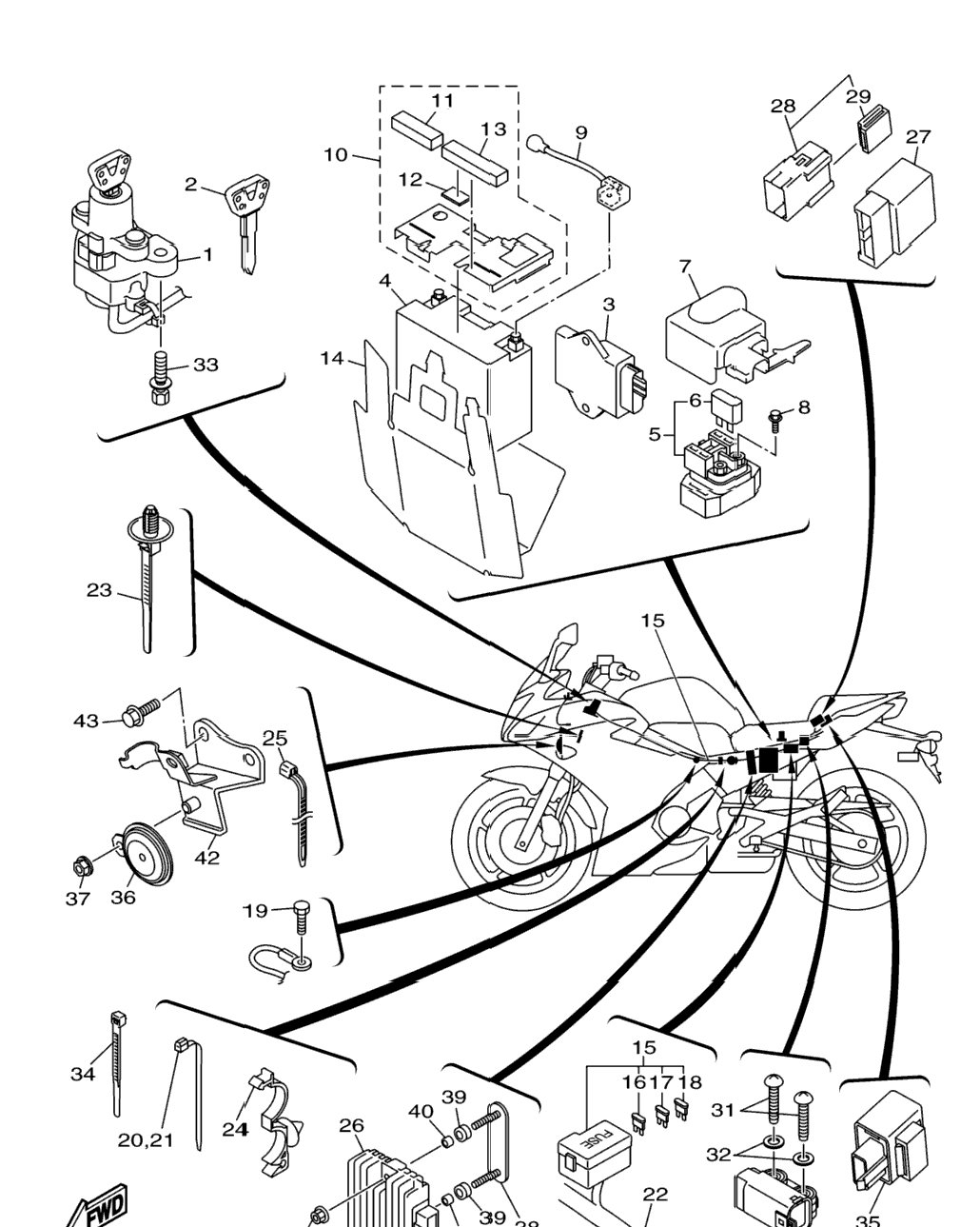

| 1 | 36P-82501-00-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 2 | 4BH-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 3 | 36P-8591A-10-00 | Engine Control Unit Assy | 1 шт. | — | |
|
| 4 | 4TX-82100-02-00 | Battery Assy (Gs Gt12b-4) | 1 шт. | — | |
|
| 5 | 4SV-81940-12-00 | Starter Relay Assy (Rc19-015) | 1 шт. | — | |
|
| 6 | 1AE-82151-00-00 | . .Fuse (30A-Bl) | 2 шт. | — | |
|
| 7 | 20S-82119-00-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 8 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 9 | 20S-82115-00-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 10 | 20S-82160-00-00 | Battery Cover Assy | 1 шт. | — | |
|
| 11 | 5VK-21746-00-00 | . .Damper | 1 шт. | — | |
|
| 12 | 5HN-2139X-00-00 | . Damper | 1 шт. | — | |
|
| 13 | 90520-15002-00 | . .Damper, Plate | 1 шт. | — | |
|
| 14 | 20S-82122-01-00 | Seat, Battery | 1 шт. | — | |
|
| 15 | 36P-82590-00-00 | Wire Harness Assy | 1 шт. | — | |
|
| 16 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 3 шт. | — | |
|
| 17 | 5JJ-82151-20-00 | . .Fuse (20A-Bl) | 2 шт. | — | |
|
| 18 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 4 шт. | — | |
|
| 19 | 91380-06012-00 | Bolt | 1 шт. | — | |
|
| 20 | 90464-13077-00 | Clamp | 1 шт. | — | |
|
| 21 | 90464-13077-00 | Clamp | 1 шт. | — | |
|
| 22 | 90464-20010-00 | Clamp | 2 шт. | — | |
|
| 23 | 90464-20213-00 | Clamp | 2 шт. | — | |
|
| 24 | 90464-20010-00 | Clamp | 1 шт. | — | |
|
| 25 | 90464-15195-00 | Clamp | 1 шт. | — | |
|
| 26 | 5SL-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 27 | 5VK-81950-40-00 | Relay Assy (5Vk-40) | 1 шт. | — | |
|
| 28 | 1ST-81950-00-00 | Relay Assy (1St-00) | 2 шт. | — | |
|
| 29 | 5JJ-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 30 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 31 | 90160-04009-00 | Screw, Round Tapping | 2 шт. | — | |
|
| 32 | 90201-04030-00 | Washer, Plate | 2 шт. | — | |
|
| 33 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
| 34 | 90465-15011-00 | Clamp | 1 шт. | — | |
|
| 35 | 3GM-83350-01-00 | Flasher Relay Assy | 1 шт. | — | |
|
| 36 | 20S-83371-00-00 | Horn | 1 шт. | — | |
|
| 37 | 95702-08500-00 | Nut, Flange | 1 шт. | — | |
|
| 38 | 20S-21689-00-00 | Bracket, Rear Stay 2 | 1 шт. | — | |
|
| 39 | 90480-16007-00 | Grommet | 2 шт. | — | |
|
| 40 | 90387-064T3-00 | Collar | 2 шт. | — | |
|
| 41 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 42 | 20S-23377-00-00 | Bracket, Horn | 1 шт. | — | |
|
| 43 | 95802-06016-00 | Bolt, Flange | 2 шт. | — | |
|
