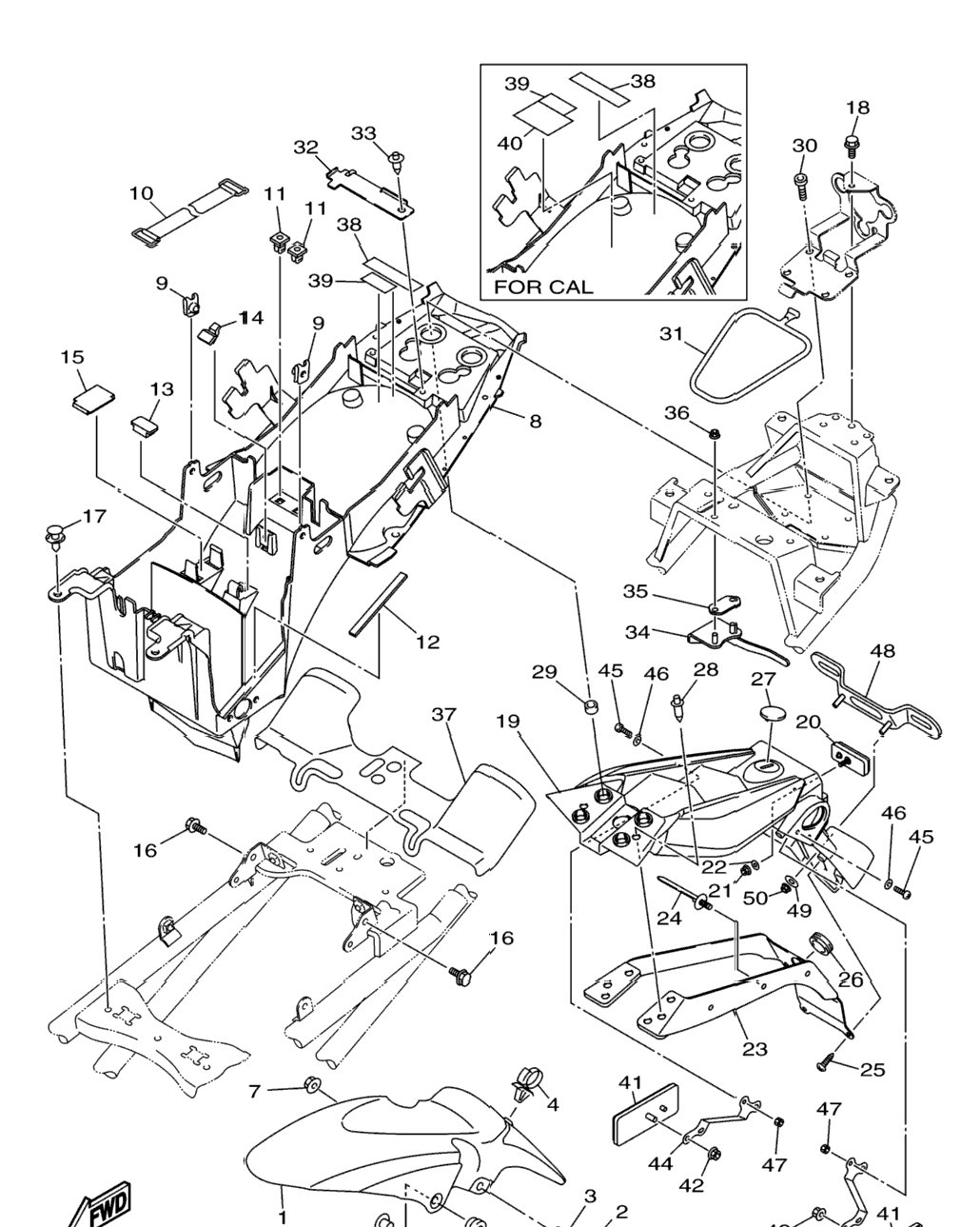

| 1 | 5VX-21511-A0-P3 | Fender, Front SMX | 1 шт. | — | |
|
| 2 | 90387-065J6-00 | .Collar | 4 шт. | — | |
|
| 3 | 90480-12072-00 | Grommet | 4 шт. | — | |
|
| 4 | 90464-18002-00 | Clamp | 1 шт. | — | |
|
| 5 | 90110-06202-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 6 | 95024-06030-00 | Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 7 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 8 | 20S-21611-00-00 | Fender, Rear | 0 шт. | — | |
|
| 9 | 90183-06053-00 | Nut, Spring | 2 шт. | — | |
|
| 10 | 120-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 11 | 90480-07003-00 | Grommet | 2 шт. | — | |
|
| 12 | 5JW-2174X-00-00 | Damper | 1 шт. | — | |
|
| 13 | 20S-216A2-00-00 | Seal, 2 | 1 шт. | — | |
|
| 14 | 20S-216A3-00-00 | Seal, 3 | 1 шт. | — | |
|
| 15 | 20S-216A4-00-00 | Seal, 4 | 1 шт. | — | |
|
| 16 | 95802-06012-00 | Bolt, Flange | 0 шт. | — | |
|
| 17 | 90269-07010-00 | ..Rivet | 2 шт. | — | |
|
| 18 | 95822-06010-00 | Bolt, Flange | 1 шт. | — | |
|
| 19 | 20S-21629-10-00 | Guard, Mud | 1 шт. | — | |
|
| 20 | 3Y6-85130-02-00 | Rear Reflector Assy | 1 шт. | — | |
|
| 21 | 95602-05100-00 | .Nut, U | 1 шт. | — | |
|
| 22 | 90201-05043-00 | Washer, Plate | 1 шт. | — | |
|
| 23 | 20S-21688-01-00 | Bracket, Rear Stay | 1 шт. | — | |
|
| 24 | 90464-31001-00 | Clamp | 3 шт. | — | |
|
| 25 | 90160-05012-00 | Screw, Round Tapping | 4 шт. | — | |
|
| 26 | 90480-23345-00 | Grommet | 1 шт. | — | |
|
| 27 | 4KN-2836B-10-00 | Tuning Fork Mark | 1 шт. | — | |
|
| 28 | 90269-07001-00 | Rivet | 2 шт. | — | |
|
| 29 | 90387-06232-00 | Collar | 4 шт. | — | |
|
| 30 | 91312-08025-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 31 | 3YX-21376-00-00 | Band, Tool | 1 шт. | — | |
|
| 32 | 20S-21677-01-00 | Plate, Fitting 3 | 0 шт. | — | |
|
| 33 | 90269-06008-00 | Rivet | 1 шт. | — | |
|
| 34 | 36P-2115J-00-00 | Bracket, Helmet Hanger | 1 шт. | — | |
|
| 35 | 20S-24792-00-00 | Plate | 1 шт. | — | |
|
| 36 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 37 | 36P-21639-00-00 | Damper 2 | 1 шт. | — | |
|
| 38 | 3JJ-28446-A1-00 | Label, Caution | 1 шт. | — | |
|
| 39 | 3TB-24877-A0-00 | Label, Caution | 1 шт. | — | |
|
| 40 | 5VX-21684-00-00 | Plate, Routing FOR CALIFORNIA | 0 шт. | — | |
|
| 41 | 3Y6-85130-02-00 | Rear Reflector Assy | 2 шт. | — | |
|
| 42 | 95602-05200-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 43 | 36P-2164F-00-00 | Stay 1 | 1 шт. | — | |
|
| 44 | 36P-2164G-00-00 | Stay 2 | 1 шт. | — | |
|
| 45 | 98502-04012-00 | Screw, Pan Head | 0 шт. | — | |
|
| 46 | 92902-04600-00 | Washer, Plate | 4 шт. | — | |
|
| 47 | 95602-04100-00 | Nut, U | 4 шт. | — | |
|
| 48 | 39P-84751-00-00 | Bracket, License | 1 шт. | — | |
|
| 49 | 90201-06088-00 | Washer, Plate | 2 шт. | — | |
|
| 50 | 95602-06100-00 | Nut, S/L | 2 шт. | — | |
|
