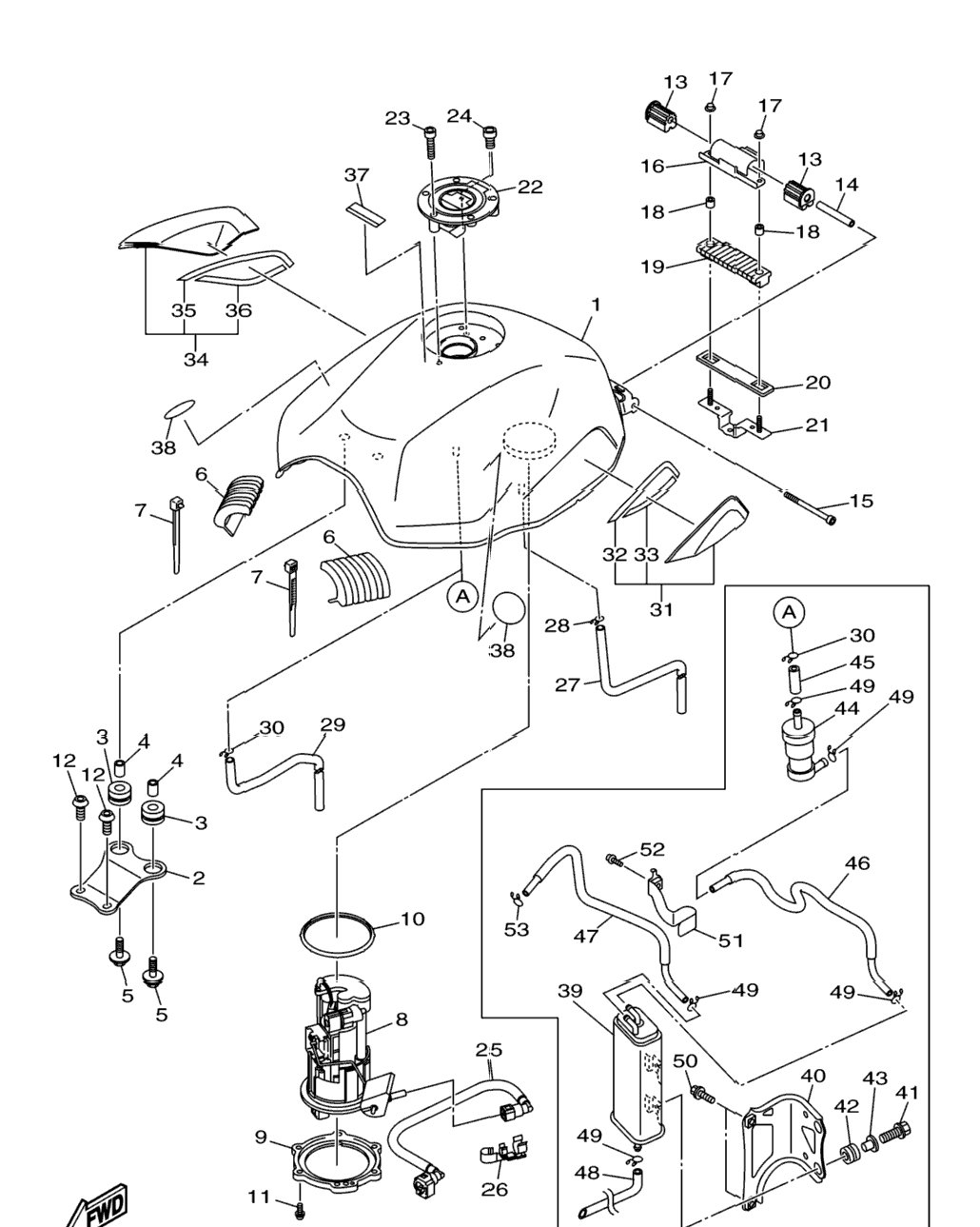

| 1 | 20S-YK241-00-P0 | Fuel Tank Comp SMX | 1 шт. | — | |
|
| 2 | 20S-24191-00-00 | Bracket, Fuel Tank 1 | 1 шт. | — | |
|
| 3 | 90480-16010-00 | Grommet | 2 шт. | — | |
|
| 4 | 90387-06068-00 | Collar | 2 шт. | — | |
|
| 5 | 90119-06264-00 | Bolt, With Washer | 2 шт. | — | |
|
| 6 | 20S-24183-00-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 7 | 90465-15011-00 | Clamp | 4 шт. | — | |
|
| 8 | 20S-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 9 | 13S-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 10 | 19B-24486-01-00 | O-Ring | 1 шт. | — | |
|
| 11 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 12 | 90111-06127-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 13 | 5VX-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 14 | 90387-061W6-00 | Collar | 1 шт. | — | |
|
| 15 | 91312-06090-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 16 | 20S-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 17 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 18 | 90387-06299-00 | Collar | 2 шт. | — | |
|
| 19 | 20S-24181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 20 | 20S-2414H-00-00 | Damper, Plate 1 | 1 шт. | — | |
|
| 21 | 20S-21296-00-00 | Nut | 1 шт. | — | |
|
| 22 | 39P-24602-10-00 | Cap Assy | 1 шт. | — | |
|
| 23 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 24 | 91317-05010-00 | Bolt, Hex. Socket Head | 1 шт. | — | |
|
| 25 | 5VX-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 26 | 90464-16005-00 | Clamp | 1 шт. | — | |
|
| 27 | 90445-106J2-00 | Hose (L650) | 1 шт. | — | |
|
| 28 | 90467-090A2-00 | Clip | 1 шт. | — | |
|
| 29 | 90445-106J2-00 | Hose (L650) | 1 шт. | — | |
|
| 30 | 90467-090A2-00 | Clip | 1 шт. | — | |
|
| 31 | 90467-100A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 32 | 20S-24106-01-00 | Tank Side Cover Assy 1 | 1 шт. | — | |
|
| 33 | 20S-2173T-10-00 | . .Tape 1 | 1 шт. | — | |
|
| 34 | 20S-2173T-20-00 | . .Tape 1 | 1 шт. | — | |
|
| 35 | 20S-24108-01-00 | Tank Side Cover Assy 2 | 1 шт. | — | |
|
| 36 | 20S-2173U-10-00 | . .Tape 2 | 1 шт. | — | |
|
| 37 | 20S-2173U-20-00 | . .Tape 2 | 1 шт. | — | |
|
| 38 | 1TP-2118K-A1-00 | Label, Caution | 1 шт. | — | |
|
| 39 | 5JW-2413B-00-00 | Emblem | 2 шт. | — | |
|
| 40 | 5C7-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 41 | 36P-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 шт. | — | |
|
| 42 | 95802-06016-00 | Bolt, Flange FOR CALIFORNIA | 0 шт. | — | |
|
| 43 | 90480-13163-00 | Grommet FOR CALIFORNIA | 0 шт. | — | |
|
| 44 | 90387-062L2-00 | Collar FOR CALIFORNIA | 0 шт. | — | |
|
| 45 | 5RB-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 46 | 90445-11065-00 | Hose (L30) FOR CALIFORNIA | 0 шт. | — | |
|
| 47 | 36P-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 шт. | — | |
|
| 48 | 36P-14466-00-00 | Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 49 | 36P-24315-00-00 | Pipe 5 FOR CALIFORNIA | 0 шт. | — | |
|
| 50 | 90467-100A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 51 | 95802-08016-00 | Bolt, Flange FOR CALIFORNIA | 0 шт. | — | |
|
| 52 | 36P-24667-00-00 | Guide, Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 53 | 95802-06010-00 | Bolt, Flange FOR CALIFORNIA | 0 шт. | — | |
|
| 54 | 90467-100A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
