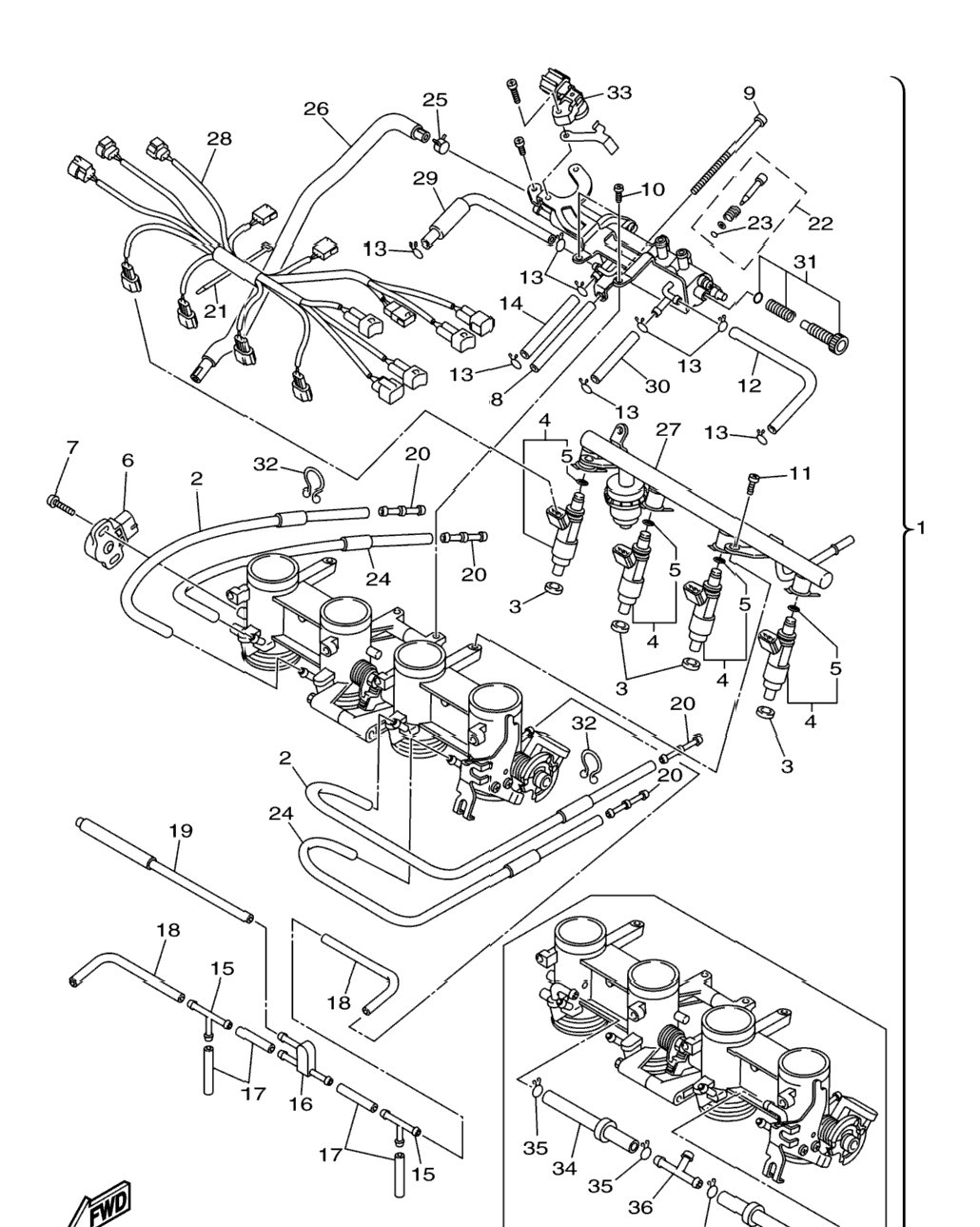

| 1 | 20S-13750-20-00 | Throttle Body Assy FOR U49 | 1 шт. | — | |
|
| 2 | 36P-13750-10-00 | Throttle Body Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 3 | 5VX-14348-00-00 | . .Pipe 1 | 2 шт. | — | |
|
| 4 | 8FP-13556-00-00 | . .Rubber, Injector | 4 шт. | — | |
|
| 5 | 5VX-13761-00-00 | . .Injector | 4 шт. | — | |
|
| 6 | 5PS-14147-00-00 | . . ..O-Ring | 1 шт. | — | |
|
| 7 | 2D1-85885-00-00 | . Throttle Sensor Assy | 1 шт. | — | |
|
| 8 | 4KM-24453-00-00 | . .Screw | 2 шт. | — | |
|
| 9 | 5VX-14149-00-00 | . .Pipe | 1 шт. | — | |
|
| 10 | 5VX-14565-00-00 | . .Screw | 1 шт. | — | |
|
| 11 | 98507-05010-00 | . Screw, Pan Head | 2 шт. | — | |
|
| 12 | 98507-06012-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 13 | 5VX-14396-00-00 | . .Pipe | 1 шт. | — | |
|
| 14 | 3UH-14937-00-00 | . .Clip | 8 шт. | — | |
|
| 15 | 5VX-14987-00-00 | . .Hose | 1 шт. | — | |
|
| 16 | 68V-24376-00-00 | . .Pipe, Joint 1 | 2 шт. | — | |
|
| 17 | 3XV-14251-00-00 | . .Nipple | 1 шт. | — | |
|
| 18 | 5FL-14348-10-00 | . .Pipe 1 | 4 шт. | — | |
|
| 19 | 68V-13533-00-00 | . .Hose, Vacuum Sensing 4 | 2 шт. | — | |
|
| 20 | 5VX-1410E-00-00 | . .Hose | 1 шт. | — | |
|
| 21 | 5PW-14251-00-00 | . .Nipple | 4 шт. | — | |
|
| 22 | 4KM-14137-00-00 | . .Clip | 1 шт. | — | |
|
| 23 | 5JW-14104-00-00 | . .Air Screw Set | 4 шт. | — | |
|
| 24 | 3H1-14147-00-00 | . . .O-Ring | 1 шт. | — | |
|
| 25 | 5VX-14349-00-00 | . .Pipe | 2 шт. | — | |
|
| 26 | 90467-11090-00 | . Clip | 1 шт. | — | |
|
| 27 | 20S-1243E-00-00 | . .Hose 2 | 1 шт. | — | |
|
| 28 | 5VX-13160-00-00 | . .Delivery Pipe Assy 1 | 1 шт. | — | |
|
| 29 | 20S-82386-10-00 | . .Extension, Wire Harness | 1 шт. | — | |
|
| 30 | 5VX-13533-00-00 | . .Hose, Vacuum Sensing 4 | 1 шт. | — | |
|
| 31 | 5VX-14807-00-00 | . .Hose | 1 шт. | — | |
|
| 32 | 5VX-14503-00-00 | . .Adjust Screw Set | 1 шт. | — | |
|
| 33 | 90464-23041-00 | . Clamp | 2 шт. | — | |
|
| 34 | 5S7-82380-00-00 | . .Sensor, Pressure | 1 шт. | — | |
|
| 35 | 5VX-14465-01-00 | . . .Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 36 | 90467-10008-00 | . . Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 37 | 90413-08012-00 | . . Way 3 FOR CALIFORNIA | 0 шт. | — | |
|
