Radiator Hose

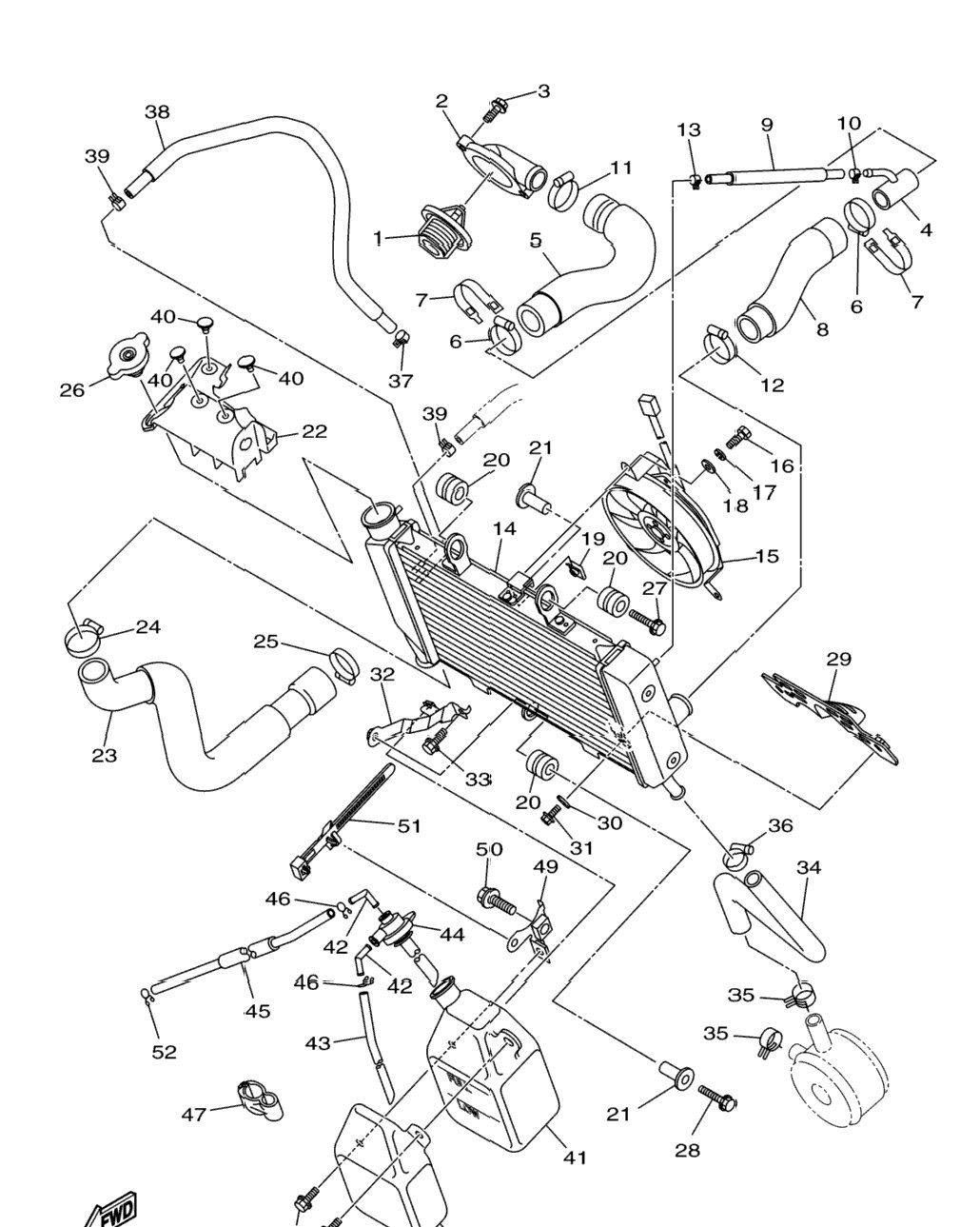

Схема Radiator Hose
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 5SL-12410-00-00 | Thermostat Assy | 1 шт. | — | |
|
| 2 | 5VX-12413-00-00 | .Cover, Thermostat | 1 шт. | — | |
|
| 3 | 90105-06164-00 | Bolt, Flange | 2 шт. | — | |
|
| 4 | 20S-12582-01-00 | Joint, Hose 2 | 1 шт. | — | |
|
| 5 | 20S-12578-00-00 | Hose 3 | 1 шт. | — | |
|
| 6 | 90450-32003-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 7 | 20S-1246E-00-00 | Cover 2 | 2 шт. | — | |
|
| 8 | 20S-12551-00-00 | Hose 7 | 1 шт. | — | |
|
| 9 | 90445-12012-00 | Hose | 1 шт. | — | |
|
| 10 | 90467-11090-00 | Clip | 1 шт. | — | |
|
| 11 | 90450-32006-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 12 | 90450-32003-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 13 | 90467-11090-00 | Clip | 1 шт. | — | |
|
| 14 | 20S-12461-01-00 | Radiator Comp | 1 шт. | — | |
|
| 15 | 20S-12405-20-00 | Blower Assy | 1 шт. | — | |
|
| 16 | 97307-06012-00 | Bolt | 3 шт. | — | |
|
| 17 | 92907-06100-00 | Washer, Spring | 3 шт. | — | |
|
| 18 | 92907-06600-00 | Washer, Plate | 3 шт. | — | |
|
| 19 | 1AA-12535-00-00 | Plate | 3 шт. | — | |
|
| 20 | 90480-15363-00 | Grommet | 3 шт. | — | |
|
| 21 | 90387-0614M-00 | Collar | 2 шт. | — | |
|
| 22 | 36P-2117U-00-00 | Cover 6 | 1 шт. | — | |
|
| 23 | 20S-12579-00-00 | Hose 4 | 1 шт. | — | |
|
| 24 | 90450-32003-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 25 | 90450-32006-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 26 | 22W-12462-00-00 | Cap, Radiator | 1 шт. | — | |
|
| 27 | 95802-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 28 | 95802-06030-00 | Bolt, Flange | 1 шт. | — | |
|
| 29 | 20S-12535-00-00 | Plate | 1 шт. | — | |
|
| 30 | 90201-06025-00 | Washer, Plate | 2 шт. | — | |
|
| 31 | 95824-06012-00 | Bolt, Flange | 2 шт. | — | |
|
| 32 | 20S-1244E-00-00 | Bracket 1 | 1 шт. | — | |
|
| 33 | 95822-06012-00 | .Bolt, Flange | 0 шт. | — | |
|
| 34 | 20S-12589-00-00 | Hose 6 | 1 шт. | — | |
|
| 35 | 90467-200A0-00 | Clip | 2 шт. | — | |
|
| 36 | 90450-22017-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 37 | 90467-11090-00 | Clip | 1 шт. | — | |
|
| 38 | 90445-12009-00 | Hose | 1 шт. | — | |
|
| 39 | 90467-11090-00 | Clip | 2 шт. | — | |
|
| 40 | 90269-05074-00 | Rivet | 3 шт. | — | |
|
| 41 | 4P5-21871-00-00 | Tank, Recovery | 1 шт. | — | |
|
| 42 | 26H-21828-00-00 | Elbow | 2 шт. | — | |
|
| 43 | 90445-081F2-00 | Hose (L200) | 1 шт. | — | |
|
| 44 | 20S-21875-10-00 | Cap | 1 шт. | — | |
|
| 45 | 90445-08025-00 | Hose | 1 шт. | — | |
|
| 46 | 90467-08075-00 | Clip | 2 шт. | — | |
|
| 47 | 90464-10233-00 | Clamp | 1 шт. | — | |
|
| 48 | 4P5-2172W-00-00 | Cover | 1 шт. | — | |
|
| 49 | 4P5-21873-00-00 | Bracket, Recovery Tank | 1 шт. | — | |
|
| 50 | 95822-10020-00 | Bolt, Flange | 1 шт. | — | |
|
| 51 | 90464-07012-00 | .Clamp | 1 шт. | — | |
|
| 52 | 90467-08075-00 | Clip | 1 шт. | — | |
|
| 53 | 90105-060A6-00 | Bolt, Flange | 2 шт. | — | |
|
