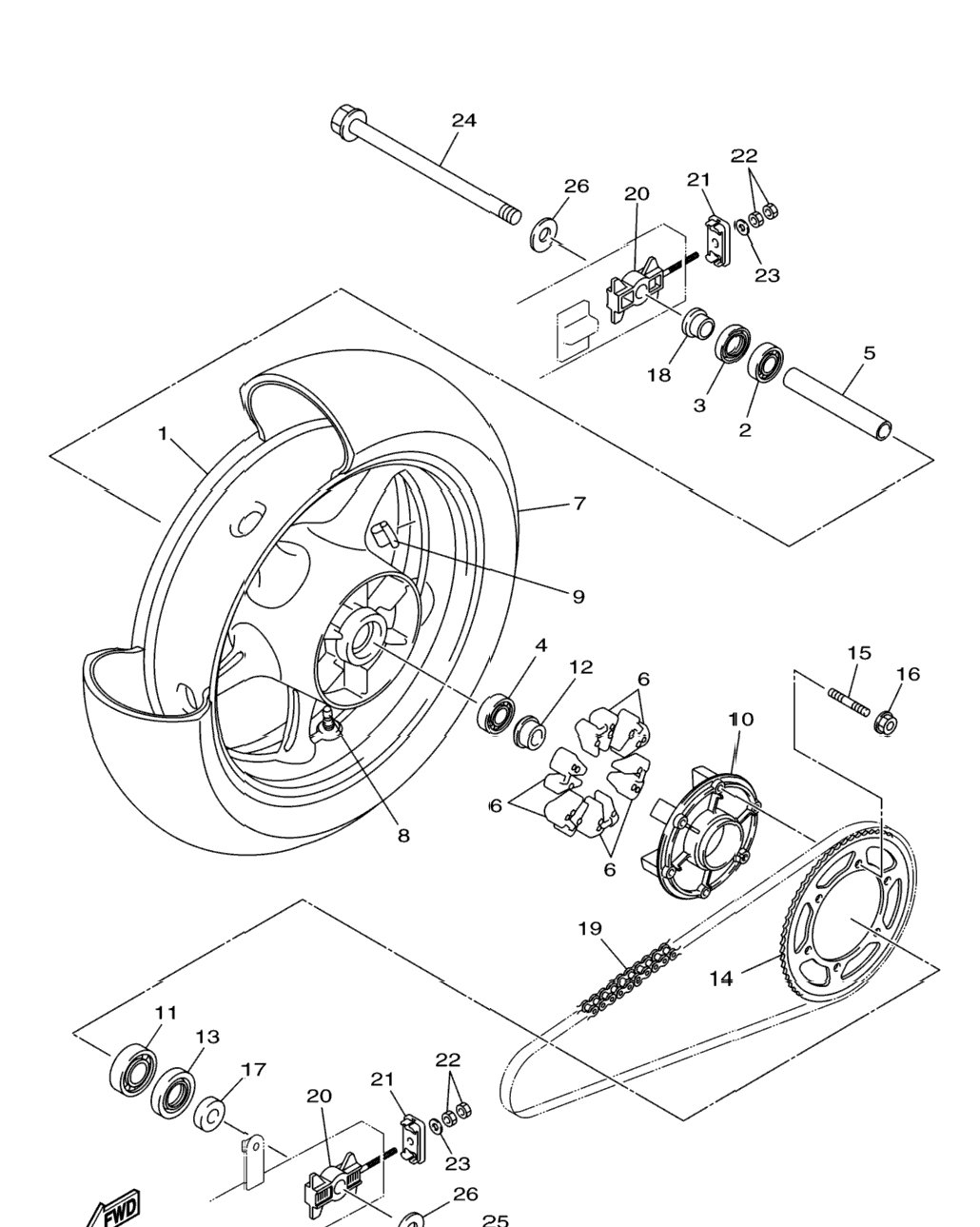

| 1 | 20S-25338-00-98 | Cast Wheel, Rear LGB | 1 шт. | — | |
|
| 2 | 93306-30317-00 | Bearing | 1 шт. | — | |
|
| 3 | 93102-25044-00 | Oil Seal | 1 шт. | — | |
|
| 4 | 93306-30317-00 | Bearing | 1 шт. | — | |
|
| 5 | 20S-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 6 | 20S-25364-00-00 | Damper | 6 шт. | — | |
|
| 7 | 94116-17015-00 | Tire (160/60Zr17m/C 69W Bt021r) UR BRIDGESTONE | 1 шт. | — | |
|
| 8 | 94116-17019-00 | Tire (160/60Zr17m/C 69W) UR DUNLOP | 1 шт. | — | |
|
| 9 | 93900-00030-00 | Valve, Rim (Tr412) TAIHEIYO | 1 шт. | — | |
|
| 10 | 5MT-25398-00-00 | Balancer, Wheel (10G) UR | 1 шт. | — | |
|
| 11 | 5MT-25398-10-00 | Balancer, Wheel (20G) UR | 1 шт. | — | |
|
| 12 | 5MT-25398-20-00 | Balancer, Wheel (30G) UR | 1 шт. | — | |
|
| 13 | 20S-25366-00-00 | Clutch, Hub | 1 шт. | — | |
|
| 14 | 93306-20659-00 | Bearing | 1 шт. | — | |
|
| 15 | 20S-25383-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 16 | 93106-40041-00 | Oil Seal | 1 шт. | — | |
|
| 17 | 20S-25446-00-00 | Sprocket, Driven (46T) | 1 шт. | — | |
|
| 18 | 90116-10048-00 | Bolt, Stud | 6 шт. | — | |
|
| 19 | 95602-10200-00 | Nut, S/L Flange | 6 шт. | — | |
|
| 20 | 20S-25377-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 21 | 20S-25183-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 22 | 94582-37118-00 | Chain (Did520vm3-118 L) | 1 шт. | — | |
|
| 23 | 1UF-25388-02-00 | Puller, Chain 1 | 2 шт. | — | |
|
| 24 | 1UF-22174-10-00 | End 1 | 2 шт. | — | |
|
| 25 | 95302-08600-00 | Nut, Hexagon | 4 шт. | — | |
|
| 26 | 92902-08600-00 | Washer, Plate | 2 шт. | — | |
|
| 27 | 20S-25381-01-00 | Axle, Wheel | 1 шт. | — | |
|
| 28 | 90185-16002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 29 | 90201-17017-00 | Washer, Plate | 2 шт. | — | |
|
