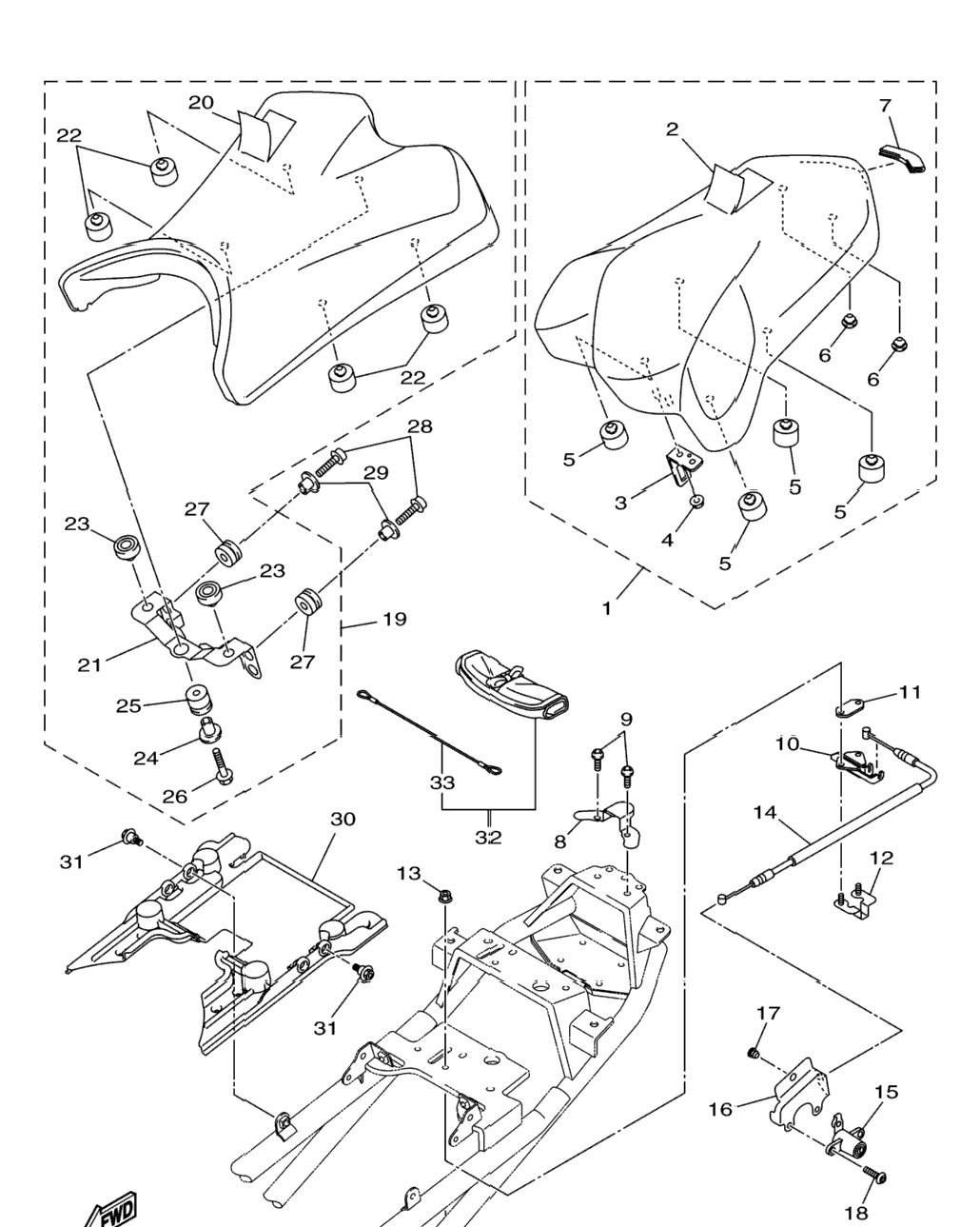

| 1 | 36P-24750-00-00 | Tandem Seat Assy | 1 шт. | — | |
|
| 2 | 36P-2470H-00-00 | . . .Seat Cover Comp. ,2 | 1 шт. | — | |
|
| 3 | 4NK-24728-00-00 | . .Bracket, Seat | 1 шт. | — | |
|
| 4 | 95702-06500-00 | . Nut, Flange | 1 шт. | — | |
|
| 5 | 4D9-27114-00-00 | . .Stopper, Main Stand | 4 шт. | — | |
|
| 6 | 90338-07043-00 | . Plug | 2 шт. | — | |
|
| 7 | 36P-24724-00-00 | . .Damper, Seat | 1 шт. | — | |
|
| 8 | 36P-24728-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 9 | 92012-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 10 | 50W-24780-01-00 | Seat Lock Assy | 1 шт. | — | |
|
| 11 | 20S-24792-00-00 | Plate | 1 шт. | — | |
|
| 12 | 36P-2478X-00-00 | Bracket, Seat Lock | 0 шт. | — | |
|
| 13 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 14 | 5JW-2478E-00-00 | Cable, Seat Lock | 1 шт. | — | |
|
| 15 | 2TV-W2470-00-00 | Rotor Set | 1 шт. | — | |
|
| 16 | 20S-2117K-00-00 | Stay, Lock | 1 шт. | — | |
|
| 17 | 90338-07043-00 | Plug | 1 шт. | — | |
|
| 18 | 90149-06081-00 | Screw | 2 шт. | — | |
|
| 19 | 36P-24710-00-00 | Single Seat Assy | 1 шт. | — | |
|
| 20 | 36P-2470F-00-00 | . .Seat Cover Comp | 1 шт. | — | |
|
| 21 | 36P-24718-00-00 | . .Bracket, Seat | 1 шт. | — | |
|
| 22 | 4D9-27114-00-00 | . .Stopper, Main Stand | 4 шт. | — | |
|
| 23 | 2GH-24741-00-00 | . .Pad, Seat | 2 шт. | — | |
|
| 24 | 90387-06091-00 | . Collar | 1 шт. | — | |
|
| 25 | 90480-15M06-00 | . .Grommet | 1 шт. | — | |
|
| 26 | 90105-06122-00 | . Bolt, Flange | 1 шт. | — | |
|
| 27 | 90480-14016-00 | . .Grommet | 2 шт. | — | |
|
| 28 | 90110-06172-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 29 | 90387-077M3-00 | Collar | 2 шт. | — | |
|
| 30 | 36P-2475B-00-00 | Seat Base, Under | 1 шт. | — | |
|
| 31 | 90109-06236-00 | Bolt | 2 шт. | — | |
|
| 32 | 20S-28100-00-00 | Tool Kit | 1 шт. | — | |
|
| 33 | 20S-21308-00-00 | . .Helmet Hanger | 1 шт. | — | |
|
