Side Cover

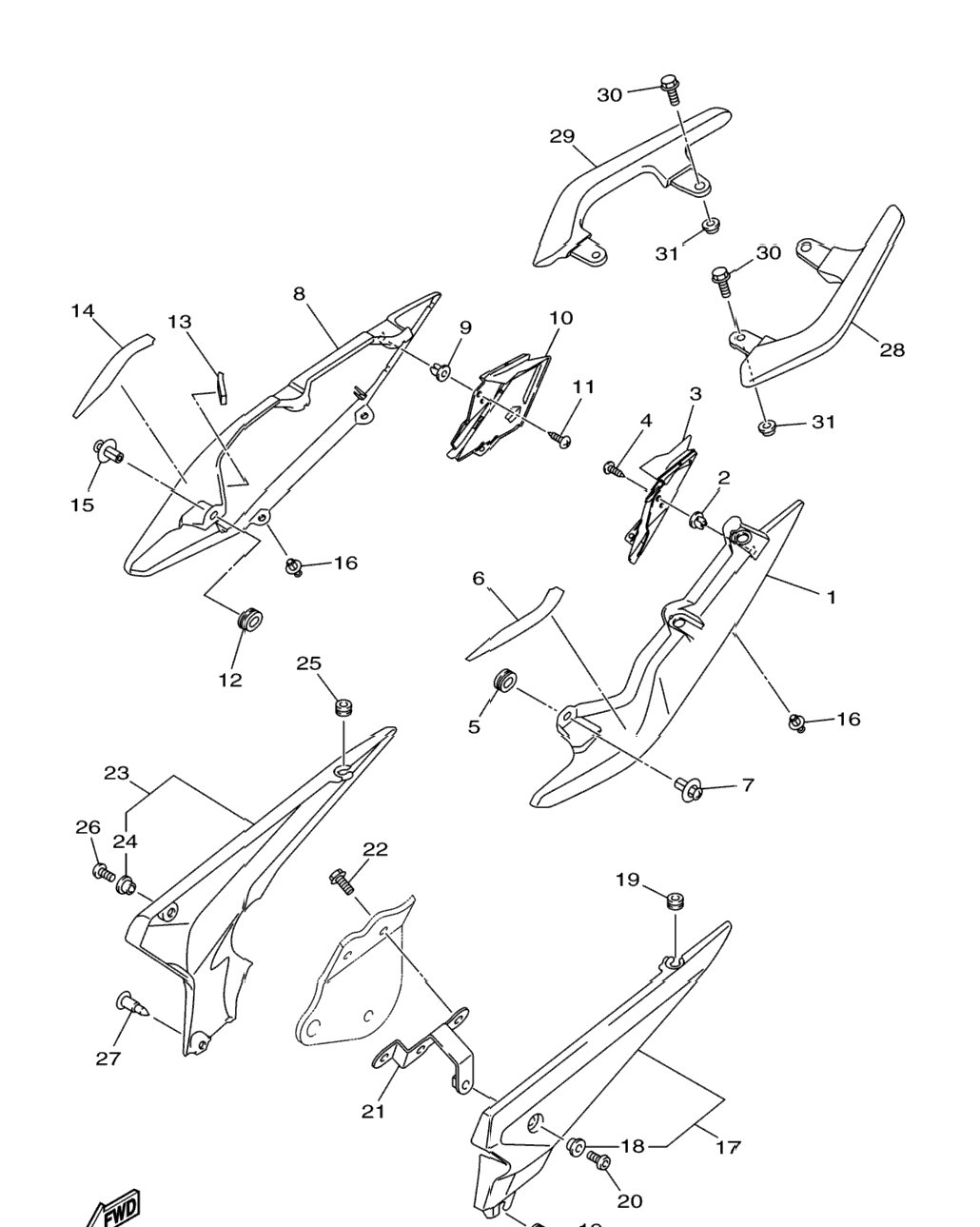

Схема Side Cover
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 20S-21711-00-P3 | Cover, Side 1 SMX | 1 шт. | — | |
|
| 2 | 90480-08005-00 | Grommet | 1 шт. | — | |
|
| 3 | 20S-2163A-10-00 | Cover, Rear Fender 1 | 1 шт. | — | |
|
| 4 | 97702-50014-00 | Screw, Tapping | 1 шт. | — | |
|
| 5 | 5PW-2174X-00-00 | Damper | 1 шт. | — | |
|
| 6 | 20S-21732-00-00 | Seal 1 | 1 шт. | — | |
|
| 7 | 90269-07076-00 | Rivet | 1 шт. | — | |
|
| 8 | 20S-21721-00-P3 | Cover, Side 2 SMX | 1 шт. | — | |
|
| 9 | 90480-08005-00 | Grommet | 1 шт. | — | |
|
| 10 | 20S-2163E-10-00 | Cover, Rear Fender 2 | 1 шт. | — | |
|
| 11 | 97702-50014-00 | Screw, Tapping | 1 шт. | — | |
|
| 12 | 5PW-2174X-00-00 | Damper | 1 шт. | — | |
|
| 13 | 4C8-24182-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 14 | 20S-21735-00-00 | Seal 2 | 1 шт. | — | |
|
| 15 | 90269-07076-00 | Rivet | 1 шт. | — | |
|
| 16 | 90269-07077-00 | Rivet | 4 шт. | — | |
|
| 17 | 20S-21730-00-00 | Side Cover Assy 3 | 1 шт. | — | |
|
| 18 | 90387-06130-00 | . Collar | 1 шт. | — | |
|
| 19 | 90480-10334-00 | Grommet | 2 шт. | — | |
|
| 20 | 90111-06038-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 21 | 20S-2172U-00-00 | Brkt 7 | 1 шт. | — | |
|
| 22 | 95802-06012-00 | Bolt, Flange | 0 шт. | — | |
|
| 23 | 20S-21740-00-00 | Side Cover Assy 4 | 1 шт. | — | |
|
| 24 | 90387-06130-00 | . Collar | 1 шт. | — | |
|
| 25 | 90480-10334-00 | Grommet | 1 шт. | — | |
|
| 26 | 90111-06038-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 27 | 90269-07008-00 | Rivet | 1 шт. | — | |
|
| 28 | 20S-2474A-10-00 | Assist, Grip | 1 шт. | — | |
|
| 29 | 20S-2474W-10-00 | Assist, Grip 2 | 1 шт. | — | |
|
| 30 | 92017-08025-00 | Bolt, Button Head | 4 шт. | — | |
|
| 31 | 90387-08089-00 | Collar | 4 шт. | — | |
|
