Stand Footrest

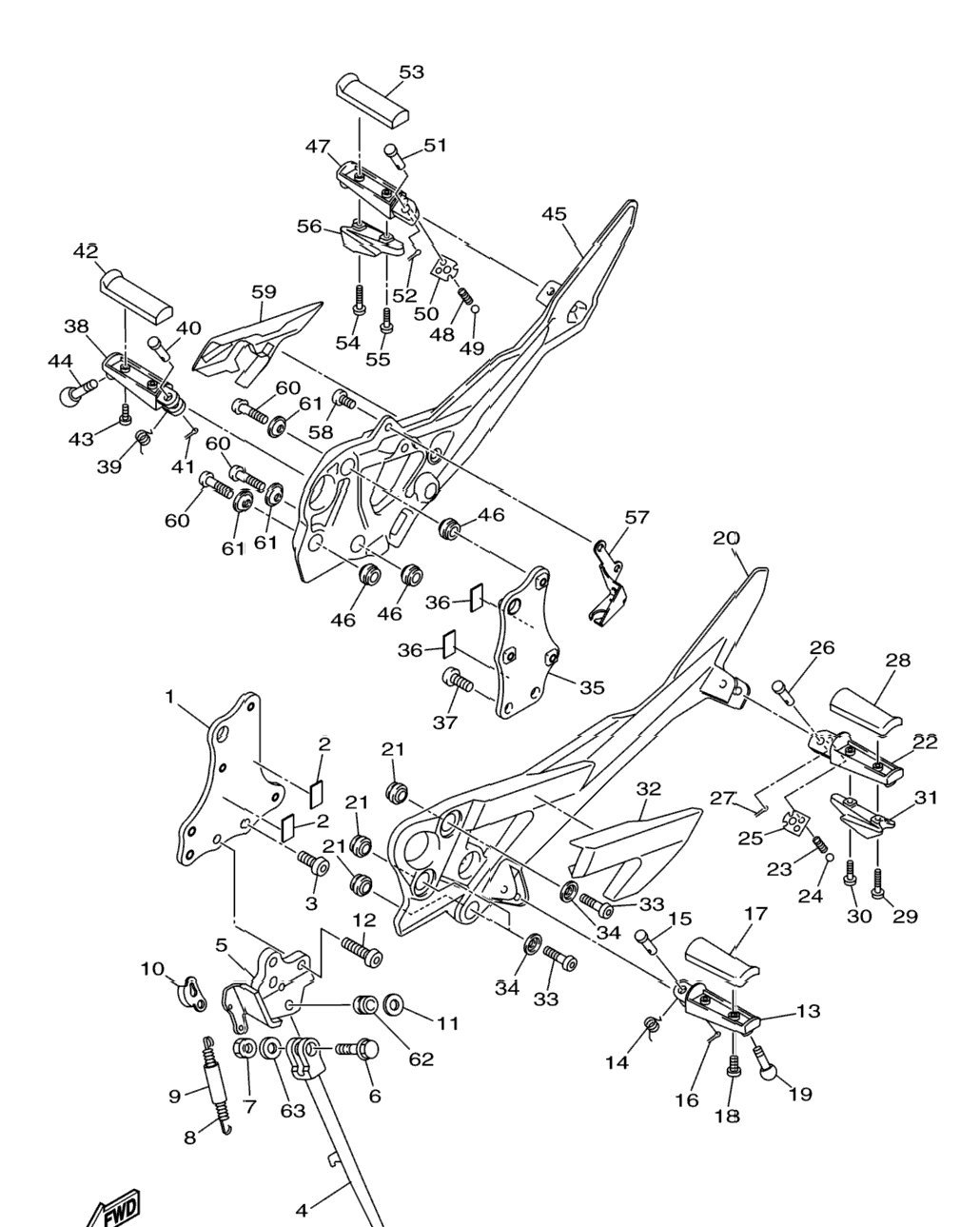

Схема Stand Footrest
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 20S-274A3-00-00 | Bracket, Adapter 1 | 1 шт. | — | |
|
| 2 | 4RR-21485-00-00 | Damper, Rubber 1 | 2 шт. | — | |
|
| 3 | 90111-10043-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 4 | 20S-27311-00-00 | Stand, Side | 1 шт. | — | |
|
| 5 | 20S-27321-00-00 | Bracket, Side Stand | 1 шт. | — | |
|
| 6 | 90105-10365-00 | Bolt, Flange | 1 шт. | — | |
|
| 7 | 90185-10023-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 8 | 90506-23018-00 | Spring, Tension | 1 шт. | — | |
|
| 9 | 5VX-27351-00-00 | Guide, Side Stand | 1 шт. | — | |
|
| 10 | 5VX-27315-00-00 | Link, Side Stand | 1 шт. | — | |
|
| 11 | 90201-10051-00 | Washer, Plate | 1 шт. | — | |
|
| 12 | 90111-10045-00 | Bolt, Hex. Socket Button | 3 шт. | — | |
|
| 13 | 4BH-27451-01-00 | Footrest | 1 шт. | — | |
|
| 14 | 90508-20572-00 | Spring, Torsion | 1 шт. | — | |
|
| 15 | 91701-08042-00 | Pin | 1 шт. | — | |
|
| 16 | 91402-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 17 | 4BP-27413-00-00 | Cover, Footrest | 1 шт. | — | |
|
| 18 | 90157-05025-00 | Screw, Pan Head | 2 шт. | — | |
|
| 19 | 90109-08203-00 | Bolt | 1 шт. | — | |
|
| 20 | 20S-27442-00-00 | Bracket 2 | 1 шт. | — | |
|
| 21 | 5VX-27424-00-00 | Damper, Footrest 2 | 3 шт. | — | |
|
| 22 | 5RT-27431-00-00 | .Footrest, Rear 1 | 1 шт. | — | |
|
| 23 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 24 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 25 | 5VX-27437-00-00 | Washer, Special | 1 шт. | — | |
|
| 26 | 91701-08042-00 | Pin | 1 шт. | — | |
|
| 27 | 91402-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 28 | 4BP-27413-00-00 | Cover, Footrest | 1 шт. | — | |
|
| 29 | 90159-05187-00 | Screw, With Washer | 1 шт. | — | |
|
| 30 | 90159-05004-00 | Screw, With Washer | 1 шт. | — | |
|
| 31 | 5LV-2741E-01-00 | Arm 2 | 1 шт. | — | |
|
| 32 | 20S-27486-00-00 | Cover 1 | 1 шт. | — | |
|
| 33 | 90111-08066-00 | Bolt, Hex. Socket Button | 3 шт. | — | |
|
| 34 | 90209-08295-00 | Washer | 3 шт. | — | |
|
| 35 | 20S-274A4-00-00 | Bracket, Adapter 2 | 1 шт. | — | |
|
| 36 | 4RR-21485-00-00 | Damper, Rubber 1 | 2 шт. | — | |
|
| 37 | 90111-10036-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 38 | 4BH-27461-01-00 | Footrest | 1 шт. | — | |
|
| 39 | 90508-20572-00 | Spring, Torsion | 1 шт. | — | |
|
| 40 | 91701-08042-00 | Pin | 1 шт. | — | |
|
| 41 | 91402-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 42 | 4BP-27413-00-00 | Cover, Footrest | 1 шт. | — | |
|
| 43 | 90157-05025-00 | Screw, Pan Head | 2 шт. | — | |
|
| 44 | 90109-08203-00 | Bolt | 1 шт. | — | |
|
| 45 | 20S-27443-00-00 | Bracket 3 | 1 шт. | — | |
|
| 46 | 5VX-27424-00-00 | Damper, Footrest 2 | 3 шт. | — | |
|
| 47 | 5RT-27441-00-00 | .Footrest, Rear 2 | 1 шт. | — | |
|
| 48 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 49 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 50 | 5VX-27437-00-00 | Washer, Special | 1 шт. | — | |
|
| 51 | 91701-08042-00 | Pin | 1 шт. | — | |
|
| 52 | 91402-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 53 | 4BP-27413-00-00 | Cover, Footrest | 1 шт. | — | |
|
| 54 | 90159-05187-00 | Screw, With Washer | 1 шт. | — | |
|
| 55 | 90159-05004-00 | Screw, With Washer | 1 шт. | — | |
|
| 56 | 5LV-2741E-01-00 | Arm 2 | 1 шт. | — | |
|
| 57 | 20S-2144G-00-00 | Stay, Stop Switch | 1 шт. | — | |
|
| 58 | 92014-08020-00 | Bolt, Button Head | 2 шт. | — | |
|
| 59 | 20S-27487-00-00 | Cover 2 | 1 шт. | — | |
|
| 60 | 90111-08066-00 | Bolt, Hex. Socket Button | 3 шт. | — | |
|
| 61 | 90209-08295-00 | Washer | 3 шт. | — | |
|
| 62 | 90387-1003G-00 | Collar | 1 шт. | — | |
|
| 63 | 90201-10035-00 | Washer, Plate | 1 шт. | — | |
|
