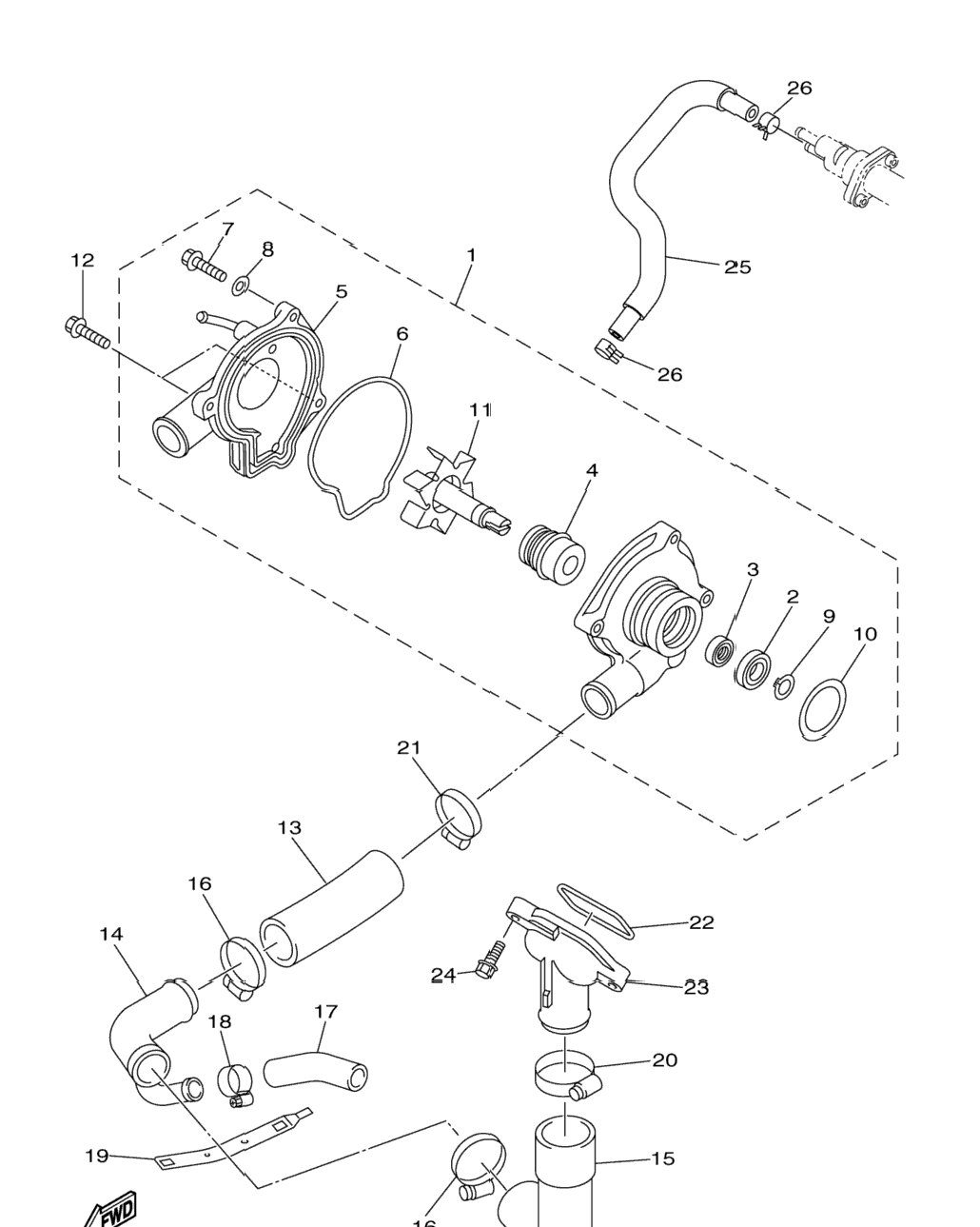

| 1 | 20S-12420-01-00 | Water Pump Assy | 1 шт. | — | |
|
| 2 | 93306-00106-00 | . Bearing | 1 шт. | — | |
|
| 3 | 93101-12173-00 | . .Oil Seal | 1 шт. | — | |
|
| 4 | 5VK-12438-00-00 | . .Seal, Mechanical | 1 шт. | — | |
|
| 5 | 5SL-12422-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 6 | 5EB-12439-00-00 | . .O-Ring | 1 шт. | — | |
|
| 7 | 95024-06020-00 | . . Bolt, Flg.(Small Head) | 2 шт. | — | |
|
| 8 | 90430-06014-00 | . .Gasket | 1 шт. | — | |
|
| 9 | 99009-12400-00 | . .Circlip | 1 шт. | — | |
|
| 10 | 93210-33133-00 | . .O-Ring | 1 шт. | — | |
|
| 11 | 20S-12450-00-00 | . .Impeller Shaft Assy | 1 шт. | — | |
|
| 12 | 90110-06086-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 13 | 4NK-12579-00-00 | Hose 4 | 1 шт. | — | |
|
| 14 | 20S-12581-01-00 | Joint, Hose 1 | 1 шт. | — | |
|
| 15 | 5EB-12577-01-00 | Hose 2 | 1 шт. | — | |
|
| 16 | 90450-35001-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 17 | 5SL-12588-01-00 | Hose 5 | 1 шт. | — | |
|
| 18 | 90450-22017-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 19 | 5GV-1246E-00-00 | Cover 2 | 1 шт. | — | |
|
| 20 | 90450-38003-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 21 | 90450-32006-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 22 | 93210-46001-00 | O-Ring | 1 шт. | — | |
|
| 23 | 5EB-12469-00-00 | Joint 1 | 1 шт. | — | |
|
| 24 | 90105-06053-00 | Bolt, Flange | 2 шт. | — | |
|
| 25 | 5VX-1243A-00-00 | Hose 1 | 1 шт. | — | |
|
| 26 | 90467-110A2-00 | Clip | 2 шт. | — | |
|
