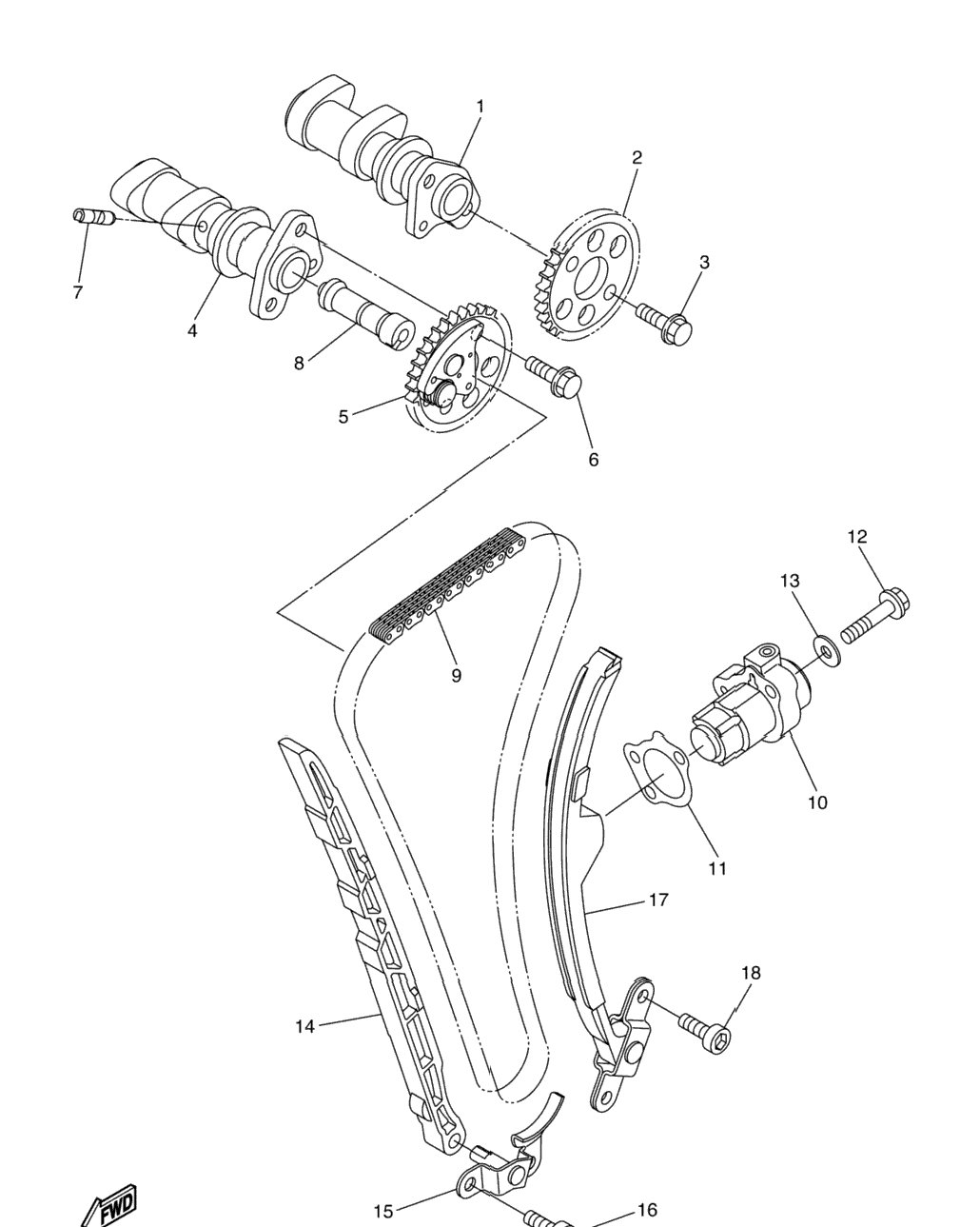

| 1 | 3D7-12171-00-00 | Camshaft 1 | 1 шт. | — | |
|
| 2 | 3D7-12176-00-00 | Sprocket, Cam Chain | 1 шт. | — | |
|
| 4 | 3D7-12181-00-00 | Camshaft 2 | 1 шт. | — | |
|
| 5 | 3D7-12280-00-00 | Decompression Assy | 1 шт. | — | |
|
| 6 | 90105-07004-00 | Bolt, Flange | 2 шт. | — | |
|
| 6 | 90105-07004-00 | Bolt, Flange | 2 шт. | — | |
|
| 7 | 3D7-12284-00-00 | Pin, Decompression Lever | 1 шт. | — | |
|
| 8 | 3D7-12290-00-00 | Lever, Decompression Spring | 1 шт. | — | |
|
| 9 | 94591-57118-00 | Chain (98Xrh2010-118M) | 1 шт. | — | |
|
| 10 | 3D7-12210-11-00 | Tensioner Assy, Cam Chain | 1 шт. | — | |
|
| 11 | 15B-12213-00-00 | Gasket, Tensioner Case | 1 шт. | — | |
|
| 12 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 13 | 90430-06014-00 | Gasket | 2 шт. | — | |
|
| 14 | 3D7-12231-00-00 | Guide, Stopper 1 | 1 шт. | — | |
|
| 15 | 3D7-12233-00-00 | Plate, Guide Stopper 1 | 1 шт. | — | |
|
| 17 | 3D7-12241-00-00 | Guide, Stopper 2 | 1 шт. | — | |
|
| 18 | 90110-06168-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 18 | 90110-06168-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
