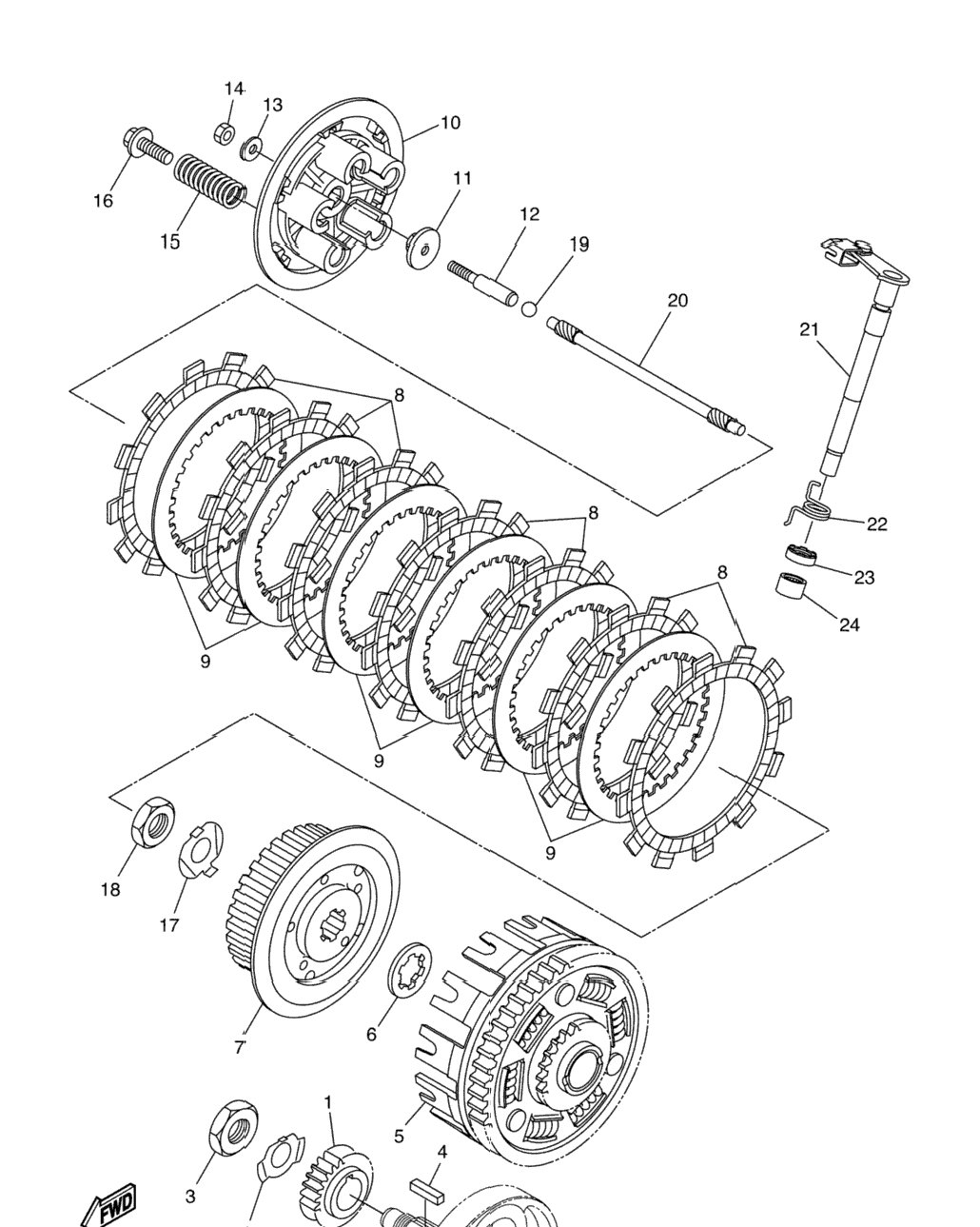

| 1 | 3D7-16111-00-00 | Gear, Primary Drive | 1 шт. | — | |
|
| 2 | 90215-16001-00 | Washer, Lock | 1 шт. | — | |
|
| 3 | 90170-16343-00 | Nut | 1 шт. | — | |
|
| 4 | 90282-05009-00 | Key, Straight | 1 шт. | — | |
|
| 5 | 3D7-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 6 | 30X-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 7 | 3D7-16371-00-00 | Boss, Clutch | 1 шт. | — | |
|
| 8 | 3XJ-16321-00-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 9 | 3XJ-16324-01-00 | Plate, Clutch 1 INCL. IN CLUTCH PLATE KIT | 6 шт. | — | |
|
| 10 | 3D7-16351-00-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 11 | 1W1-16358-01-00 | Plate, Push | 1 шт. | — | |
|
| 12 | 3D7-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 13 | 92902-06200-00 | Washer | 1 шт. | — | |
|
| 14 | 95302-06600-00 | Nut, Hexagon | 1 шт. | — | |
|
| 15 | 90501-23391-00 | Spring, Compression INCL. IN CLUTCH PLATE KIT | 5 шт. | — | |
|
| 16 | 90159-06010-00 | Screw, With Washer | 5 шт. | — | |
|
| 17 | 90215-16289-00 | Washer, Lock | 1 шт. | — | |
|
| 18 | 90170-16326-00 | Nut | 1 шт. | — | |
|
| 19 | 93511-32027-00 | Ball | 1 шт. | — | |
|
| 20 | 3D7-16357-00-00 | Rod, Push 2 | 1 шт. | — | |
|
| 21 | 3D7-16380-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 22 | 90508-18052-00 | Spring, Torsion | 1 шт. | — | |
|
| 23 | 93102-12004-00 | Oil Seal | 1 шт. | — | |
|
| 24 | 93317-11295-00 | Bearing | 1 шт. | — | |
|
| 25 | 2CF-W001G-00-00 | Clutch Kit NOT SHOWN | 1 шт. | — | |
|
