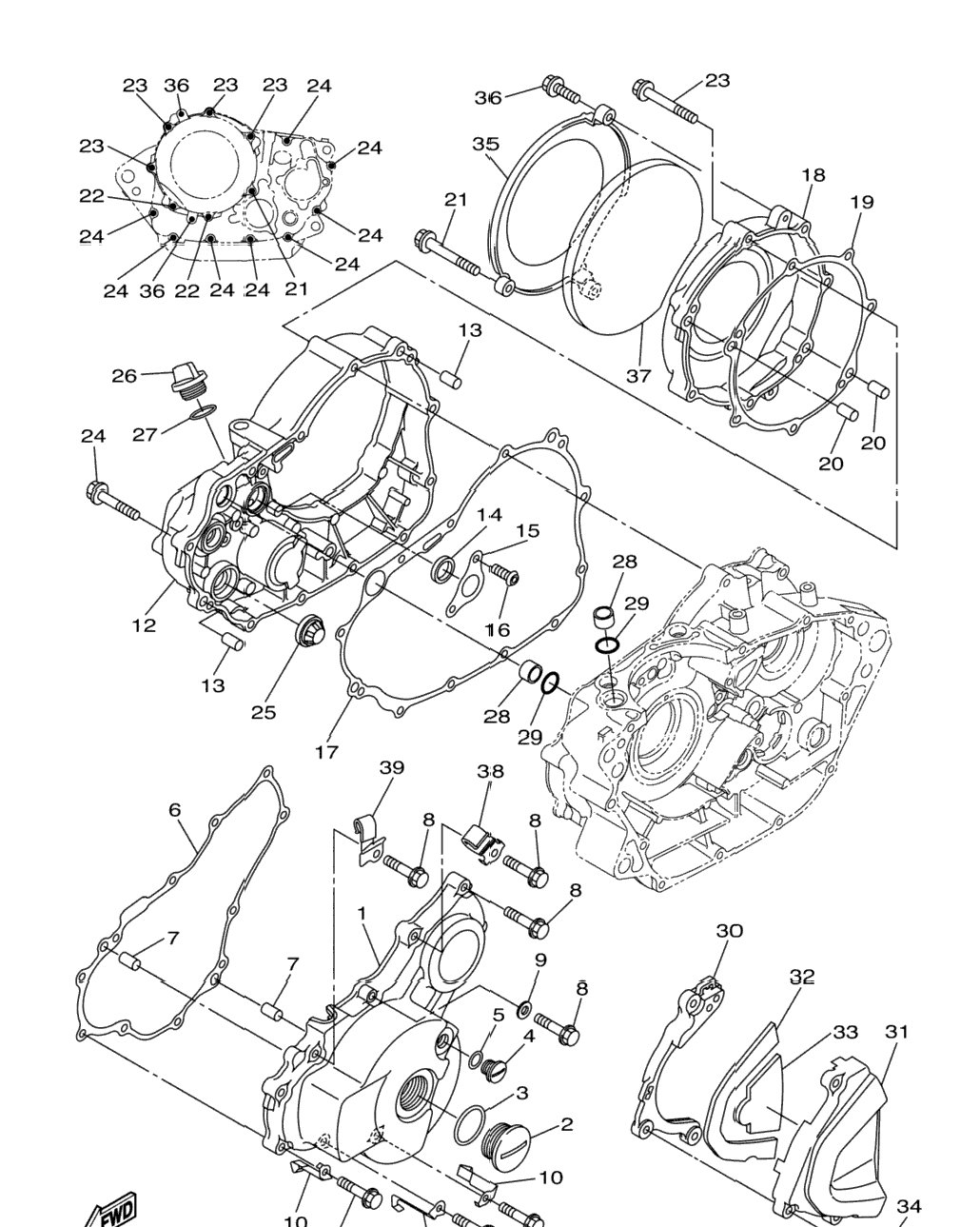

| 1 | 3D7-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-32069-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-32172-00 | .O-Ring | 1 шт. | — | |
|
| 4 | 90340-14068-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 5 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 6 | 3D7-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 9 | 90430-06014-00 | Gasket | 1 шт. | — | |
|
| 10 | 90462-08059-00 | Clamp | 2 шт. | — | |
|
| 11 | 90462-08060-00 | Clamp | 1 шт. | — | |
|
| 12 | 3D7-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 14 | 93101-14164-00 | Oil Seal | 1 шт. | — | |
|
| 15 | 3D7-15118-00-00 | Holder | 1 шт. | — | |
|
| 16 | 90149-06083-00 | Screw | 2 шт. | — | |
|
| 17 | 3D7-15462-00-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 18 | 3D7-15415-00-00 | Cover,1 | 1 шт. | — | |
|
| 19 | 3D7-15453-10-00 | Gasket INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 20 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 20 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 20 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 21 | 95022-06045-00 | Bolt, Flange | 1 шт. | — | |
|
| 22 | 95022-06035-00 | Bolt, Flange | 2 шт. | — | |
|
| 23 | 90105-06144-00 | Bolt, Flange | 4 шт. | — | |
|
| 25 | 3Y1-15361-00-00 | Gauge, Level | 1 шт. | — | |
|
| 26 | 3Y1-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 27 | 93210-19123-00 | O-Ring | 1 шт. | — | |
|
| 28 | 5NL-12564-00-00 | Pipe, Water | 2 шт. | — | |
|
| 29 | 93210-16716-00 | O-Ring | 2 шт. | — | |
|
| 30 | 3D7-15377-00-00 | Guide | 1 шт. | — | |
|
| 31 | 3D7-15418-00-00 | Cover, Chain Case | 1 шт. | — | |
|
| 32 | 3D7-15335-10-00 | Damper 3 | 1 шт. | — | |
|
| 33 | 3D7-15337-10-00 | Damper 4 | 1 шт. | — | |
|
| 34 | 95022-06030-00 | Bolt, Flange | 11 шт. | — | |
|
| 34 | 95022-06030-00 | Bolt, Flange | 3 шт. | — | |
|
| 34 | 95022-06030-00 | Bolt, Flange | 8 шт. | — | |
|
| 35 | 3D7-15423-00-00 | Cover 2 | 1 шт. | — | |
|
| 36 | 95022-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 37 | 3D7-15326-00-00 | Damper, 2 | 1 шт. | — | |
|
| 38 | 90462-08065-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 39 | 90462-08069-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
