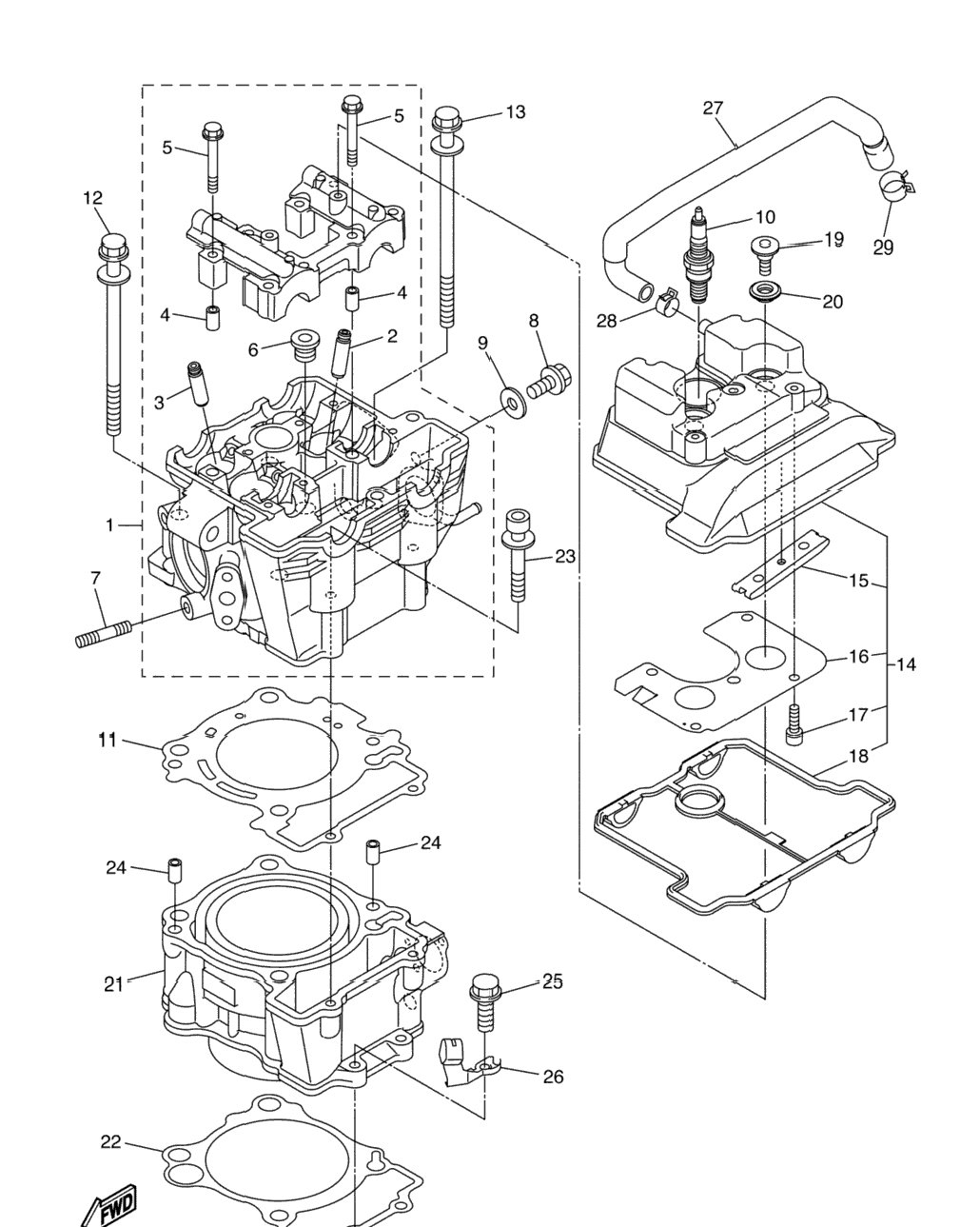

| 1 | 3D7-11101-09-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 2 | 3D7-11133-10-00 | . .Guide, Valve 1 | 2 шт. | — | |
|
| 3 | 2C0-11133-11-00 | . .Guide, Valve 1 | 2 шт. | — | |
|
| 4 | 91808-16023-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 5 | 90105-06027-00 | . .Bolt, Flange | 8 шт. | — | |
|
| 6 | 90340-12007-00 | . .Plug, Straight Screw | 1 шт. | — | |
|
| 7 | 95612-08620-00 | Bolt, Stud | 2 шт. | — | |
|
| 8 | 95022-08012-00 | .Bolt, Flange | 1 шт. | — | |
|
| 9 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 10 | 94701-00403-00 | Plug, Spark (Ngk Cr9ek) | 1 шт. | — | |
|
| 11 | 3D7-11181-00-00 | Gasket, Cylinder Head 1 | 1 шт. | — | |
|
| 12 | 90119-10025-00 | Bolt, With Washer | 3 шт. | — | |
|
| 13 | 90119-10026-00 | Bolt, With Washer | 1 шт. | — | |
|
| 14 | 3D7-11190-00-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 15 | 5BE-12241-00-00 | . Guide, Stopper 2 | 1 шт. | — | |
|
| 16 | 3D7-11165-00-00 | . .Plate, Breather | 1 шт. | — | |
|
| 17 | 90110-06175-00 | . Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 18 | 3D7-11193-00-00 | . .Gasket, Head Cover 1 | 1 шт. | — | |
|
| 19 | 90109-066F0-00 | Bolt | 2 шт. | — | |
|
| 20 | 5VY-1111G-00-00 | Rubber, Mount 1 | 2 шт. | — | |
|
| 21 | 3D7-11311-02-00 | Cylinder 1 | 1 шт. | — | |
|
| 22 | 3D7-11351-01-00 | Gasket, Cylinder | 0 шт. | — | |
|
| 23 | 90110-06298-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 24 | 99530-08016-00 | Pin, Dowel | 2 шт. | — | |
|
| 25 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 26 | 3D7-12491-00-00 | Clamp 1 | 1 шт. | — | |
|
| 27 | 3D7-11166-00-00 | Pipe, Breather 1 | 1 шт. | — | |
|
| 28 | 90467-120A5-00 | Clip | 1 шт. | — | |
|
| 29 | 90467-15141-00 | Clip | 0 шт. | — | |
|
