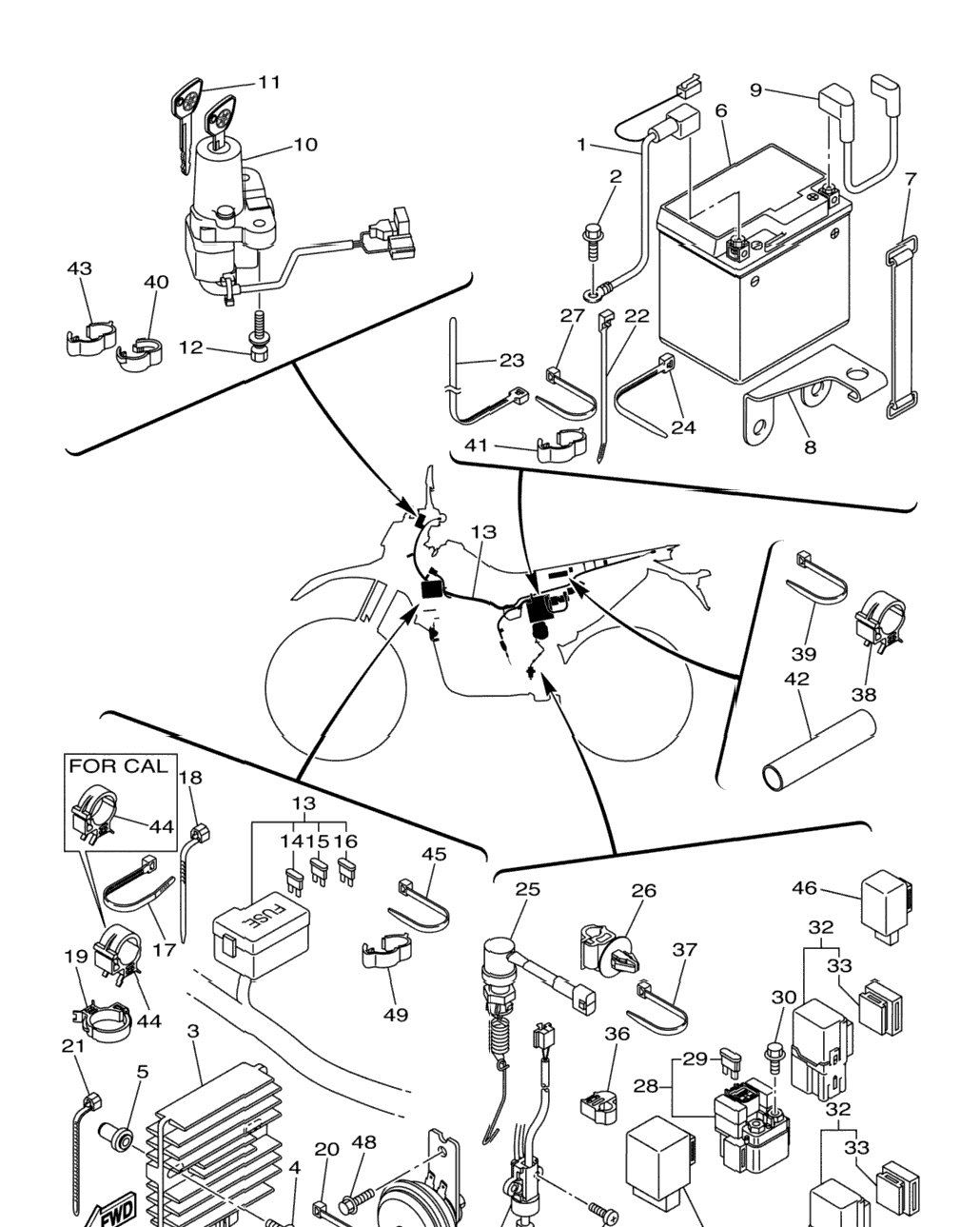

| 1 | 3D7-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 2 | 95022-06014-00 | Bolt, Flange | 1 шт. | — | |
|
| 3 | 4XY-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 4 | 95022-06030-00 | Bolt, Flange | 2 шт. | — | |
|
| 5 | 90179-06020-00 | Nut | 2 шт. | — | |
|
| 6 | 1S4-82100-10-00 | Battery Assy (Ytz7s) | 1 шт. | — | |
|
| 7 | 3L8-82131-01-00 | Band, Battery | 1 шт. | — | |
|
| 8 | 3D7-21365-00-00 | Hook, Battery Band | 1 шт. | — | |
|
| 9 | 3D7-82115-00-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 10 | 32D-82501-10-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 11 | 32D-82511-09-00 | Key, Main Switch AP | 1 шт. | — | |
|
| 12 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
| 13 | 32C-82590-10-00 | Wire Harness Assy | 1 шт. | — | |
|
| 14 | 5JJ-82151-00-00 | . .Fuse (7.5A-Bl) | 5 шт. | — | |
|
| 15 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 2 шт. | — | |
|
| 16 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 2 шт. | — | |
|
| 17 | 90465-10098-00 | Clamp | 1 шт. | — | |
|
| 18 | 90464-13073-00 | Clamp | 1 шт. | — | |
|
| 19 | 90464-20191-00 | Clamp FOR U49 | 1 шт. | — | |
|
| 20 | 90464-25217-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 21 | 90464-16061-00 | Clamp | 1 шт. | — | |
|
| 22 | 90464-25004-00 | Clamp | 2 шт. | — | |
|
| 23 | 90464-99006-00 | Clamp | 1 шт. | — | |
|
| 24 | 90464-20258-00 | Clamp | 1 шт. | — | |
|
| 25 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 26 | 3D7-82530-00-00 | Stop Switch Assy | 1 шт. | — | |
|
| 27 | 90464-05001-00 | Clamp | 1 шт. | — | |
|
| 28 | 90464-16061-00 | Clamp | 1 шт. | — | |
|
| 29 | 3D7-81940-00-00 | Starter Relay Assy (Rc19-076A) | 1 шт. | — | |
|
| 30 | 1AE-82151-00-00 | . .Fuse (30A-Bl) | 2 шт. | — | |
|
| 31 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 32 | 5VK-81950-40-00 | Relay Assy (5Vk-40) | 1 шт. | — | |
|
| 33 | 1ST-81950-00-00 | Relay Assy (1St-00) | 2 шт. | — | |
|
| 34 | 5JJ-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 35 | 5KN-82566-40-00 | Switch, Side Stand | 1 шт. | — | |
|
| 36 | 90157-05025-00 | Screw, Pan Head | 2 шт. | — | |
|
| 37 | 90464-05188-00 | Clamp | 2 шт. | — | |
|
| 38 | 90464-16061-00 | Clamp | 3 шт. | — | |
|
| 39 | 90464-15192-00 | Clamp | 2 шт. | — | |
|
| 40 | 90464-16061-00 | Clamp | 2 шт. | — | |
|
| 41 | 90464-16001-00 | Clamp | 2 шт. | — | |
|
| 42 | 90464-16003-00 | Clamp | 1 шт. | — | |
|
| 43 | 90446-27001-00 | Hose | 1 шт. | — | |
|
| 44 | 90464-16003-00 | Clamp | 1 шт. | — | |
|
| 45 | 90464-10190-00 | Clamp FOR U49 | 1 шт. | — | |
|
| 46 | 90464-20191-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 47 | 90464-16061-00 | Clamp | 1 шт. | — | |
|
| 48 | 4MY-83350-01-00 | Flasher Relay Assy | 1 шт. | — | |
|
| 49 | 5XT-83371-00-00 | Horn | 1 шт. | — | |
|
| 50 | 90105-06048-00 | Bolt, Flange | 1 шт. | — | |
|
| 51 | 90464-16003-00 | Clamp | 1 шт. | — | |
|
