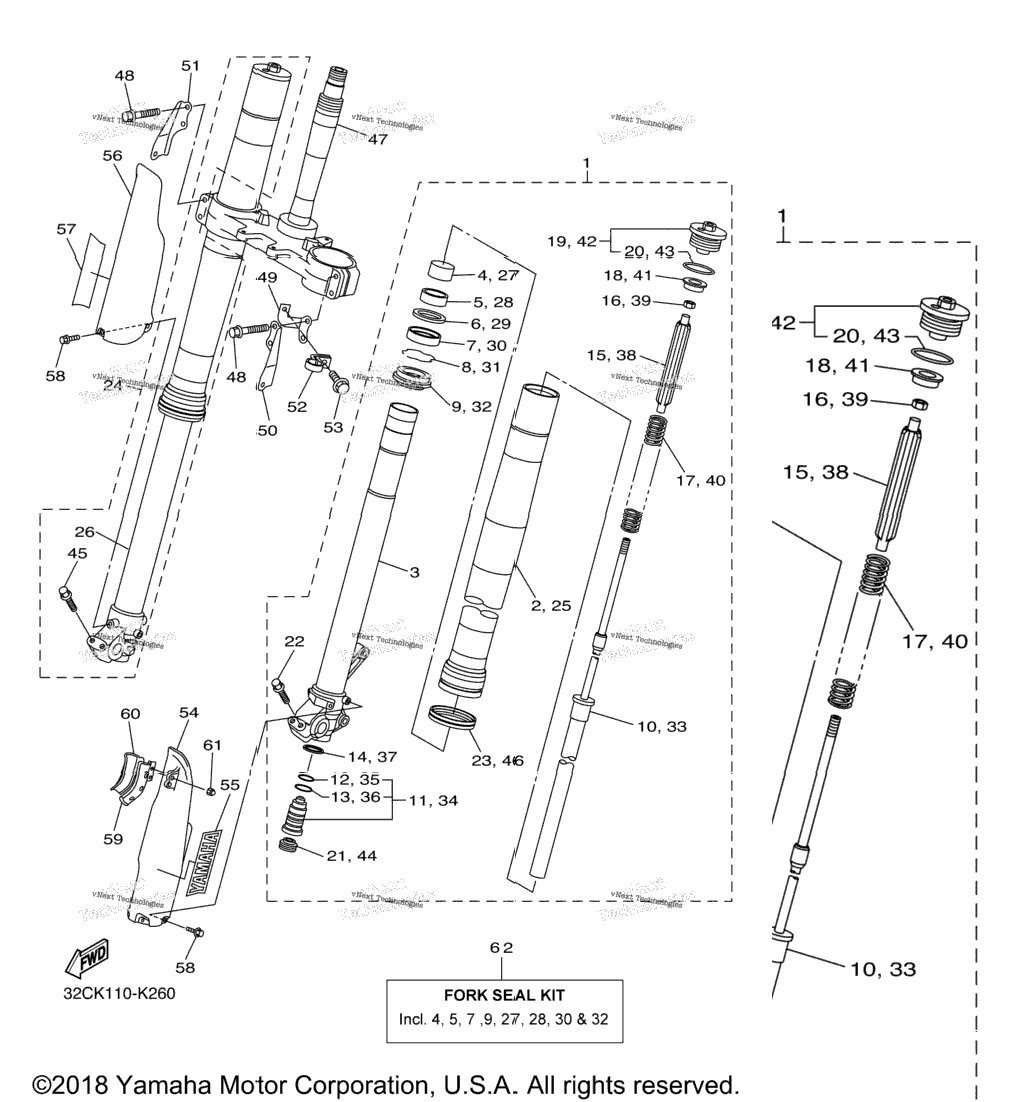

| 1 | 32D-23102-50-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 3D7-23106-50-00 | . .Outer Tube Comp | 1 шт. | — | |
|
| 3 | 3D7-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 4 | 5ET-23171-L0-00 | . Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 5 | 5ET-23125-L0-00 | . Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 6 | 5UN-23146-L0-00 | . Washer, Oil Seal | 1 шт. | — | |
|
| 7 | 5UN-23145-L0-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 8 | 4SS-23153-L0-00 | . .Ring, Snap | 1 шт. | — | |
|
| 9 | 5HD-23144-L0-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 10 | 32D-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 11 | 32D-2316A-00-00 | . .Valve Comp | 1 шт. | — | |
|
| 12 | 4DA-23147-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 13 | 276-23114-00-00 | . . ..Gasket | 1 шт. | — | |
|
| 14 | 2HH-23158-L0-00 | . ..Gasket | 1 шт. | — | |
|
| 15 | 3D7-23117-00-00 | . .Guide, Spring | 1 шт. | — | |
|
| 16 | 3XJ-23357-L0-00 | . .Nut | 1 шт. | — | |
|
| 17 | 32D-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 18 | 4SS-23143-L0-00 | . .Seat, Spring Lower | 1 шт. | — | |
|
| 19 | 3D7-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 20 | 3D7-23147-00-00 | . . ..O-Ring | 1 шт. | — | |
|
| 21 | 3JD-2312G-L0-00 | . .Plug, Hole | 1 шт. | — | |
|
| 22 | 95022-08040-00 | . Bolt, Flange | 2 шт. | — | |
|
| 23 | 5XC-2314F-00-00 | . .Protecter Guide Comp., 1 | 1 шт. | — | |
|
| 24 | 32D-23103-50-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 25 | 3D7-23106-50-00 | . .Outer Tube Comp | 1 шт. | — | |
|
| 26 | 3D7-23120-00-00 | . . Inner Tube Comp. 2 | 1 шт. | — | |
|
| 27 | 5ET-23171-L0-00 | . Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 28 | 5ET-23125-L0-00 | . Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 29 | 5UN-23146-L0-00 | . Washer, Oil Seal | 1 шт. | — | |
|
| 30 | 5UN-23145-L0-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 31 | 4SS-23153-L0-00 | . .Ring, Snap | 1 шт. | — | |
|
| 32 | 5HD-23144-L0-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 33 | 32D-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 34 | 32D-2316A-00-00 | . .Valve Comp | 1 шт. | — | |
|
| 35 | 4DA-23147-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 36 | 276-23114-00-00 | . . ..Gasket | 1 шт. | — | |
|
| 37 | 2HH-23158-L0-00 | . ..Gasket | 1 шт. | — | |
|
| 38 | 3D7-23117-00-00 | . .Guide, Spring | 1 шт. | — | |
|
| 39 | 3XJ-23357-L0-00 | . .Nut | 1 шт. | — | |
|
| 40 | 32D-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 41 | 4SS-23143-L0-00 | . .Seat, Spring Lower | 1 шт. | — | |
|
| 42 | 3D7-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 43 | 3D7-23147-00-00 | . . ..O-Ring | 1 шт. | — | |
|
| 44 | 3JD-2312G-L0-00 | . .Plug, Hole | 1 шт. | — | |
|
| 45 | 95022-08040-00 | . Bolt, Flange | 2 шт. | — | |
|
| 46 | 5XC-2314F-00-00 | . .Protecter Guide Comp., 1 | 1 шт. | — | |
|
| 47 | 3D7-23340-00-00 | Under Bracket Comp | 1 шт. | — | |
|
| 48 | 95022-08040-00 | Bolt, Flange | 4 шт. | — | |
|
| 49 | 3D7-2331E-00-00 | Guide, Cable | 1 шт. | — | |
|
| 50 | 32D-85112-00-00 | Bracket, Reflector 1 | 1 шт. | — | |
|
| 51 | 32D-85112-10-00 | Bracket, Reflector 1 | 1 шт. | — | |
|
| 52 | 5VK-23389-00-00 | Guide, Cable | 1 шт. | — | |
|
| 53 | 90105-05016-00 | Bolt, Flange | 1 шт. | — | |
|
| 54 | 1C3-2315H-10-00 | Protector 1 | 1 шт. | — | |
|
| 55 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 56 | 1C3-2315J-10-00 | Protector 2 | 1 шт. | — | |
|
| 57 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 58 | 3SP-23356-L0-00 | Bolt 2 | 6 шт. | — | |
|
| 59 | 3D7-23466-00-00 | Clamp | 1 шт. | — | |
|
| 60 | 3D7-23467-00-00 | Clamp | 1 шт. | — | |
|
| 61 | 90176-06014-00 | Nut, Crown | 2 шт. | — | |
|
| 62 | 5ET-W003B-00-00 | Fork Seal Kit NOT SHOWN | 1 шт. | — | |
|
