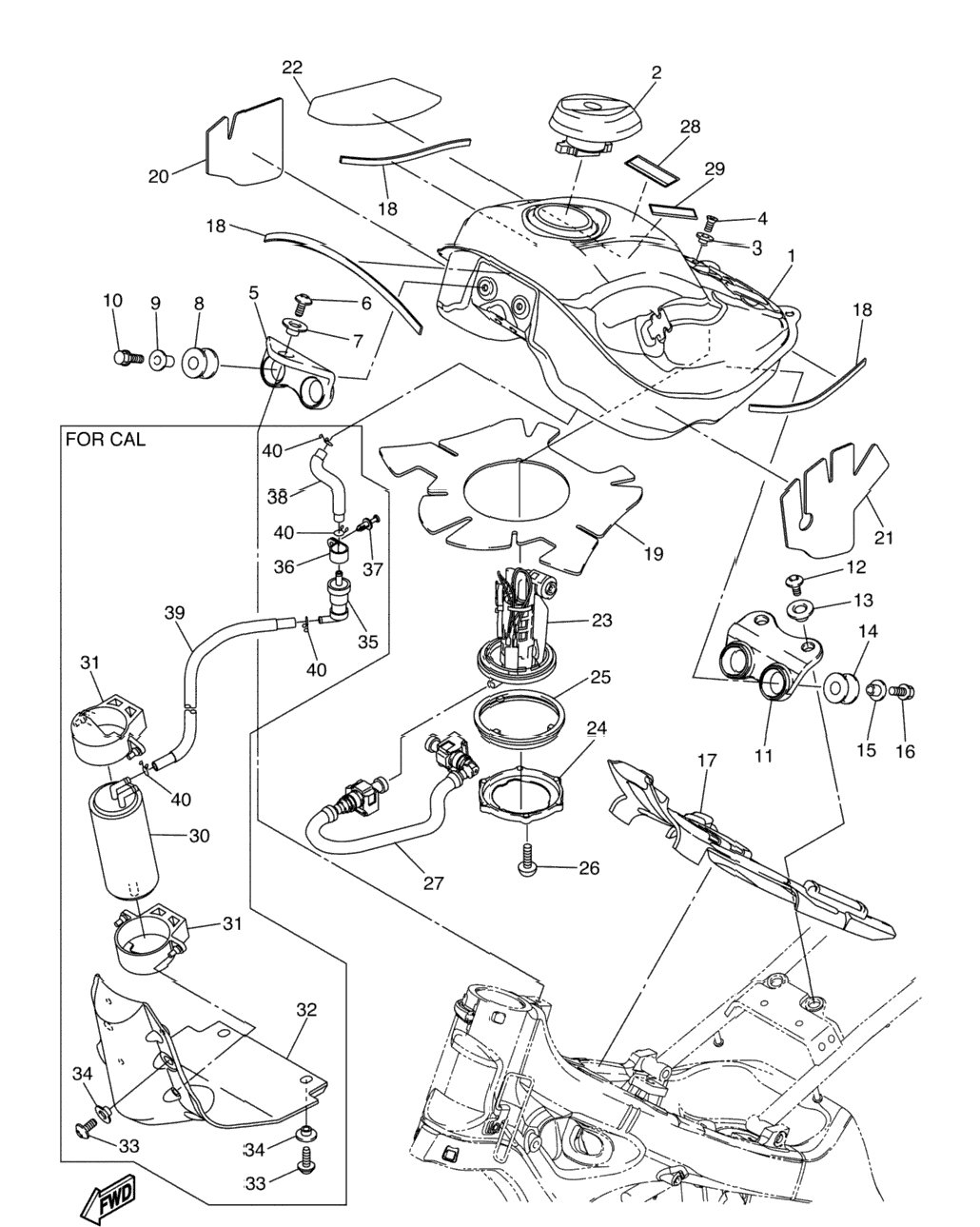

| 1 | 3D7-24110-10-P0 | Fuel Tank Comp MBL2 FOR U49 | 1 шт. | — | |
|
| 2 | 3D7-24110-30-P0 | Fuel Tank Comp MBL2 FOR CAL | 0 шт. | — | |
|
| 3 | 3D7-24602-30-00 | Cap Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 4 | 3D7-24602-20-00 | Cap Assy FOR U49 | 1 шт. | — | |
|
| 5 | 4EW-2412F-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 6 | 98707-06020-00 | Screw, Flat Head | 1 шт. | — | |
|
| 7 | 3D7-24191-00-00 | Bracket, Fuel Tank 1 | 1 шт. | — | |
|
| 8 | 90149-06022-00 | Screw | 1 шт. | — | |
|
| 9 | 90387-061U9-00 | Collar | 1 шт. | — | |
|
| 10 | 3D7-24339-00-00 | .Grommet | 2 шт. | — | |
|
| 11 | 90387-06136-00 | Collar | 2 шт. | — | |
|
| 12 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 13 | 3D7-24192-00-00 | Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 14 | 90111-06090-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 15 | 90387-061U9-00 | Collar | 2 шт. | — | |
|
| 16 | 3D7-24339-00-00 | .Grommet | 2 шт. | — | |
|
| 17 | 90387-06136-00 | Collar | 2 шт. | — | |
|
| 18 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 19 | 3D7-24181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 20 | 3D7-24188-00-00 | Mold, Fuel Tank | 3 шт. | — | |
|
| 21 | 3D7-2414N-00-00 | Damper, Plate 4 | 1 шт. | — | |
|
| 22 | 3D7-2414P-00-00 | Damper, Plate 5 | 0 шт. | — | |
|
| 23 | 3D7-2414R-01-00 | Damper, Plate 6 | 1 шт. | — | |
|
| 24 | 3D7-21268-00-00 | Seal | 1 шт. | — | |
|
| 25 | 3D7-13907-10-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 26 | 3D7-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 27 | 1S4-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 28 | 92012-05016-00 | Bolt, Button Head | 6 шт. | — | |
|
| 29 | 3D7-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 30 | 1TP-2118K-A1-00 | Label, Caution | 1 шт. | — | |
|
| 31 | 5PW-2415E-A0-00 | Label, Caution ENGLISH | 1 шт. | — | |
|
| 32 | 32C-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 33 | 32C-24182-00-00 | Damper, Locating 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 34 | 32C-2419E-00-00 | Cover, Canister FOR CALIFORNIA | 0 шт. | — | |
|
| 35 | 90111-06095-00 | Bolt, Hex. Socket Button FOR CALIFORNIA | 0 шт. | — | |
|
| 36 | 90387-07717-00 | Collar FOR CALIFORNIA | 0 шт. | — | |
|
| 37 | 5RB-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 38 | 90464-15014-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 39 | 90269-05001-00 | Rivet FOR CALIFORNIA | 0 шт. | — | |
|
| 40 | 32C-24321-00-00 | Pipe 10 FOR CALIFORNIA | 0 шт. | — | |
|
| 41 | 32C-24322-00-00 | Pipe 11 FOR CALIFORNIA | 0 шт. | — | |
|
| 42 | 90467-090A2-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
