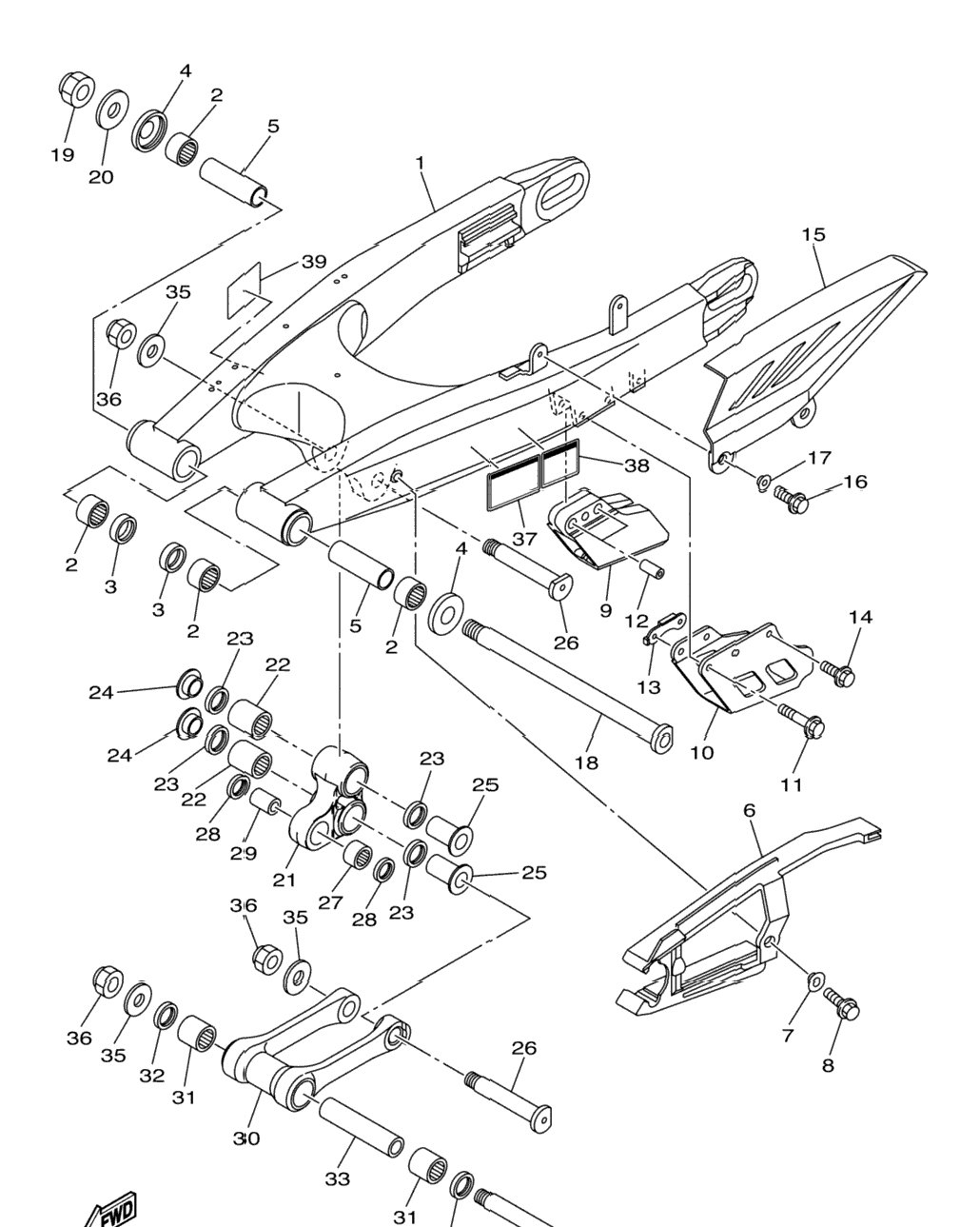

| 1 | 3D7-22110-00-00 | Rear Arm Comp | 1 шт. | — | |
|
| 2 | 93317-22262-00 | Bearing | 4 шт. | — | |
|
| 3 | 93106-22019-00 | Oil Seal (Dc 22-28-8) | 2 шт. | — | |
|
| 4 | 3D7-22128-00-00 | Cover, Thrust 1 | 2 шт. | — | |
|
| 5 | 90387-18013-00 | Collar | 2 шт. | — | |
|
| 6 | 3D7-22151-00-00 | Seal, Guard | 1 шт. | — | |
|
| 7 | 90387-06500-00 | Collar | 1 шт. | — | |
|
| 8 | 95022-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 9 | 4RR-22199-00-00 | Support, Chain | 1 шт. | — | |
|
| 10 | 4RR-22128-01-00 | Cover, Thrust 1 | 1 шт. | — | |
|
| 11 | 90105-06162-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 90387-06513-00 | Collar | 2 шт. | — | |
|
| 13 | 4RR-22143-00-00 | Nut | 1 шт. | — | |
|
| 14 | 95022-06010-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 5XT-22311-00-00 | Case, Chain | 1 шт. | — | |
|
| 16 | 95022-06010-00 | Bolt, Flange | 2 шт. | — | |
|
| 17 | 90387-06184-00 | Collar | 2 шт. | — | |
|
| 18 | 3D7-22141-00-00 | Shaft, Pivot | 1 шт. | — | |
|
| 19 | 90185-16002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 20 | 90201-16018-00 | Washer, Plate | 1 шт. | — | |
|
| 21 | 3D7-2217A-00-00 | Arm, Relay | 1 шт. | — | |
|
| 22 | 93315-32056-00 | Bearing | 2 шт. | — | |
|
| 23 | 93109-20076-00 | Oil Seal | 4 шт. | — | |
|
| 24 | 90387-16005-00 | Collar | 2 шт. | — | |
|
| 25 | 90387-16007-00 | Collar | 2 шт. | — | |
|
| 26 | 1C3-22122-00-00 | Shaft 2 | 2 шт. | — | |
|
| 27 | 93315-31758-00 | Bearing | 1 шт. | — | |
|
| 28 | 93109-17071-00 | Oil Seal | 2 шт. | — | |
|
| 29 | 90387-1012A-00 | Collar | 1 шт. | — | |
|
| 30 | 3D7-2217F-00-00 | Rod, Connecting 1 | 1 шт. | — | |
|
| 31 | 93315-32165-00 | Bearing | 2 шт. | — | |
|
| 32 | 93109-21001-00 | Oil Seal | 2 шт. | — | |
|
| 33 | 90387-14012-00 | Collar | 1 шт. | — | |
|
| 34 | 3D7-22121-00-00 | Shaft 1 | 1 шт. | — | |
|
| 35 | 90201-14020-00 | Washer, Plate | 3 шт. | — | |
|
| 36 | 90185-14010-00 | Nut, Self-Locking | 3 шт. | — | |
|
| 37 | 32C-21668-00-00 | Label, Tire | 1 шт. | — | |
|
| 38 | 32C-21686-00-00 | Plate, Routing 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 39 | 34B-21684-00-00 | Plate, Routing FOR CALIFORNIA | 0 шт. | — | |
|
