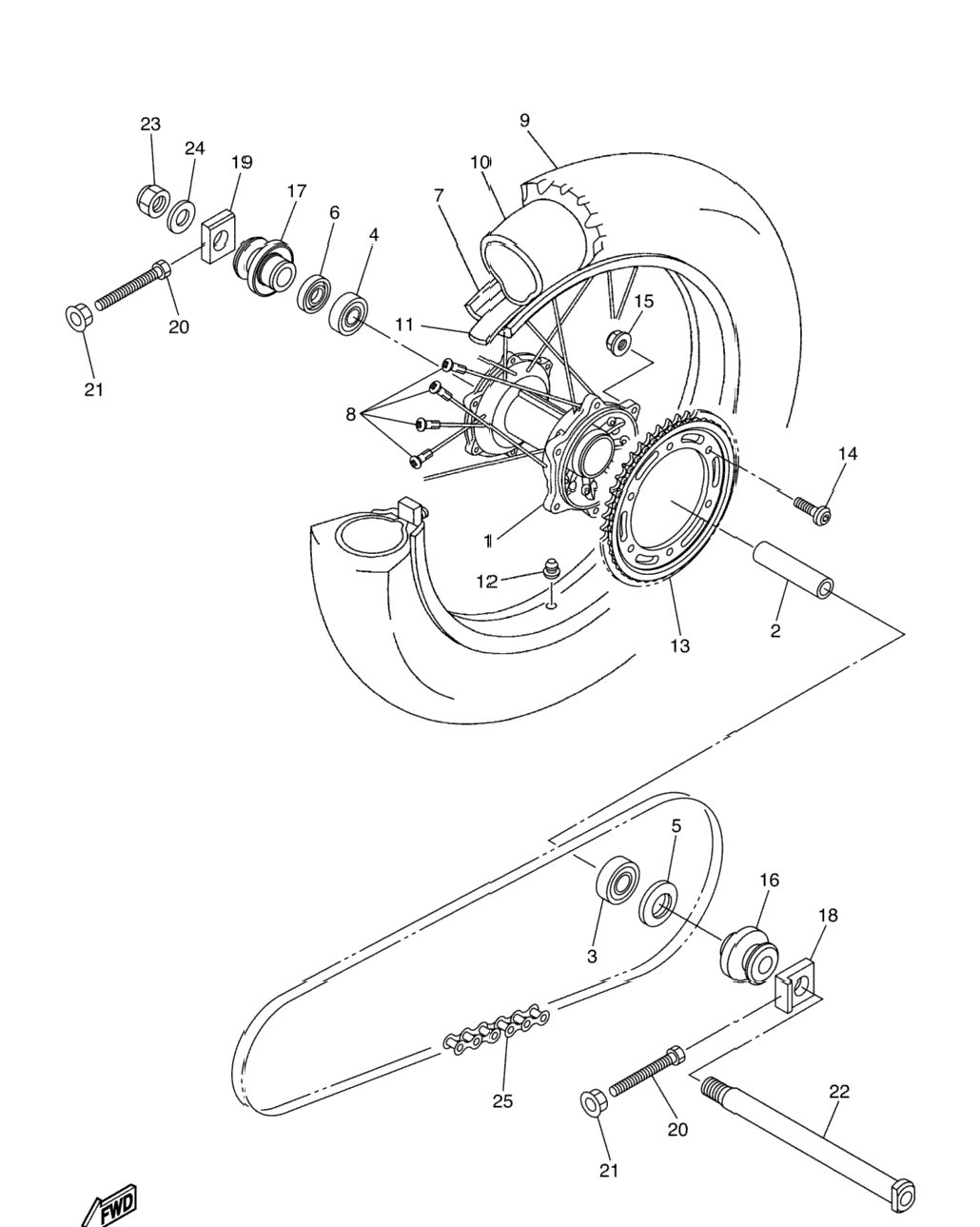

| 1 | 3D7-25311-00-00 | Hub, Rear | 1 шт. | — | |
|
| 2 | 5ET-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 3 | 93306-27205-00 | Bearing | 1 шт. | — | |
|
| 4 | 93306-07202-00 | Bearing | 1 шт. | — | |
|
| 5 | 93106-30001-00 | Oil Seal | 1 шт. | — | |
|
| 6 | 93106-30045-00 | Oil Seal | 1 шт. | — | |
|
| 7 | 94421-18016-00 | Rim (2.15-18) | 1 шт. | — | |
|
| 8 | 3D7-25304-00-00 | Spoke Set, Rear | 1 шт. | — | |
|
| 9 | 94112-18028-00 | Tire (120/80-18 M/C 26P) BRIDGESTONE | 1 шт. | — | |
|
| 10 | 94212-18230-00 | Tube (120/80-18 M/C Tr4) BRIDGESTONE | 1 шт. | — | |
|
| 11 | 94340-18086-00 | Band, Rim (2.50-18) BRIDGESTONE | 1 шт. | — | |
|
| 12 | 90480-08608-00 | Grommet | 2 шт. | — | |
|
| 13 | 32C-25443-00-00 | Sprocket, Rear Wheel(43T) | 1 шт. | — | |
|
| 14 | 90111-08030-00 | Bolt, Hex. Socket Button | 6 шт. | — | |
|
| 15 | 95602-08200-00 | .Nut, U Flange | 6 шт. | — | |
|
| 16 | 3D7-2530S-00-00 | Collar Assy | 0 шт. | — | |
|
| 17 | 3D7-2531S-00-00 | Collar Assy | 1 шт. | — | |
|
| 18 | 1C3-25388-H0-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 19 | 1C3-25389-H0-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 20 | 90101-08006-00 | Bolt | 2 шт. | — | |
|
| 21 | 90179-08019-00 | Nut | 2 шт. | — | |
|
| 22 | 3D7-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 23 | 90185-20002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 24 | 90201-20020-00 | Washer, Plate | 1 шт. | — | |
|
| 25 | 94582-02108-00 | Chain (D.I.D.520V-108Le) | 1 шт. | — | |
|
