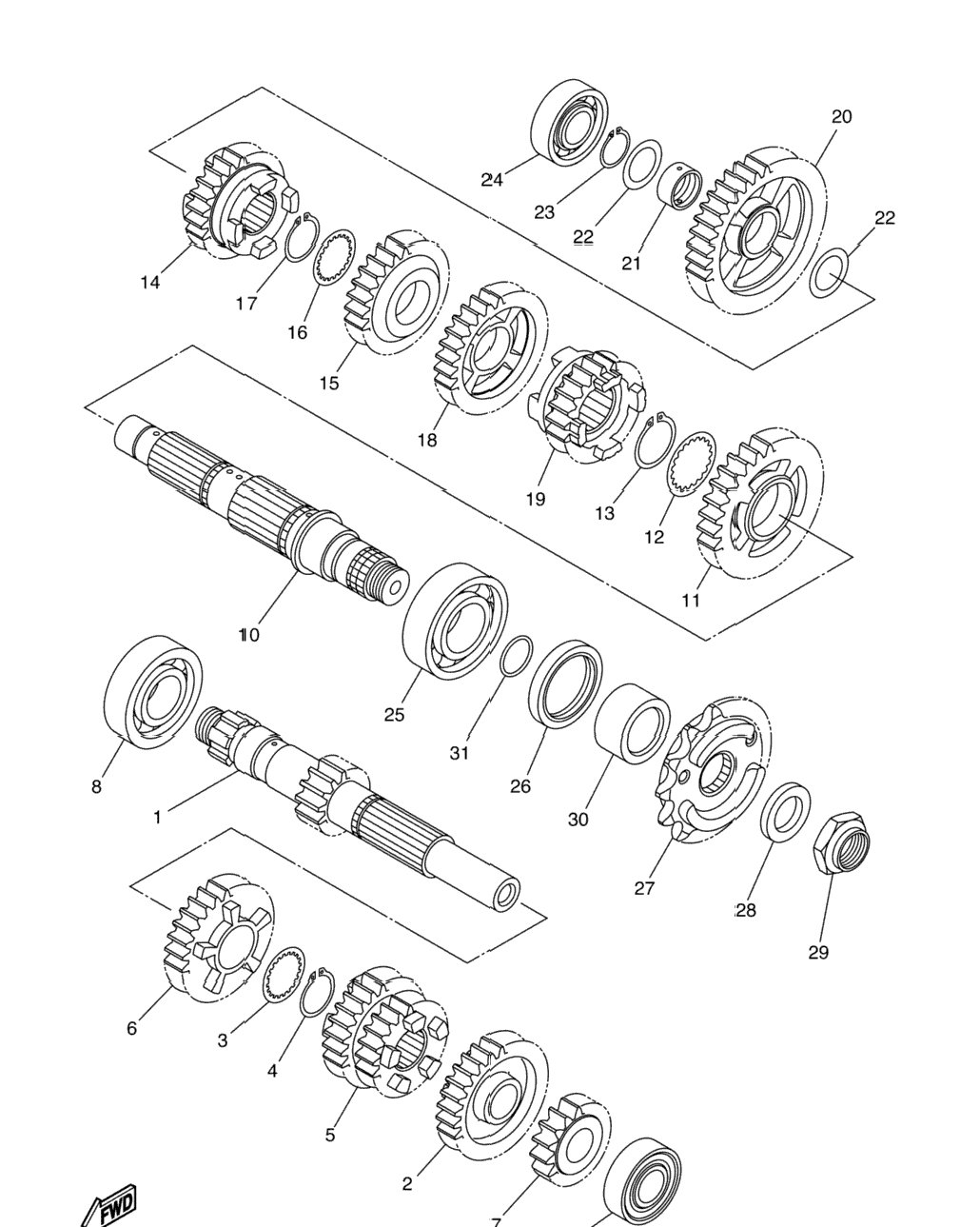

| 1 | 3D7-17411-00-00 | Axle, Main (14T) | 1 шт. | — | |
|
| 2 | 3D7-17161-00-00 | Gear, 6Th Pinion (28T) | 1 шт. | — | |
|
| 3 | 90209-20008-00 | Washer | 1 шт. | — | |
|
| 4 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 5 | 3D7-17131-00-00 | Gear, 3Rd Pinion (22T/25T) | 1 шт. | — | |
|
| 6 | 3D7-17151-00-00 | Gear, 5Th Pinion (27T) | 1 шт. | — | |
|
| 7 | 3D7-17121-00-YX | Gear, 2Nd Pinion (16T) | 1 шт. | — | |
|
| 8 | 93306-20447-00 | Bearing | 1 шт. | — | |
|
| 9 | 93306-20332-00 | Bearing | 1 шт. | — | |
|
| 10 | 3D7-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 11 | 3D7-17221-00-00 | Gear, 2Nd Wheel (29T) | 1 шт. | — | |
|
| 12 | 90209-23012-00 | Washer | 1 шт. | — | |
|
| 13 | 93410-26067-00 | Circlip | 1 шт. | — | |
|
| 14 | 3D7-17251-00-00 | Gear, 5Th Wheel (24T) | 1 шт. | — | |
|
| 15 | 3D7-17241-00-00 | Gear, 4Th Wheel (26T) | 1 шт. | — | |
|
| 16 | 90209-20008-00 | Washer | 1 шт. | — | |
|
| 17 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 18 | 3D7-17231-00-00 | Gear, 3Rd Wheel (29T) | 1 шт. | — | |
|
| 19 | 3D7-17261-00-00 | Gear, 6Th Wheel (22T) | 1 шт. | — | |
|
| 20 | 3D7-17211-00-00 | Gear, 1St Wheel (37T) | 1 шт. | — | |
|
| 21 | 90387-17012-00 | Collar | 1 шт. | — | |
|
| 22 | 90201-177G4-00 | .Washer, Plate | 2 шт. | — | |
|
| 23 | 93410-17037-00 | Circlip | 1 шт. | — | |
|
| 24 | 93306-20332-00 | Bearing | 1 шт. | — | |
|
| 25 | 93306-20532-00 | Bearing | 1 шт. | — | |
|
| 26 | 93102-32480-00 | .Oil Seal | 1 шт. | — | |
|
| 27 | 3D7-17460-00-00 | Sprocket, Drive (13T) | 1 шт. | — | |
|
| 28 | 90201-18026-00 | Washer, Plate | 1 шт. | — | |
|
| 29 | 90179-18010-00 | Nut | 1 шт. | — | |
|
| 30 | 90387-22013-00 | Collar | 1 шт. | — | |
|
| 31 | 93210-196A4-00 | O-Ring | 1 шт. | — | |
|
