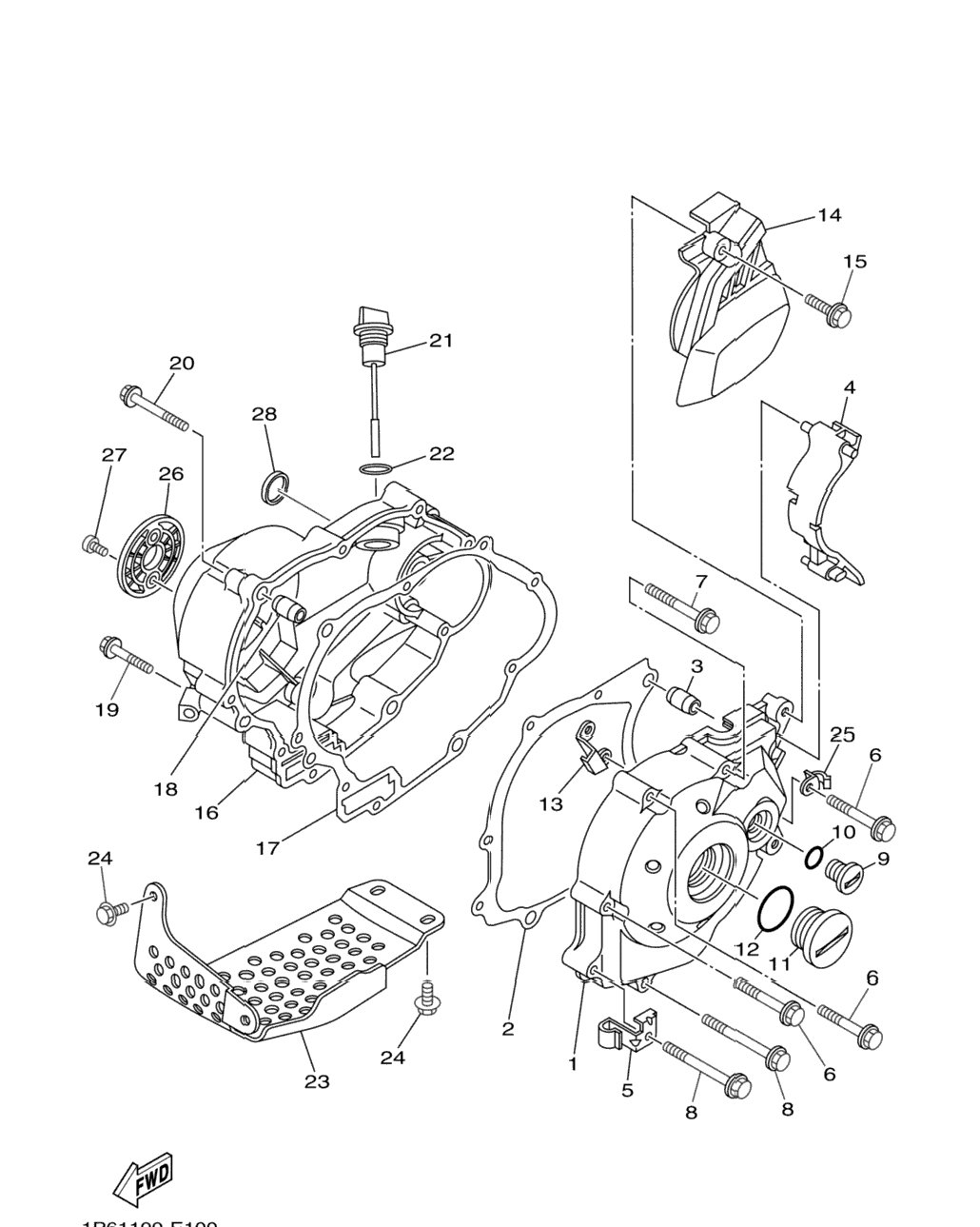

| 1 | 1P6-E5411-20-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 1P6-E5451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 4 | 1P6-E7466-00-00 | Guide, Chain | 1 шт. | — | |
|
| 5 | 1P6-E5484-01-00 | Clamp 2 | 0 шт. | — | |
|
| 8 | 90105-065A1-00 | Bolt, Flange | 2 шт. | — | |
|
| 9 | 90340-14818-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 10 | 93210-14899-00 | O-Ring | 1 шт. | — | |
|
| 11 | 90340-32813-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 12 | 93210-328A4-00 | O-Ring | 1 шт. | — | |
|
| 13 | 1P6-E5113-00-00 | Plate | 1 шт. | — | |
|
| 14 | 1P6-E5418-00-00 | Cover, Chain Case | 1 шт. | — | |
|
| 15 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 16 | 1P6-E5421-20-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 17 | 1P6-E5461-00-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 18 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 18 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 19 | 95027-06040-00 | .Bolt, Flange | 4 шт. | — | |
|
| 19 | 95027-06040-00 | .Bolt, Flange | 3 шт. | — | |
|
| 20 | 95027-06050-00 | Bolt, Flange | 6 шт. | — | |
|
| 20 | 95027-06050-00 | Bolt, Flange | 2 шт. | — | |
|
| 21 | 1P6-E5362-00-00 | Plug, Oil Level | 1 шт. | — | |
|
| 22 | 93210-19809-00 | O-Ring | 1 шт. | — | |
|
| 23 | 1P6-E5436-01-00 | Cover, Starting Motor | 1 шт. | — | |
|
| 24 | 95822-08016-00 | Bolt, Flange | 2 шт. | — | |
|
| 25 | 90465-08803-00 | Clamp | 1 шт. | — | |
|
| 26 | 1P6-E5431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 27 | 98507-05008-00 | Screw, Pan Head | 2 шт. | — | |
|
| 28 | 90338-26802-00 | Plug | 1 шт. | — | |
|
