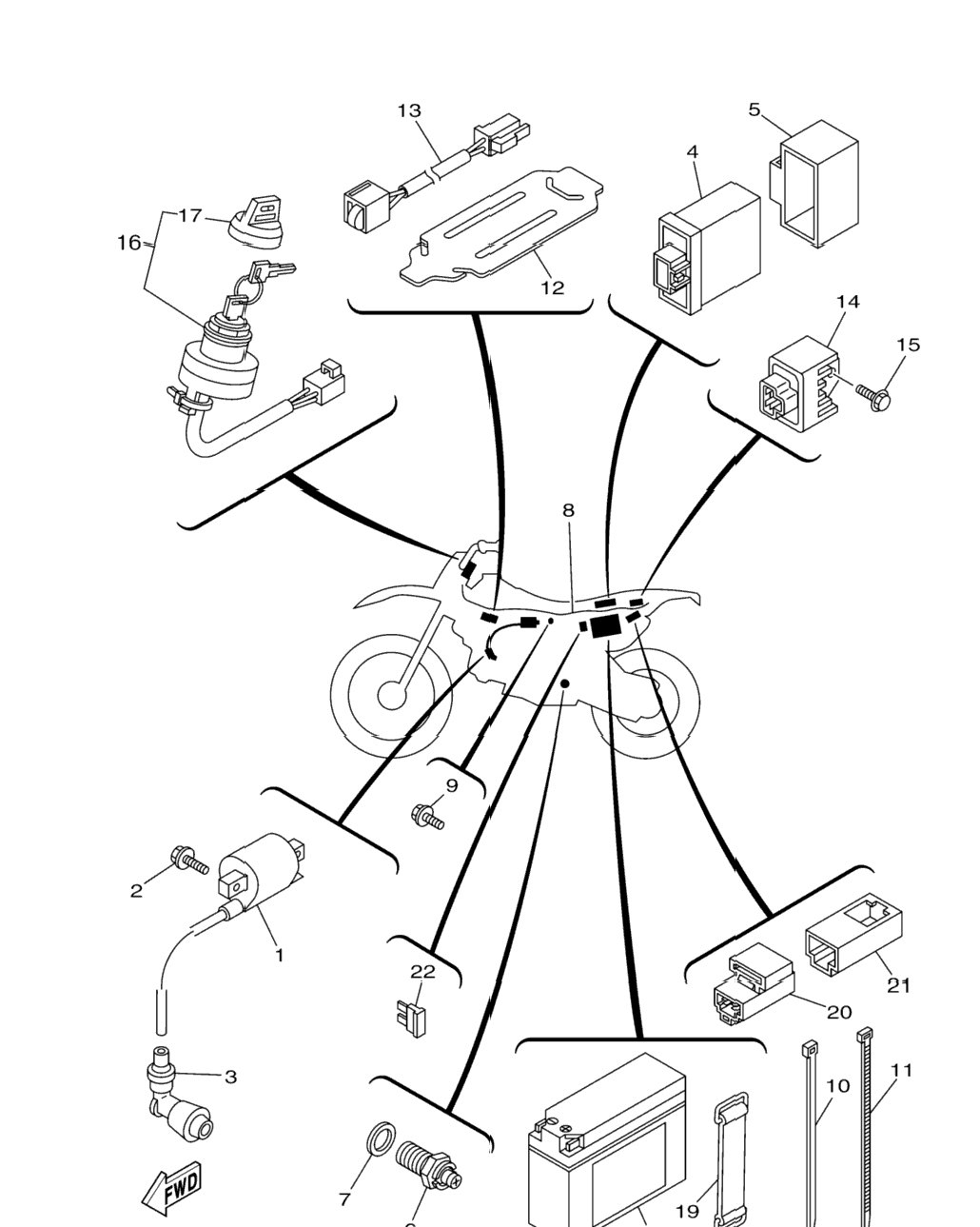

| 1 | 1P6-H2310-00-00 | Ignition Coil Assy | 1 шт. | — | |
|
| 2 | 95022-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 3 | 4BP-82370-00-00 | Plug Cap Assy | 1 шт. | — | |
|
| 4 | 1P6-H5540-00-00 | C.D.I. Unit Assy | 1 шт. | — | |
|
| 5 | 1P6-H5546-00-00 | Band | 1 шт. | — | |
|
| 6 | 5VL-H2540-11-00 | Neutral Switch Assy | 1 шт. | — | |
|
| 7 | 90430-10188-00 | Gasket | 1 шт. | — | |
|
| 8 | 1P6-H2590-00-00 | Wire Harness Assy | 1 шт. | — | |
|
| 9 | 97502-06514-00 | Bolt, With Washer | 1 шт. | — | |
|
| 10 | 90464-35803-00 | Clamp | 5 шт. | — | |
|
| 11 | 90464-20818-00 | Clamp | 0 шт. | — | |
|
| 12 | 12B-H252U-00-00 | Cover | 1 шт. | — | |
|
| 13 | 5FU-82560-30-00 | Thermo Switch Assy | 1 шт. | — | |
|
| 14 | 4GU-H1960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 15 | 97502-06514-00 | Bolt, With Washer | 1 шт. | — | |
|
| 16 | 1P6-H2510-11-00 | Main Switch Assy | 1 шт. | — | |
|
| 17 | 1P6-H2579-00-00 | . .Cap, Key | 1 шт. | — | |
|
| 18 | 4JS-82100-10-00 | Battery Assy (Gs Yuasa Gt4b-5) | 1 шт. | — | |
|
| 19 | 1P6-H2131-00-00 | Band, Battery | 1 шт. | — | |
|
| 20 | 29U-81950-93-00 | Relay Assy (Aca12115-1) | 1 шт. | — | |
|
| 21 | 1P6-H252U-00-00 | Cover | 1 шт. | — | |
|
| 22 | 1P6-H2151-00-00 | Fuse (10A) | 1 шт. | — | |
|
