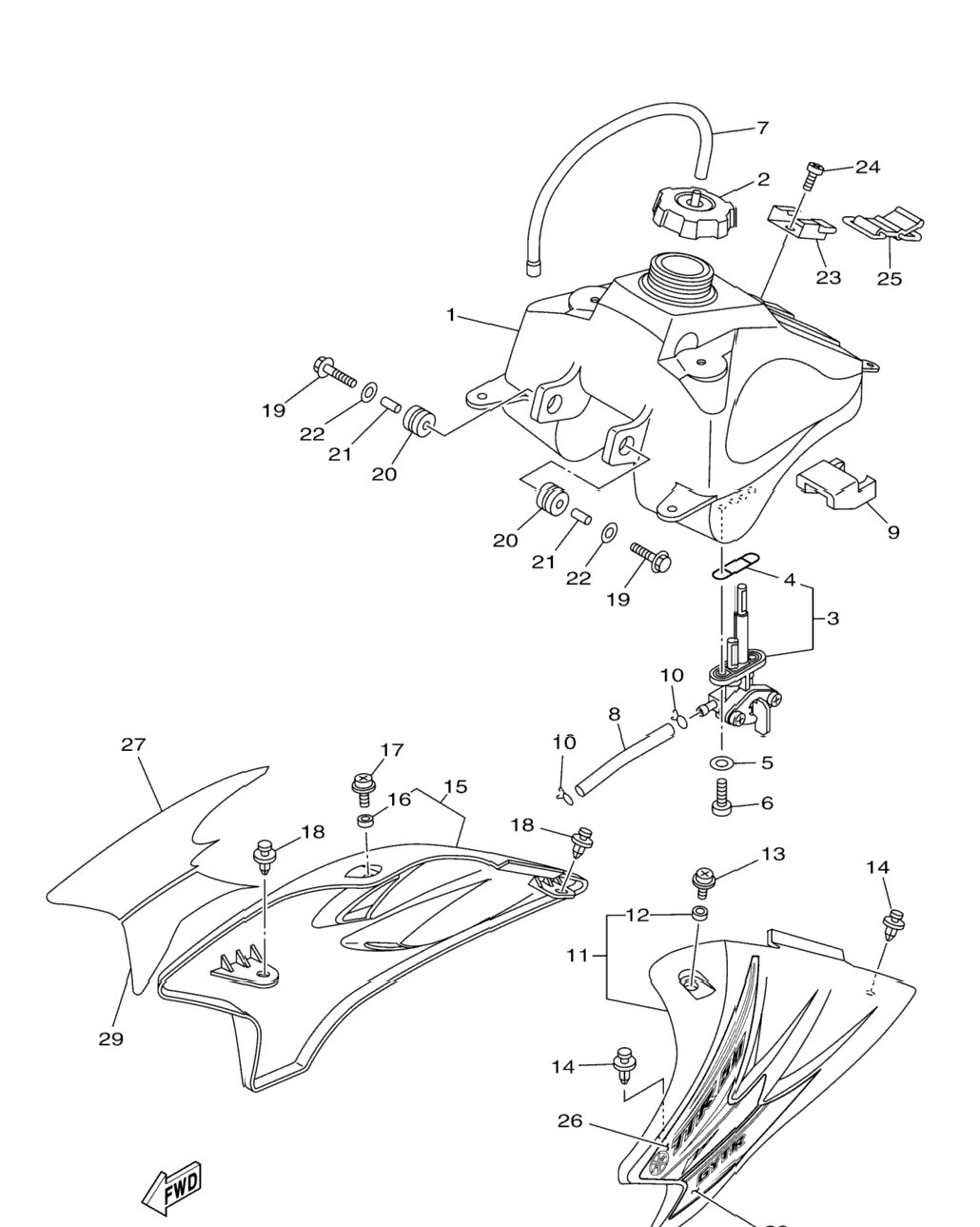

| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 1P6-24110-10-00 | Fuel Tank Comp | 1 шт. | — | |
|
| 2 | 2FJ-24610-10-00 | Cap Assy | 1 шт. | — | |
|
| 3 | 1P6-24500-10-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 4 | 1P6-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 5 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 6 | 90149-06011-00 | Screw | 2 шт. | — | |
|
| 7 | 1P6-F1826-10-00 | Pipe, Breather | 1 шт. | — | |
|
| 8 | 1P6-24311-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 9 | 1P6-F4181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 10 | 90467-09854-00 | Clip | 2 шт. | — | |
|
| 11 | 1P6-F137A-00-00 | Scoop Air Assy. 1 | 1 шт. | — | |
|
| 12 | 90387-07805-00 | . .Collar | 1 шт. | — | |
|
| 13 | 90159-06182-00 | Screw, With Washer | 1 шт. | — | |
|
| 14 | 90269-07076-00 | Rivet | 2 шт. | — | |
|
| 15 | 1P6-F137B-00-00 | Scoop Air Assy. 2 | 1 шт. | — | |
|
| 16 | 90387-07805-00 | . .Collar | 1 шт. | — | |
|
| 17 | 90159-06182-00 | Screw, With Washer | 1 шт. | — | |
|
| 18 | 90269-07076-00 | Rivet | 2 шт. | — | |
|
| 19 | 95807-06030-00 | Bolt, Flange | 2 шт. | — | |
|
| 20 | 90480-18803-00 | Grommet | 2 шт. | — | |
|
| 21 | 90387-07804-00 | Collar | 2 шт. | — | |
|
| 22 | 90201-06072-00 | Washer, Plate | 2 шт. | — | |
|
| 23 | 1P6-F4116-01-00 | Stay, Fuel Tank 2 | 1 шт. | — | |
|
| 24 | 98902-06010-00 | Screw, Bind | 1 шт. | — | |
|
| 25 | 1P6-F4173-00-00 | Band, Tank Fitting 1 | 1 шт. | — | |
|
| 26 | 1P6-F4244-B0-00 | Graphic, Fuel Tank 1 | 1 шт. | — | |
|
| 27 | 1P6-F4245-B0-00 | Graphic, Fuel Tank 2 | 1 шт. | — | |
|
| 28 | 1P6-F4246-B0-00 | Graphic 3 | 1 шт. | — | |
|
| 29 | 1P6-F4247-B0-00 | Graphic | 1 шт. | — | |
|
