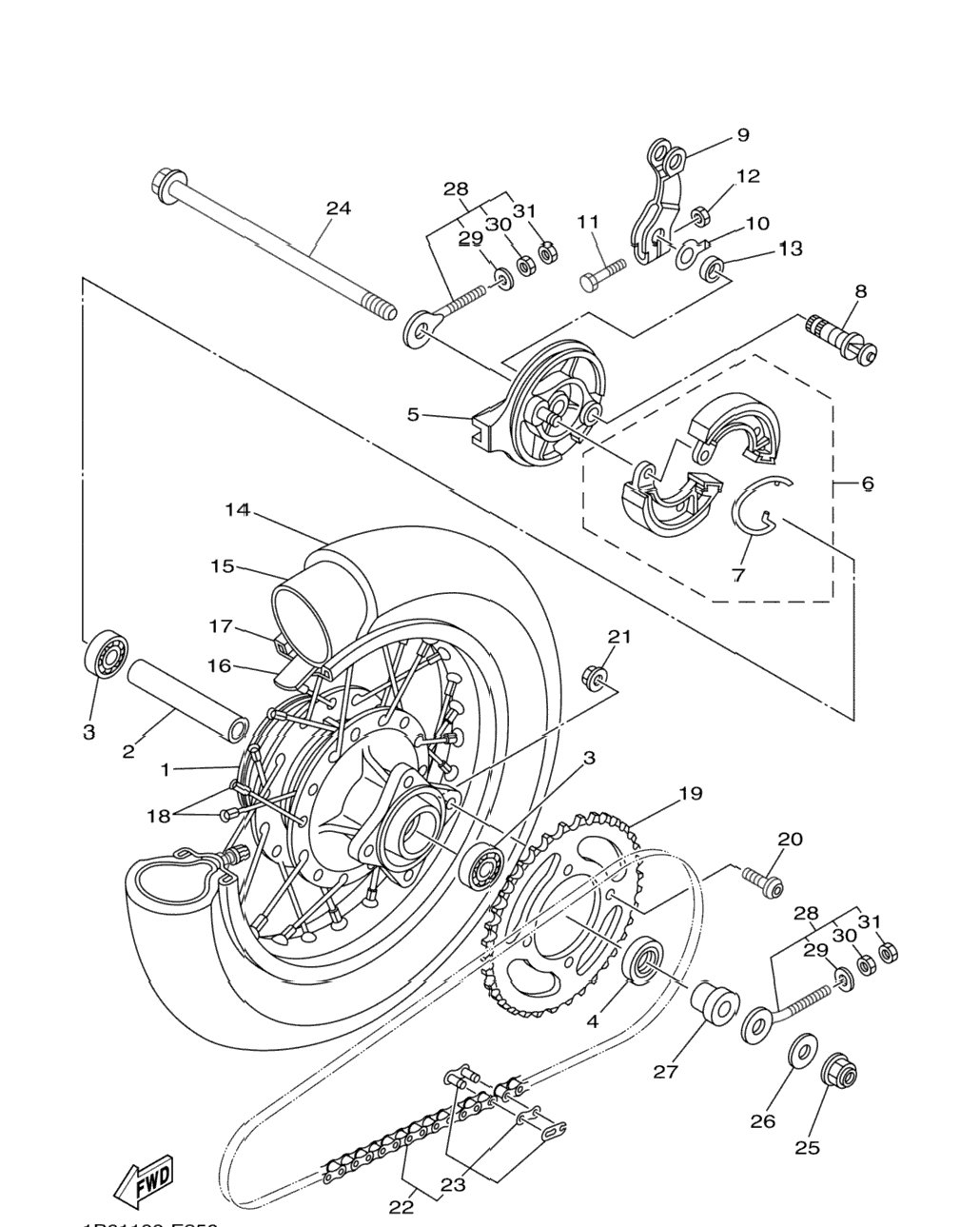

| 1 | 1P6-F5311-00-00 | Hub, Rear | 1 шт. | — | |
|
| 2 | 90387-12832-00 | Collar | 1 шт. | — | |
|
| 3 | 93306-201X1-00 | Bearing | 2 шт. | — | |
|
| 4 | 93106-20811-00 | Oil Seal | 1 шт. | — | |
|
| 5 | 1P6-F5121-00-00 | Plate, Brake Shoe | 1 шт. | — | |
|
| 6 | 1P6-W253A-00-00 | Brake Shoe Kit | 1 шт. | — | |
|
| 7 | 1P6-25133-00-00 | . .Spring, Return | 1 шт. | — | |
|
| 8 | 1P6-F5151-01-00 | Camshaft | 1 шт. | — | |
|
| 9 | 1P6-F5155-01-00 | Lever, Camshaft 1 | 1 шт. | — | |
|
| 10 | 1P6-F533A-01-00 | Plate, Indicator | 1 шт. | — | |
|
| 11 | 90101-06278-00 | Bolt | 1 шт. | — | |
|
| 12 | 95307-06600-00 | Nut | 1 шт. | — | |
|
| 13 | 93104-12800-00 | Oil Seal | 1 шт. | — | |
|
| 14 | 94125-10800-00 | Tire (2.50-10 C183a 4Pr Tt) CHENG SHIN | 0 шт. | — | |
|
| 15 | 94225-10800-00 | Tube (2.50-10 Tr4) CHENG SHIN | 1 шт. | — | |
|
| 16 | 94325-10800-00 | Band, Rim (2.50-10) CHENG SHIN | 1 шт. | — | |
|
| 17 | 94414-10800-00 | Rim (1.40-10) | 1 шт. | — | |
|
| 18 | 1P6-F5104-01-00 | Spoke Set, Front | 1 шт. | — | |
|
| 19 | 1P6-F5437-11-00 | Sprocket, Driven (37T) | 1 шт. | — | |
|
| 20 | 90111-08024-00 | Bolt, Hex. Socket Button | 4 шт. | — | |
|
| 21 | 95602-08200-00 | Nut, U Flange | 4 шт. | — | |
|
| 22 | 94568-A1080-00 | Chain | 1 шт. | — | |
|
| 23 | 94668-A1001-00 | . .Joint, Chain | 1 шт. | — | |
|
| 24 | 1P6-F5381-01-00 | Axle, Wheel | 1 шт. | — | |
|
| 25 | 95602-12200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 26 | 90201-12190-00 | Washer, Plate | 1 шт. | — | |
|
| 27 | 90387-12834-00 | Collar | 1 шт. | — | |
|
| 28 | 1P6-F538G-11-00 | Puller, Chain | 2 шт. | — | |
|
| 29 | 90201-06861-00 | . .Washer, Plate | 1 шт. | — | |
|
| 30 | 90170-06809-00 | . .Nut | 1 шт. | — | |
|
| 31 | 95307-06600-00 | . Nut | 1 шт. | — | |
|
