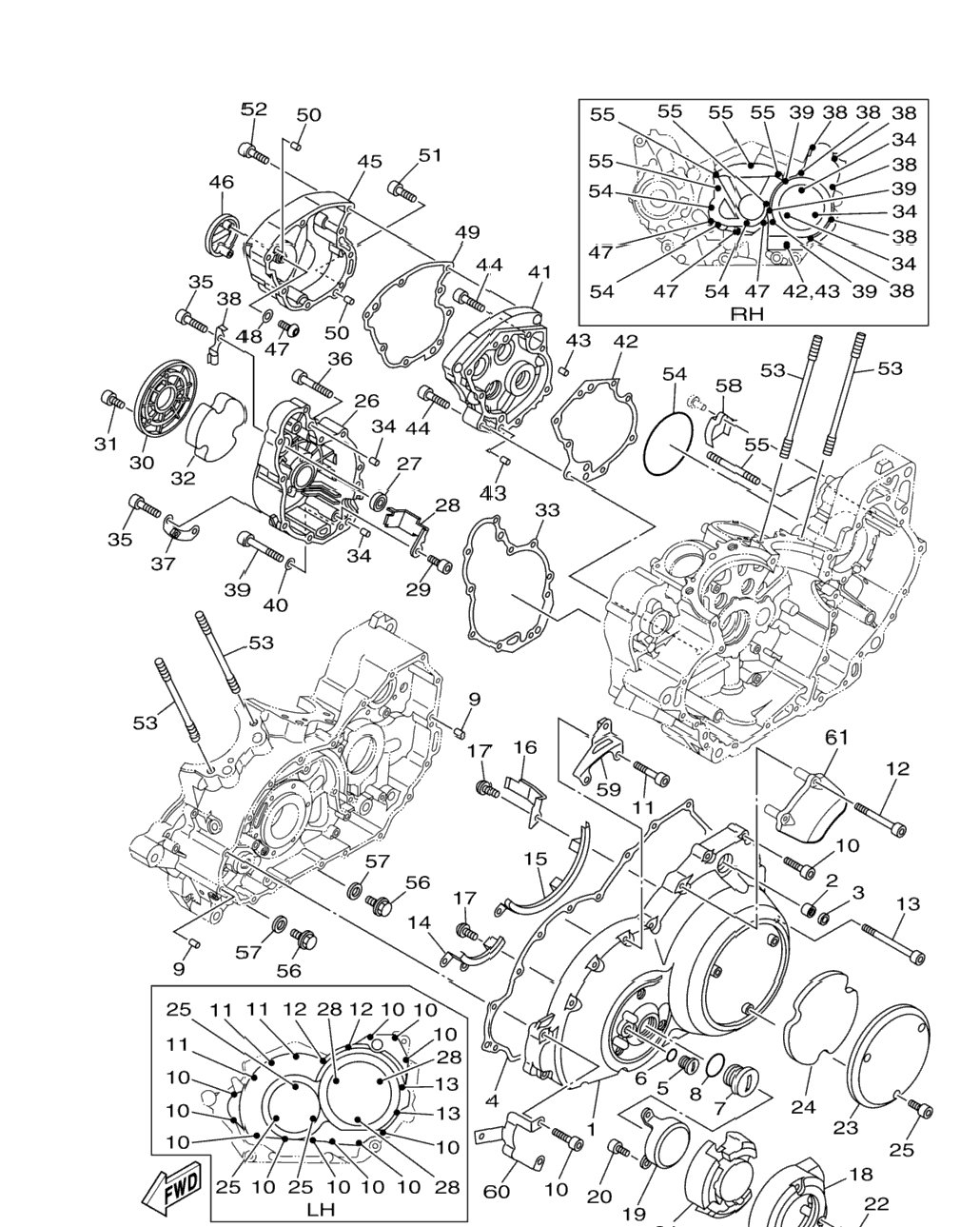

| 1 | 1D7-15411-10-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 93317-11287-00 | Bearing | 1 шт. | — | |
|
| 3 | 93102-12224-00 | Oil Seal | 1 шт. | — | |
|
| 4 | 1D7-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 5 | 90340-14117-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 6 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 7 | 90340-32154-00 | Plug, Straight Screw | 0 шт. | — | |
|
| 8 | 93210-32172-00 | O-Ring | 1 шт. | — | |
|
| 11 | 91314-06045-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 12 | 91314-06080-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 13 | 91314-06100-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 14 | 1D7-15142-00-00 | Guide 1 | 1 шт. | — | |
|
| 15 | 1D7-15143-00-00 | Guide | 1 шт. | — | |
|
| 16 | 5C7-15484-00-00 | Clamp 2 | 1 шт. | — | |
|
| 18 | 1D7-15423-10-00 | Cover 2 | 1 шт. | — | |
|
| 19 | 5C7-15425-00-00 | Cover, Generator 2 | 1 шт. | — | |
|
| 20 | 91312-05010-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 21 | 1D7-15316-00-00 | Damper 1 | 1 шт. | — | |
|
| 22 | 92014-06040-00 | .Bolt, Button Head | 3 шт. | — | |
|
| 23 | 1D7-15415-10-00 | Cover, 1 | 1 шт. | — | |
|
| 24 | 1D7-1542A-10-00 | Damper 1 | 1 шт. | — | |
|
| 25 | 90110-06254-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 26 | 1D7-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 27 | 93306-00006-00 | Bearing | 1 шт. | — | |
|
| 28 | 4WM-15377-00-00 | Guide, Inlet | 1 шт. | — | |
|
| 29 | 90149-06158-00 | Screw | 1 шт. | — | |
|
| 30 | 1D7-15492-10-00 | Cover | 1 шт. | — | |
|
| 31 | 90110-05013-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 32 | 1D7-15326-10-00 | Damper 2 | 1 шт. | — | |
|
| 33 | 1D7-15461-00-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 35 | 91314-06035-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 35 | 91314-06035-00 | Bolt, Hexagon Socket Head | 11 шт. | — | |
|
| 36 | 91314-06055-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 37 | 1D7-26298-00-00 | Plate, Mirror Fitting 1 | 1 шт. | — | |
|
| 38 | 1D7-2612E-00-00 | Bracket | 1 шт. | — | |
|
| 39 | 91314-06065-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 41 | 1D7-15430-01-00 | Crankcase Cover Assy 3 | 1 шт. | — | |
|
| 42 | 1D7-15462-00-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 44 | 90110-06299-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 45 | 1D7-15429-10-00 | Cover, Shifter | 1 шт. | — | |
|
| 46 | 1D7-15427-00-00 | Cover, Cap 2 | 1 шт. | — | |
|
| 47 | 90149-06069-00 | Screw | 2 шт. | — | |
|
| 47 | 90149-06069-00 | Screw | 6 шт. | — | |
|
| 48 | 90430-06014-00 | Gasket | 1 шт. | — | |
|
| 48 | 90430-06014-00 | Gasket | 2 шт. | — | |
|
| 49 | 1D7-12286-00-00 | Gasket, Decompression | 1 шт. | — | |
|
| 50 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 50 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 50 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 50 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 51 | 91314-06025-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 52 | 91314-06040-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 53 | 90116-12240-00 | Bolt, Stud | 8 шт. | — | |
|
| 54 | 93210-85M32-00 | O-Ring | 1 шт. | — | |
|
| 55 | 90116-10028-00 | Bolt, Stud | 1 шт. | — | |
|
| 56 | 90340-14005-00 | Plug, Straight Screw | 2 шт. | — | |
|
| 57 | 214-11198-01-00 | .Gasket | 2 шт. | — | |
|
| 58 | 1D7-15413-00-00 | Cover | 1 шт. | — | |
|
| 59 | 5C7-24364-00-00 | Stay | 1 шт. | — | |
|
| 60 | 5C7-24396-00-00 | Plate FOR U49 | 1 шт. | — | |
|
| 61 | 5C7-15499-11-00 | Protector, Cover | 1 шт. | — | |
|
