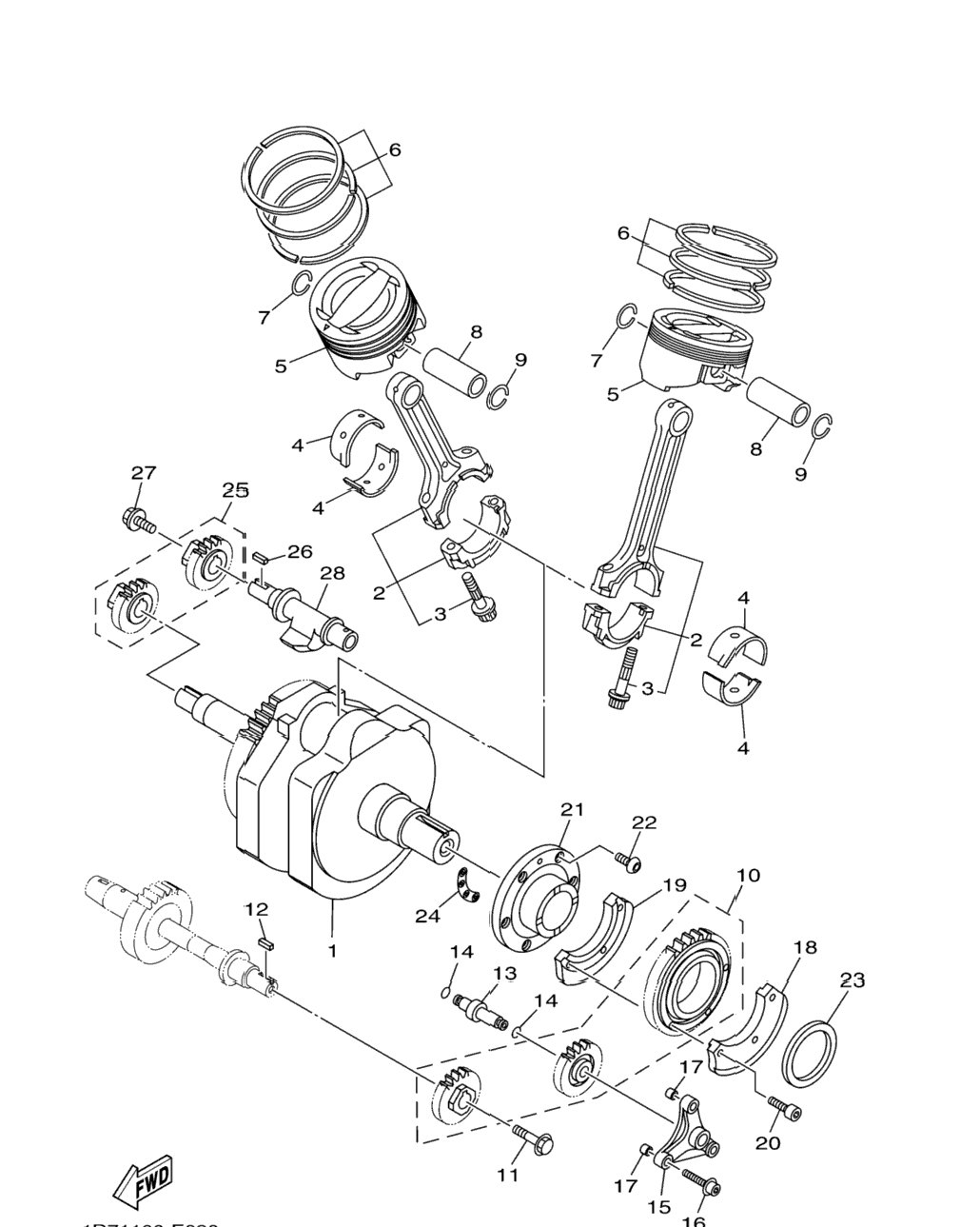

| 1 | 5C7-11400-01-00 | Crankshaft Assy | 1 шт. | — | |
|
| 2 | 5C7-11650-01-00 | Connecting Rod Assy | 2 шт. | — | |
|
| 3 | 5YU-11654-00-00 | . .Bolt, Connecting Rod | 2 шт. | — | |
|
| 4 | 5YU-11656-10-00 | Plane Bearing, Connecting Rod UR BLACK | 4 шт. | — | |
|
| 4 | 5YU-11656-00-00 | Plane Bearing, Connecting Rod UR BLUE | 4 шт. | — | |
|
| 4 | 5YU-11656-20-00 | Plane Bearing, Connecting Rod UR BROWN | 4 шт. | — | |
|
| 4 | 5YU-11656-30-00 | Plane Bearing, Connecting Rod UR GREEN | 4 шт. | — | |
|
| 4 | 5YU-11656-40-00 | Plane Bearing, Connecting Rod UR YELLOW | 4 шт. | — | |
|
| 5 | 1D7-11631-00-00 | Piston (Std) | 2 шт. | — | |
|
| 6 | 1D7-11610-00-00 | Piston Ring Set (Std) | 2 шт. | — | |
|
| 8 | 5VK-11633-00-00 | Pin, Piston | 2 шт. | — | |
|
| 9 | 93450-24154-00 | Circlip | 2 шт. | — | |
|
| 9 | 93450-24154-00 | Circlip | 2 шт. | — | |
|
| 10 | 1D7-W114B-00-00 | Drive Gear Set | 1 шт. | — | |
|
| 11 | 90105-10152-00 | Bolt, Flange | 1 шт. | — | |
|
| 13 | 1D7-11455-00-00 | Shaft 1 | 1 шт. | — | |
|
| 14 | 93210-06003-00 | O-Ring | 2 шт. | — | |
|
| 15 | 1D7-1135A-00-00 | Bracket | 1 шт. | — | |
|
| 16 | 90109-06028-00 | Bolt | 3 шт. | — | |
|
| 17 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 18 | 1D7-11454-00-00 | Weight 1 | 1 шт. | — | |
|
| 19 | 1D7-1145A-00-00 | Weight 3 | 1 шт. | — | |
|
| 20 | 90110-06211-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 21 | 1D7-11444-00-00 | Housing | 1 шт. | — | |
|
| 22 | 90149-06166-00 | Screw | 6 шт. | — | |
|
| 23 | 1D7-11483-00-00 | Washer, Weight 1 | 1 шт. | — | |
|
| 24 | 1D7-11479-00-00 | Gasket | 1 шт. | — | |
|
| 25 | 1D7-W114A-00-00 | Breaker Gear Set | 1 шт. | — | |
|
| 26 | 90282-04001-00 | .Key, Straight | 1 шт. | — | |
|
| 26 | 90282-04001-00 | .Key, Straight | 1 шт. | — | |
|
| 27 | 90105-10445-00 | .Bolt, Flange | 1 шт. | — | |
|
| 28 | 1D7-11464-00-00 | Weight 2 | 1 шт. | — | |
|
