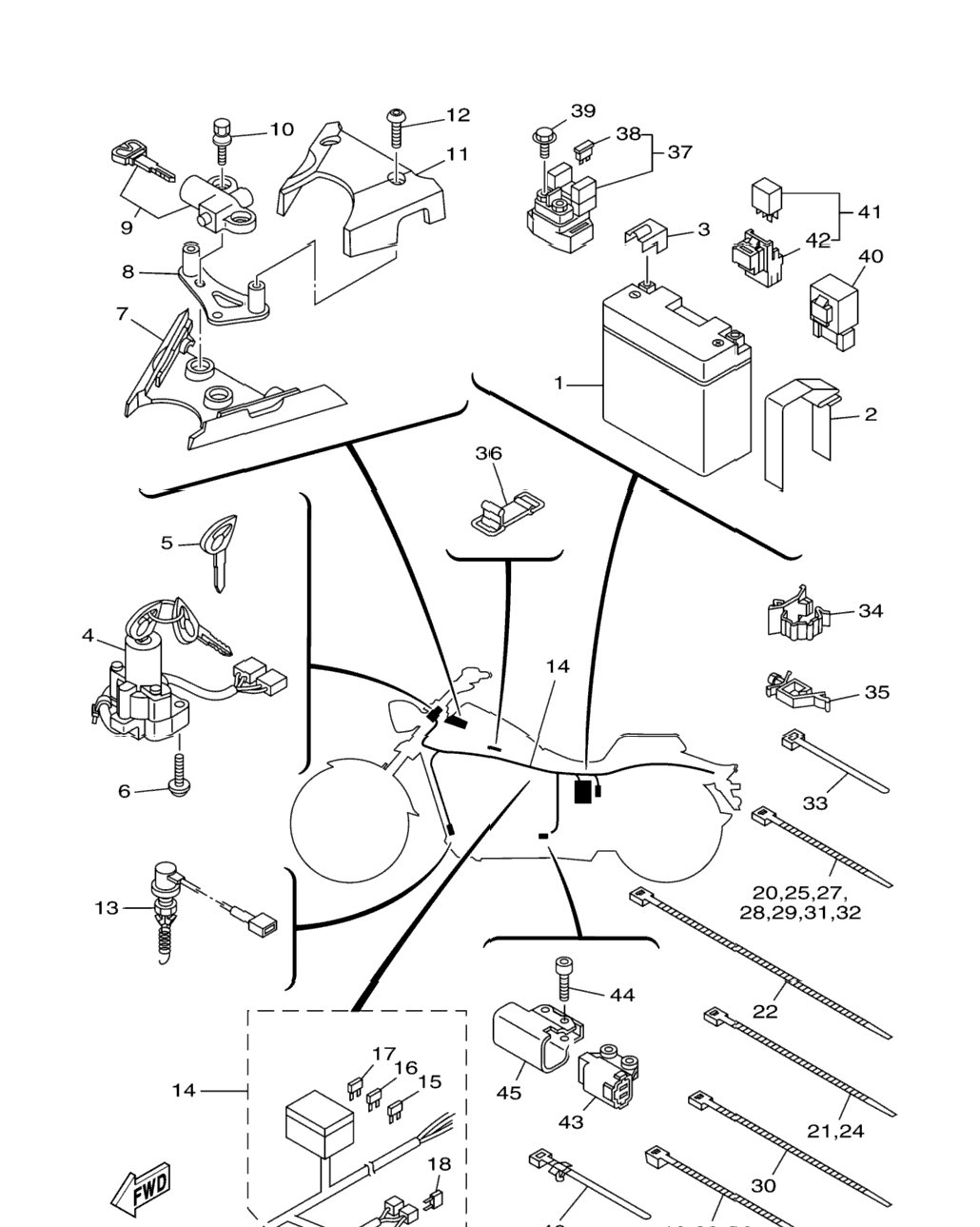

| 1 | 5EA-82100-11-00 | Battery Assy (Gs Gt14b-4) | 1 шт. | — | |
|
| 2 | 4AS-82131-01-00 | Band, Battery | 1 шт. | — | |
|
| 3 | 1D7-82119-00-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 4 | 5C7-82510-10-00 | Main Switch Assy | 1 шт. | — | |
|
| 5 | 5PX-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 6 | 90111-06030-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 7 | 5C7-8252U-00-00 | Cover | 1 шт. | — | |
|
| 8 | 5C7-21158-00-00 | Bracket | 1 шт. | — | |
|
| 9 | 5C7-W2348-00-00 | Steering Lock Assy | 1 шт. | — | |
|
| 10 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
| 11 | 5C7-2848Y-00-00 | Cover, Lock | 1 шт. | — | |
|
| 12 | 90111-06010-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 13 | 5C7-82530-00-00 | Stop Switch Assy | 1 шт. | — | |
|
| 14 | 1US-82590-00-00 | Wire Harness Assy | 1 шт. | — | |
|
| 15 | 5JJ-82151-50-00 | . .Fuse (3A-Bl) | 3 шт. | — | |
|
| 16 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 3 шт. | — | |
|
| 17 | 5JJ-82151-20-00 | . .Fuse (20A-Bl) | 3 шт. | — | |
|
| 18 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 19 | 90464-55001-00 | Clamp | 1 шт. | — | |
|
| 20 | 1UA-82591-00-00 | Band | 3 шт. | — | |
|
| 21 | 3MA-82591-00-00 | Band | 2 шт. | — | |
|
| 22 | 90464-50003-00 | Clamp | 1 шт. | — | |
|
| 23 | 90464-55001-00 | Clamp | 1 шт. | — | |
|
| 24 | 3MA-82591-00-00 | Band | 2 шт. | — | |
|
| 25 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 26 | 90464-55001-00 | Clamp | 1 шт. | — | |
|
| 27 | 1UA-82591-00-00 | Band | 8 шт. | — | |
|
| 28 | 1UA-82591-00-00 | Band | 3 шт. | — | |
|
| 29 | 1UA-82591-00-00 | Band | 9 шт. | — | |
|
| 30 | 90464-80002-00 | Clamp | 1 шт. | — | |
|
| 31 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 32 | 1UA-82591-00-00 | Band | 2 шт. | — | |
|
| 33 | 90464-16061-00 | Clamp | 1 шт. | — | |
|
| 34 | 90464-20002-00 | Clamp | 2 шт. | — | |
|
| 35 | 90464-16021-00 | Clamp | 2 шт. | — | |
|
| 36 | 1KH-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 37 | 5JW-81940-02-00 | Starter Relay Assy (Rc19-032) | 1 шт. | — | |
|
| 38 | 36Y-82151-00-00 | . .Fuse (15A-Blue) | 2 шт. | — | |
|
| 39 | 95027-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 40 | 5VK-81950-30-00 | Relay Assy (5Vk-30) | 0 шт. | — | |
|
| 41 | 1TP-81950-00-00 | Relay Assy (1Tp-00) | 1 шт. | — | |
|
| 42 | 5EA-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 43 | 5VU-82576-01-00 | Sensor, Lean Angle | 0 шт. | — | |
|
| 44 | 90110-04003-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 45 | 5C7-82388-00-00 | Plate | 1 шт. | — | |
|
| 46 | 90464-34002-00 | Clamp | 2 шт. | — | |
|
