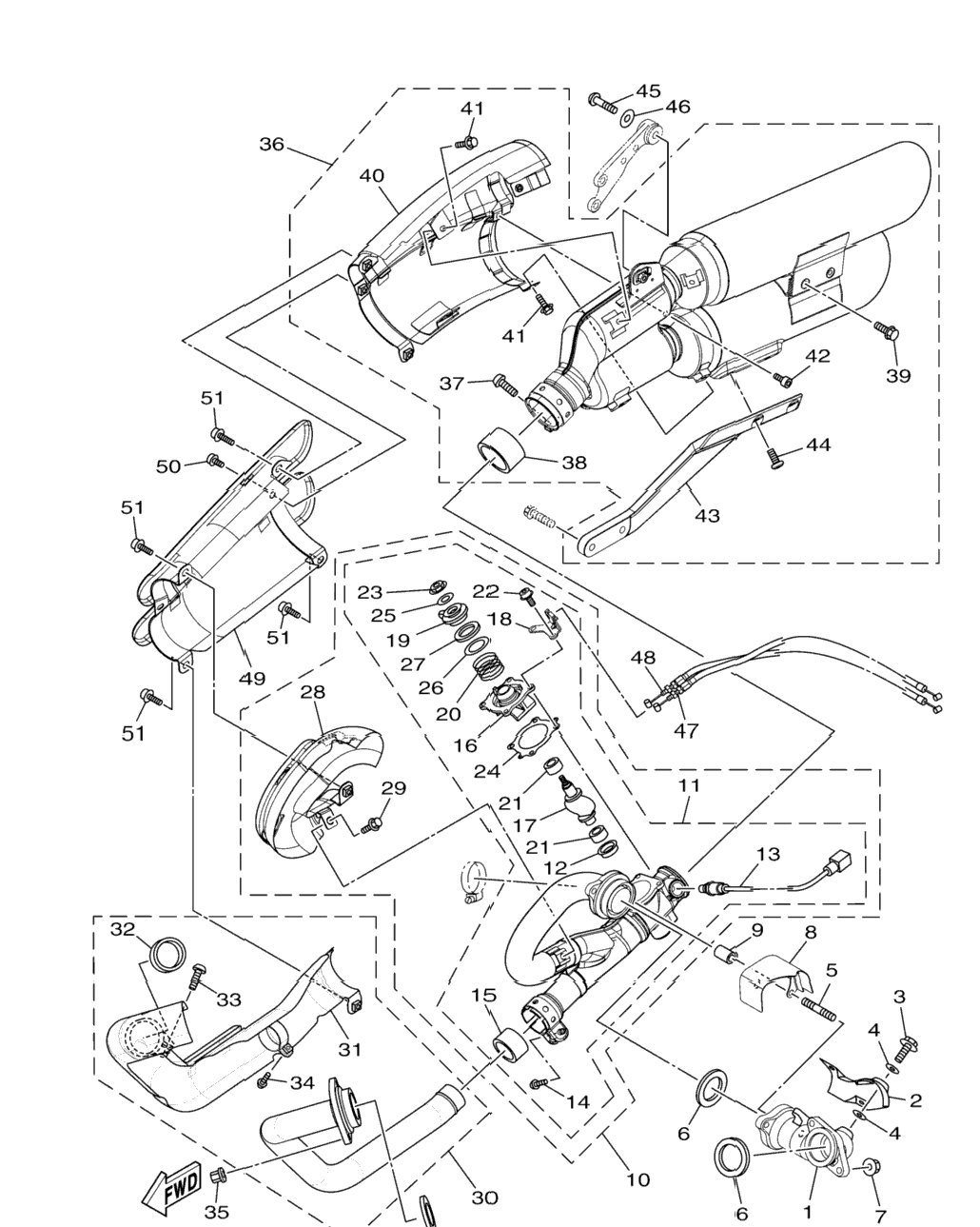

| 1 | 1D7-14615-00-00 | Joint, Exhaust 1 | 1 шт. | — | |
|
| 2 | 1D7-14628-00-00 | Protector, Exhaust Pipe | 1 шт. | — | |
|
| 3 | 95880-06012-00 | Bolt, Flange | 3 шт. | — | |
|
| 4 | 90201-05015-00 | Washer, Plate | 6 шт. | — | |
|
| 5 | 95617-08630-00 | .Bolt, Stud | 2 шт. | — | |
|
| 6 | 3EG-14613-00-00 | Gasket, Exhaust Pipe | 3 шт. | — | |
|
| 7 | 90185-08097-00 | Nut,Self-Locking | 2 шт. | — | |
|
| 8 | 1D7-14624-00-00 | Cover, Exhaust | 1 шт. | — | |
|
| 9 | 90179-08022-00 | Nut | 2 шт. | — | |
|
| 10 | 5C7-14610-01-00 | Exhaust Pipe Assy 1 | 1 шт. | — | |
|
| 11 | 5C7-14611-01-00 | . .Pipe, Exhaust 1 | 1 шт. | — | |
|
| 12 | 5VY-14816-00-00 | . . ..Plug, Blind | 1 шт. | — | |
|
| 13 | 5C7-8592A-00-00 | . . ..Sensor, Oxygen | 1 шт. | — | |
|
| 14 | 92014-08035-00 | . . Bolt, Button Head | 1 шт. | — | |
|
| 15 | 5PX-14755-00-00 | . . .Gasket, Silencer | 1 шт. | — | |
|
| 16 | 1D7-14811-01-00 | . . ..Housing | 1 шт. | — | |
|
| 17 | 1D7-14821-00-00 | . . ..Arm, Shaft (Valve) | 1 шт. | — | |
|
| 18 | 1D7-14849-00-00 | . . ..Bracket | 1 шт. | — | |
|
| 19 | 1D7-14865-01-00 | . . ..Pulley | 1 шт. | — | |
|
| 20 | 1D7-14856-00-00 | . . ..Spring | 1 шт. | — | |
|
| 21 | 5VY-14638-00-00 | . . .Collar | 2 шт. | — | |
|
| 22 | 90110-06025-00 | . . Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 23 | 90179-06063-00 | . . .Nut | 1 шт. | — | |
|
| 24 | 1D7-14643-00-00 | . . ..Gasket 3 | 1 шт. | — | |
|
| 25 | 92990-06200-00 | . . ..Washer, Plain | 1 шт. | — | |
|
| 26 | 5VY-14674-00-00 | . . .Valve, Plate | 1 шт. | — | |
|
| 27 | 5VY-14648-00-00 | . . .Collar 2 | 1 шт. | — | |
|
| 28 | 5C7-14718-00-00 | . .Protector, Muffler 1 | 1 шт. | — | |
|
| 29 | 95024-06010-00 | . .Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 30 | 5C7-14620-00-00 | Exhaust Pipe Assy 2 | 1 шт. | — | |
|
| 31 | 5C7-14728-00-00 | . .Protector, Muffler 2 | 1 шт. | — | |
|
| 32 | 5C7-14714-00-00 | . .Gasket, Muffler | 1 шт. | — | |
|
| 33 | 95024-08020-00 | . Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 34 | 92014-06016-00 | . Bolt, Button Head | 1 шт. | — | |
|
| 35 | 90179-08410-00 | Nut | 2 шт. | — | |
|
| 36 | 5C7-14710-30-00 | Muffler Assy 1 | 1 шт. | — | |
|
| 37 | 92014-08035-00 | . Bolt, Button Head | 1 шт. | — | |
|
| 38 | 5YU-14714-00-00 | . .Gasket, Muffler | 1 шт. | — | |
|
| 39 | 95024-08020-00 | . Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 40 | 5C7-14738-00-00 | . .Protector, Muffler 3 | 1 шт. | — | |
|
| 41 | 95024-06010-00 | . .Bolt, Flange (Small Head) | 4 шт. | — | |
|
| 42 | 91314-06010-00 | . Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 43 | 5C7-14772-00-00 | . .Stay, Muffler 2 | 1 шт. | — | |
|
| 44 | 90111-08029-00 | . Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 45 | 90110-08221-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 46 | 90201-087G2-00 | Washer, Plate | 1 шт. | — | |
|
| 47 | 5C7-1133E-00-00 | Cable, Pulley 1 | 1 шт. | — | |
|
| 48 | 5C7-1133F-00-00 | Cable, Pulley 2 | 1 шт. | — | |
|
| 49 | 5C7-14627-00-00 | Cover, Exhaust | 1 шт. | — | |
|
| 50 | 90110-06288-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 51 | 90110-06301-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
