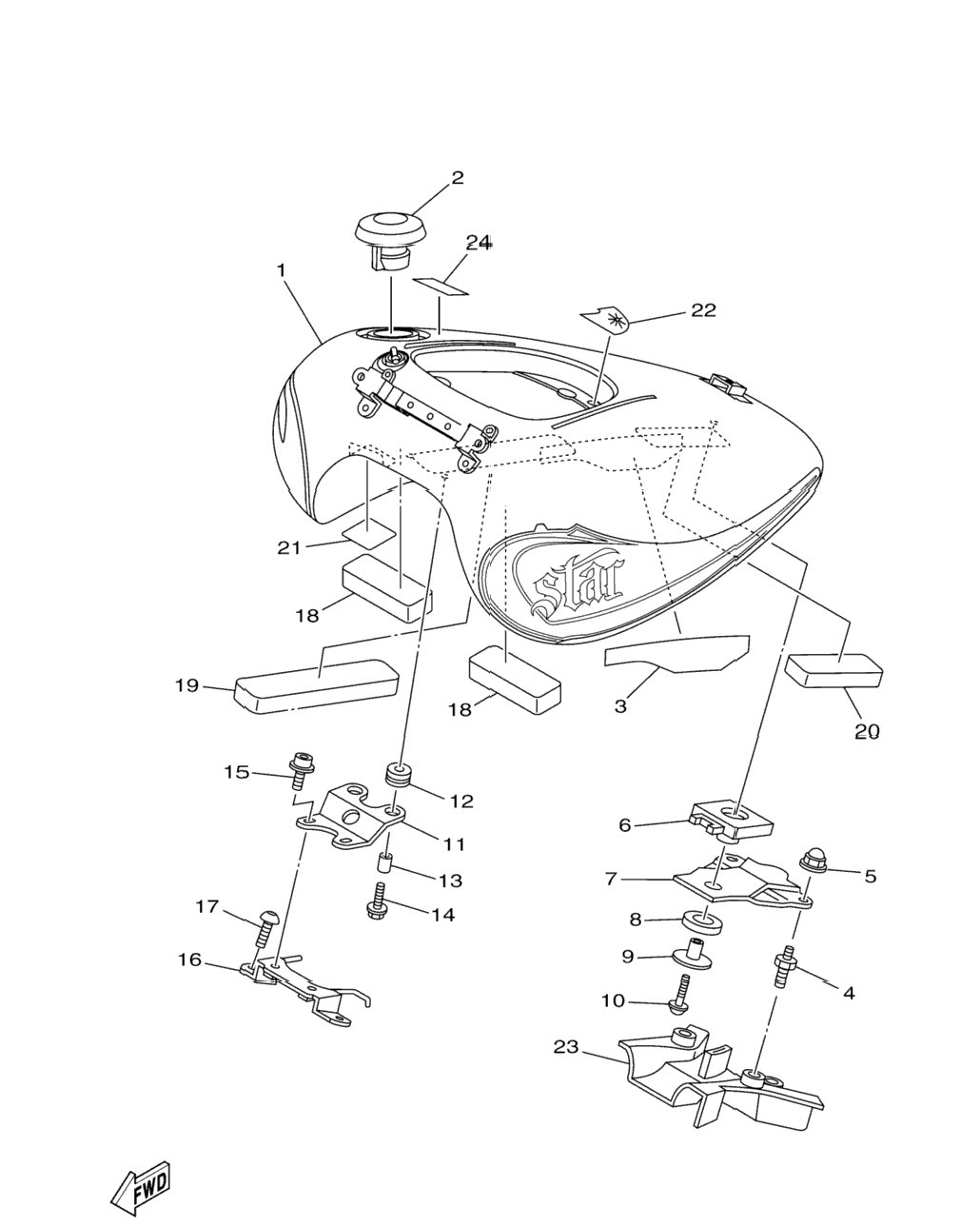

| 1 | 5C7-Y2410-00-W9 | Fuel Tank Comp FOR DRMK | 1 шт. | — | |
|
| 2 | 4NK-24602-20-00 | Cap Assy | 1 шт. | — | |
|
| 3 | 5C7-2413X-00-00 | Plate | 1 шт. | — | |
|
| 4 | 5PX-24176-01-00 | Bolt 1 | 2 шт. | — | |
|
| 5 | 90176-06055-00 | Nut, Crown | 2 шт. | — | |
|
| 6 | 1D7-24182-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 7 | 1D7-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 8 | 4TR-24183-00-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 9 | 90387-06177-00 | Collar | 1 шт. | — | |
|
| 10 | 92012-06025-00 | Bolt, Button Head | 1 шт. | — | |
|
| 11 | 5C7-24191-00-00 | Bracket, Fuel Tank 1 | 1 шт. | — | |
|
| 12 | 90480-15005-00 | Grommet | 2 шт. | — | |
|
| 13 | 90387-06068-00 | Collar | 2 шт. | — | |
|
| 14 | 90119-06264-00 | Bolt, With Washer | 2 шт. | — | |
|
| 15 | 90110-08052-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 16 | 5C7-24192-00-00 | Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 17 | 92012-08016-00 | Bolt, Button Head | 2 шт. | — | |
|
| 18 | 1D7-2414P-00-00 | Damper, Plate 5 | 2 шт. | — | |
|
| 19 | 1D7-2414N-00-00 | Damper, Plate 4 | 1 шт. | — | |
|
| 20 | 1D7-2414P-00-00 | Damper, Plate 5 | 1 шт. | — | |
|
| 21 | 5C7-2476U-00-00 | Protector 1 | 1 шт. | — | |
|
| 22 | 5C7-24145-00-00 | Damper, Side Cover | 1 шт. | — | |
|
| 23 | 1D7-24217-00-00 | Cover | 1 шт. | — | |
|
| 24 | 29P-2816R-00-00 | Label, Warning General Info | 1 шт. | — | |
|
